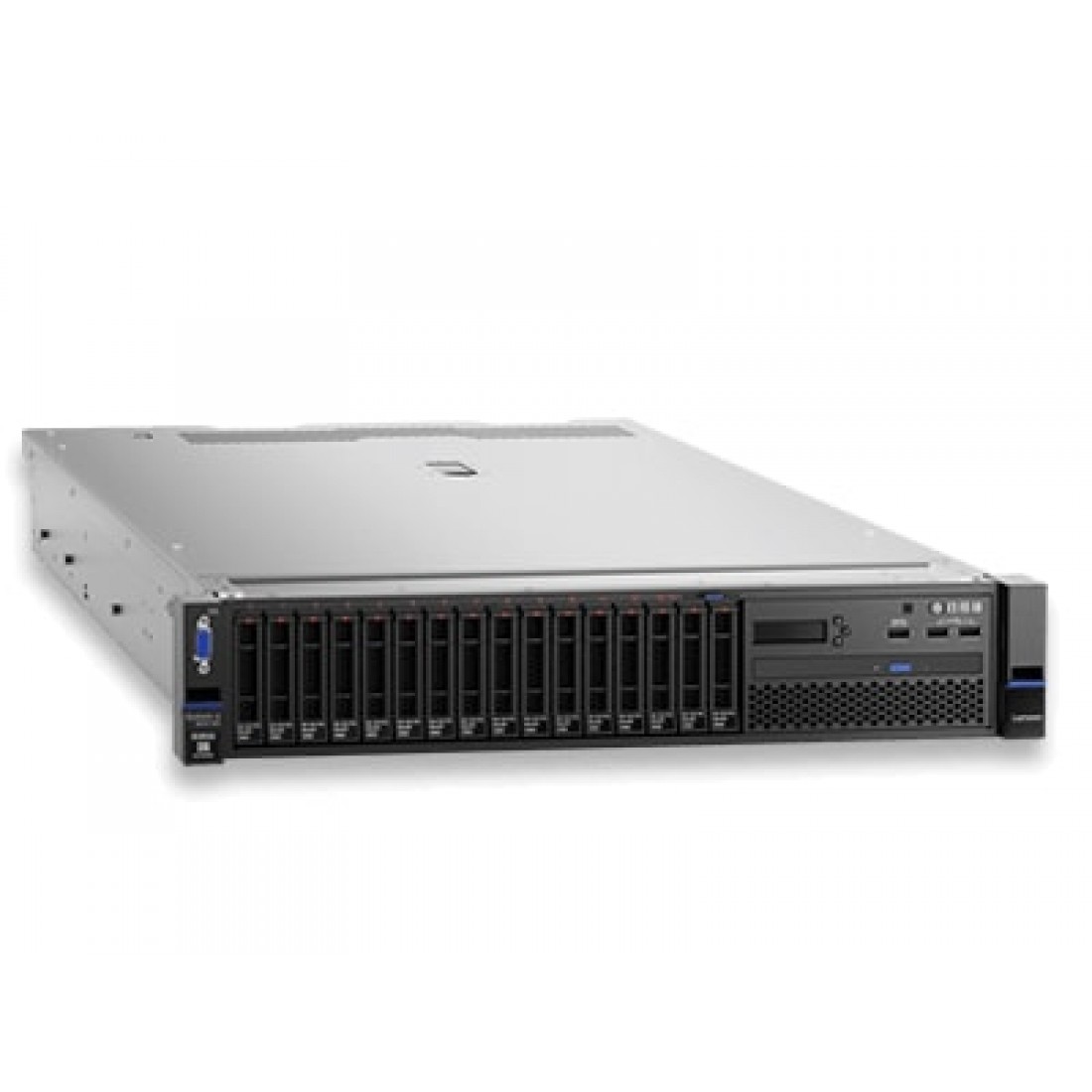

Lenovo System x3650 M5 Rack Server
Fast forward your business
2U rack server for diverse business-critical workloads, 24/7, with leadership reliability and stellar performance.
System x3650 M5
Versatile 2U 2-socket rack server runs 24/7
- 22% more cores to run more workloads
- Energy-efficient TruDDR4 Memory
- Flexible storage configurations
- Industry-leading security and reliability
Feature highlights
Tackle enterprise workloads with power, efficiency, and reliability
- Choose from flexible storage configurations for workload-optimized performance
- Leverage the massive capacity (up to 120TB) to run Big Data and storage-hungry workloads
- Reduce unplanned downtime and minimize costs
- Simplify server management with Lenovo XClarity
- Safeguard enterprise data with built-in Lenovo Trusted Platform Assurance plus optional self-encrypting drives and IBM Security Key Lifecycle Manager
- Gain superior performance with Intel Xeon E5-2600 v4 processors (up to 44 cores per server), end-to-end 12Gbps RAID support—devices and infrastructure—up to four RAID adapters, up to eight front-mounted NVMe PCIe SSDs and up to four GPUs
- Reduce data center costs with smart energy-efficient features, including extended operating temperature, 80 PLUS® Titanium power supplies (up to 96% efficiency), active/standby power supply modes, dual fan zone design, and TruDDR4 Memory (up to 45% lower energy use over DDR3), optional Lenovo XClarity Energy Manager
- Run more virtual machines and workloads with up to 22% more cores than previous generation
Power forward
With the powerful, versatile 2U two-socket System x3650 M5 rack server, you can run even more enterprise workloads, 24/7, and gain faster business insights. Integrated with up to two Intel® Xeon® processors E5-2600 v4 series (up to 44 cores per system), fast TruDDR4 2400MHz Memory, and massive storage capacity, the x3650 M5 fast forwards your business. You can select from an impressive array of storage configurations (up to 28 drive bays) that optimize diverse workloads from Cloud to Big Data.
Tech specs
Form Factor/Height: 2U Rack
Processor (max)/Cache (max): Up to two 22-core Intel® Xeon® processors E5-2600 v4 series /Up to 55MB per processor
Memory (max): Up to 1.5TB – 2400 MHz – with 64GB TruDDR4 Memory LRDIMMs; system supports RDIMM/LRDIMM
Disk Bays: Up to 24 front and 4 rear 2.5-inch HDDs/SSDs; or up to 12 3.5-inch and 2 rear 3.5-inch HDDs + 2 2.5-inch HDDs/SSDs; or up to 8 3.5-inch HDDs and 2 rear 3.5-inch or 2.5-inch HDDs/SSDs; up to 8 2.5-inch NVMe PCIe SSDs on 2.5-inch configurations
Maximum Internal Storage: Up to 120TB
RAID Support: 12Gbps dedicated slot for the first RAID; support for up to four RAID adapters
Power Supply (std/max): 1/2 redundant 550W AC, 750W AC, 900W AC, 1500W AC, 900W DC 80 PLUS® Platinum, or 750W, 1300W AC 80 PLUS Titanium
Hot-Swap Components: Power supplies, fan modules, and HDDs/SSDs
Network Interface: 4 × 1GbE (std.) and 1 x IMM; optional 10/40GbE ML2 or PCIe adapter; Trusted Platform Module built-in
Expansion Slots: 1 – 8 PCIe 3.0 slots (supports up to 4 GPUs and up to 1 x ML2) and 1 dedicated RAID slot
USB Ports/VGA Ports: Up to 3 x USB 2.0 front, 2 x USB 3.0 rear, 1 x USB 2.0 internal for hypervisor/1 front (optional) and 1 back
Energy Efficiency: ENERGY STAR® compliance (model dependent); up to 40ºC operating temp; 2 fan zones with up to 6 fans
Systems Management: Lenovo XClarity Administrator with mobile option; Lenovo XClarity Pro software bundle; Lenovo XClarity Energy Manager; IMM2.1
Operating Systems (OS) Supported: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere - (Optional USB Key or SD Media Adapter)
Limited Warranty: 3-year customer replaceable unit and on-site limited warranty, next business day 9x5; upgrades available
Specifications may vary depending upon region.
