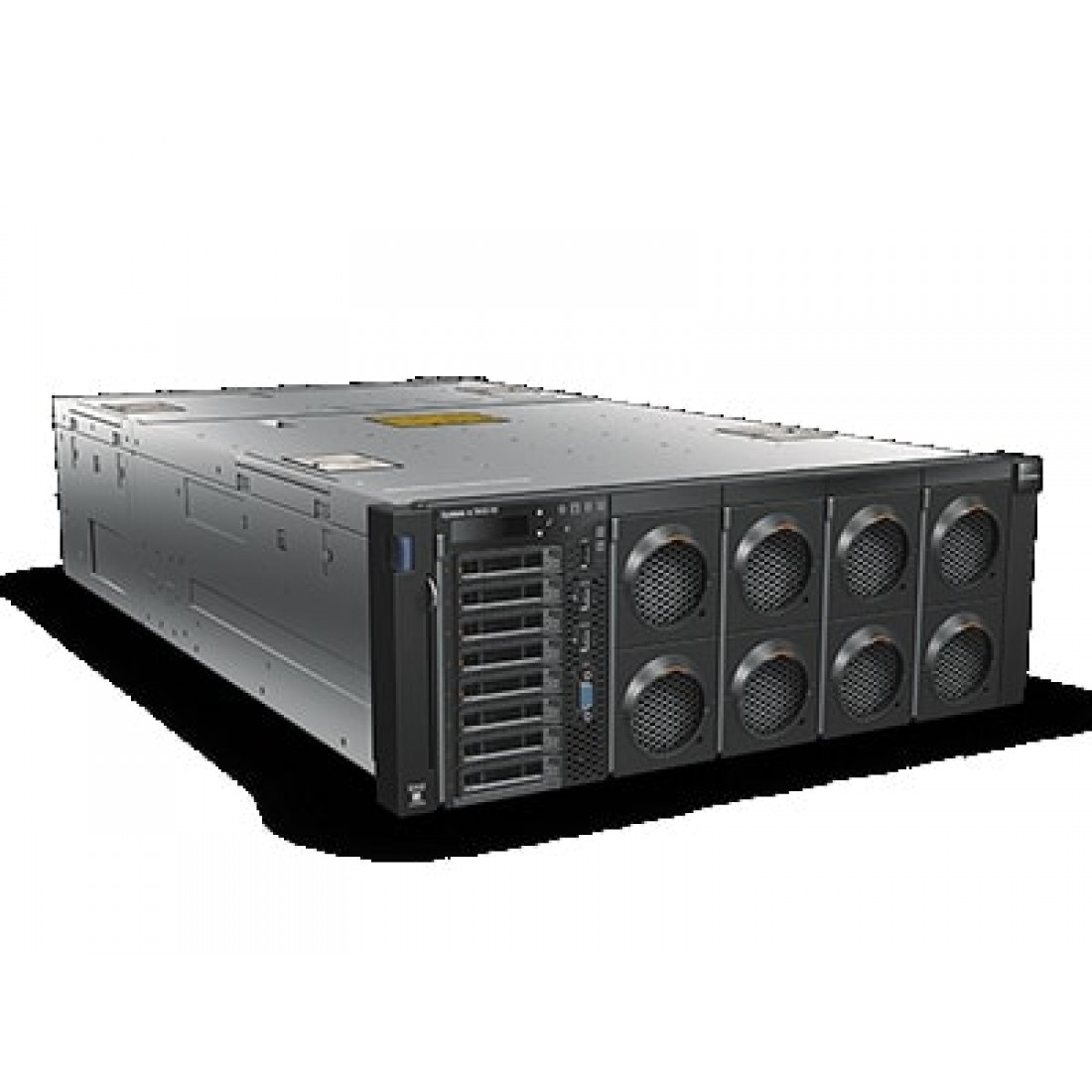

Lenovo System x3850 x6

Outstanding Compute Performance

System x3850 x6 provides maximum memory availability. Its superior storage performance and capacity meets the demands of today’s workloads. It offers seamless scalability to meet increased demands. Multiple generations of technology are integrated into the same chassis. The server has advanced RAS features.

System x3850 x6

The unique modular “book” design of the x3850 X6 accommodates multiple generations of processor and memory technology in the same chassis, delivering seamless scalability and maximum performance.

Access Real-time Data

• Fast application performance means immediate access to actionable information.
• Agile system design provides the ability to upgrade processor and memory technology to the next generation, reducing acquisition costs significantly.
• Resilient platforms maximize application uptime and promote easy integration in virtual environments.

Better Results

As businesses continue to expand into mobile and cloud arenas, mission-critical applications—and data center infrastructure—must do more. Superior IT solutions must easily scale up for better performance, manage large masses of data, and make crucial actionable insight available in real time. It’s a given that the volume of data you manage continues to grow, yet you remain constrained by a finite set of capital and operational resources. The Lenovo System x3850 X6, based on the sixth generation of Enterprise X-Architecture technology, helps you efficiently deliver better, more timely business results.

Fast Performance

X6 platforms combined with Intel® Xeon® processors E7-4800/8800 v4 series can produce up to 26% faster compute performance than the last -generation of X6 systems with last-generation processors.* The X6 portfolio delivers large application virtualization and decreases infrastructure costs and complexity. Now you can design faster analytics engines, rein in IT sprawl, and deliver information with high reliability. X6 mission-critical servers are fast, agile, and resilient.

* 26% improvement based on Intel preliminary projections in confidential documents.

Tech Specs

Form Factor/Height: Rack/4U

Processor (Max): Up to four Intel® Xeon® processors E7-4800/8800 v4 series, up to 3.2 GHz, up to 1866 MHz DDR4 memory access, 24 cores per processor

Memory (Max): Up to 6 TB, 96 DIMM slots supporting 64 GB LRDIMMs

Expansion Slots: Up to 11 PCIe; Gen3 (up to 11), Gen 2 (up to 2), up to five x16 slots; up to six full-length, full-height

Disk Bays (Total/Hot-Swap): Up to eight 2.5-inch Serial Attached SCSI (SAS) hard disk drives (HDDs) or SAS solid state drives (SSDs); or up to sixteen 1.8-inch eXFlash SSDs or up to 4 NVMe PCIe SSDs

Maximum Internal Storage: Up to 8 x 2.5-inch SAS/SATA HDDs or up to 8 x 2.5-inch SSDs or up to 16 x 1.8-inch eXFlash SSDs or up to four x 2.5-inch NVMe PCIe SSDs

Network interface: One ML2 socket; ML2 card choices include: 4 x 1GbE copper or 2 x 10GbE SFP+ or 2 x 10GbE 10BaseT; 4 x 10GbE; 2 x 40GbE/FDR VPI adapter; Dedicated 1GbE on-board management port

Power Supply: Up to four common 1400W or 900W AC or 4 x 750W DC

Hot-Swap Components: Half-length I/O Books, Full-length I/O Books, power supplies, fans, hard disk drives, SSDs

RAID Support: RAID 0, 1, 10 standard; optional RAID 5, 6, 50, 60

Systems Management: Lenovo XClarity, Alert on LAN 2, automatic server restart, ServerGuide, IMM2, light path diagnostics (independently powered), Wake on LAN, Dynamic System Analysis, Predictive Failure Analysis on storage, processors, adapter slots, VRMs, fans, power supplies and memory

Operating Systems Supported: Microsoft Windows Server, Red Hat Enterprise Linux Server, SUSE Linux Enterprise Server, VMware vSphere Hypervisor

Limited Warranty: 3-year customer replaceable unit and onsite service, next business day 9×5, service upgrades available
