iSeries LAN WAN, #2745 PCI TWO-LINE WAN IOA

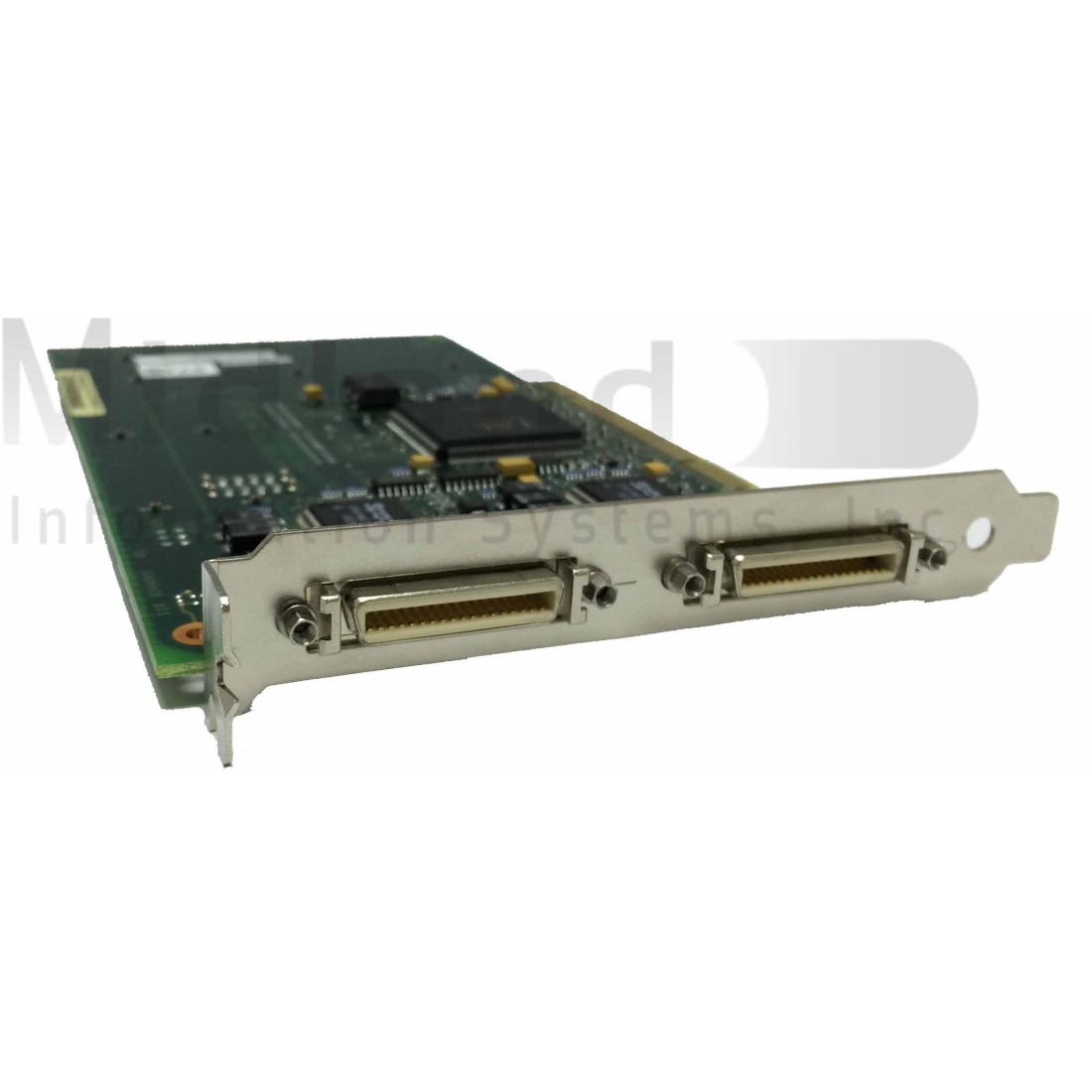

(#2745) PCI Two Line WAN IOA

(Feature #2745 Only available as REFURBISHED as of October 1, 2004)

#2745 supports up to two multiple protocol communications ports when one or two (in any combination) of the following cables are attached.

#0353 V.35 20-Ft PCI Cable

#0356 V.36 20-Ft PCI Cable

#0358 V.36 150-Ft PCI Cable

#0359 X.21 20-Ft PCI Cable

#0367 Operations Console PCI Cable

#2745 can be ordered with either one or two cables. #0367 can be ordered on the #2745 to serve as a console for a secondary partition only when Logical Partitioning is implemented.

PCI card slots required:

Low-speed slot only in 503X Migration Tower I or in a #9364/#5064 System Unit Expansion with #9329.

High-or low-speed slot in the #5064/#9364 with #9330, or in the #5065 or #5066.

Supported on the following systems: 170, 250, 600, 620, 640, 650, 720, 730, 740, 810, 820, 825, 830, 840, 870, 890, S10, S20, S30, S40
