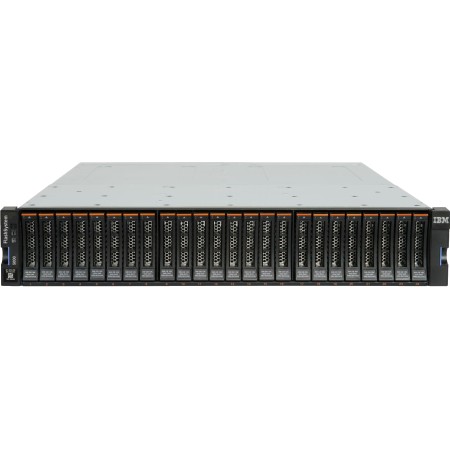

IBM 5100 FS5035 2072-3N2 2072-3N4 FlashSystem Storage
The new IBM 5100 FlashSystem 5035 2072-3N2 and 2072-3N4 models are an entry level enterprise flash storage systems delivering up to 550 TB per 2U enclosure, 12 GB/s bandwidth, 70 microseconds latency, 1.2 million IOPS response times and includes IBM Spectrum Virtualize software. The IBM FlashSystem have the highest customer satisfaction rating in the industry in 2022 in the Enterprise Class Flash Storage category according to TrustRadius. The IBM 5035 2072-3N2 and2072-3N4 FlashSystems are among IBM's most affordable flash storage offerings, and are delivered without compromising performance or sacrificing features. Small business can now take advantage of the most advanced and secure flash storage systems on the market, and achieve the same benefits as the largest data centers. The all new IBM 5100 FlashSystem 5035 model 2072-3N2 and 2072-3N4 delivers extreme performance options at an affordable price. View the IBM FS5035 peformance specifications below, or detailed benchmarks on the IBM 5100 FlashSystem product page or view the IBM FlashSystem comparison page for help sizing the correct IBM Flash Storage solution for your business.
IBM FlashSystem 5100 5035 2072-3N2 2072-3N4 Flash Storage Maximums and Specifications:
Max bandwidth: 12 GB/s throughput
Max Latency/IOPS Response times: 70 microseconds, 1.2 million IOPs
Cache per enclosure: 32GB or 64GB
Max capacity per 2U enclosure: 550 TBs
Max Drives per system: 504/1,008 for 32PB
Controller: Single or Dual (Active/Active)
Scale up to 10 standard expansion enclosures per controller or 4 high-density expansion enclosures per controller
Software: IBM Storage Insights and IBM Spectrum Virtualize, which includes deduplication, compression, thin provisioning, distributed RAID arrays, SCSI Unmap, IBM HyperSwap (high-availability solution), IBM Easy Tier (automatic and dynamic data tiering), encryption of internal and external virtualized storage, IBM FlashCopy (snapshot), remote data replication, one-way data migration and Dual-system clustering.
Max front-end host ports: 8 ports plus 4 on-board ports
Host interfaces: 1 Gb iSCSI, 10 Gb iSCSI, 12 Gb/s SAS, 25 Gb/s iSCSI (iWARP or RoCE), 16 Gb/s Fibre Channel
Flash SFF drives: 800 GB, 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB, and 30.72 TB
10K SFF disk drives: 1.2 TB, 1.8 TB, and 2.4 TB
10K LFF disk drives: 1.2 TB, 1.8 TB, and 2.4 TB
7200 LFF Nearline disk drives: 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB, and 18 TB
Physical Dimensions: Heights is 3.4 in. (8.7 cm) | Width is 19 in. (48.3 cm) | Depth is 21.9 in. (55.6 cm) | Weight is 55-62 lbs (fully configured depending on drives)
Warranty: Three-year with 9 to 5 nextbusiness-day response (upgradeable)
