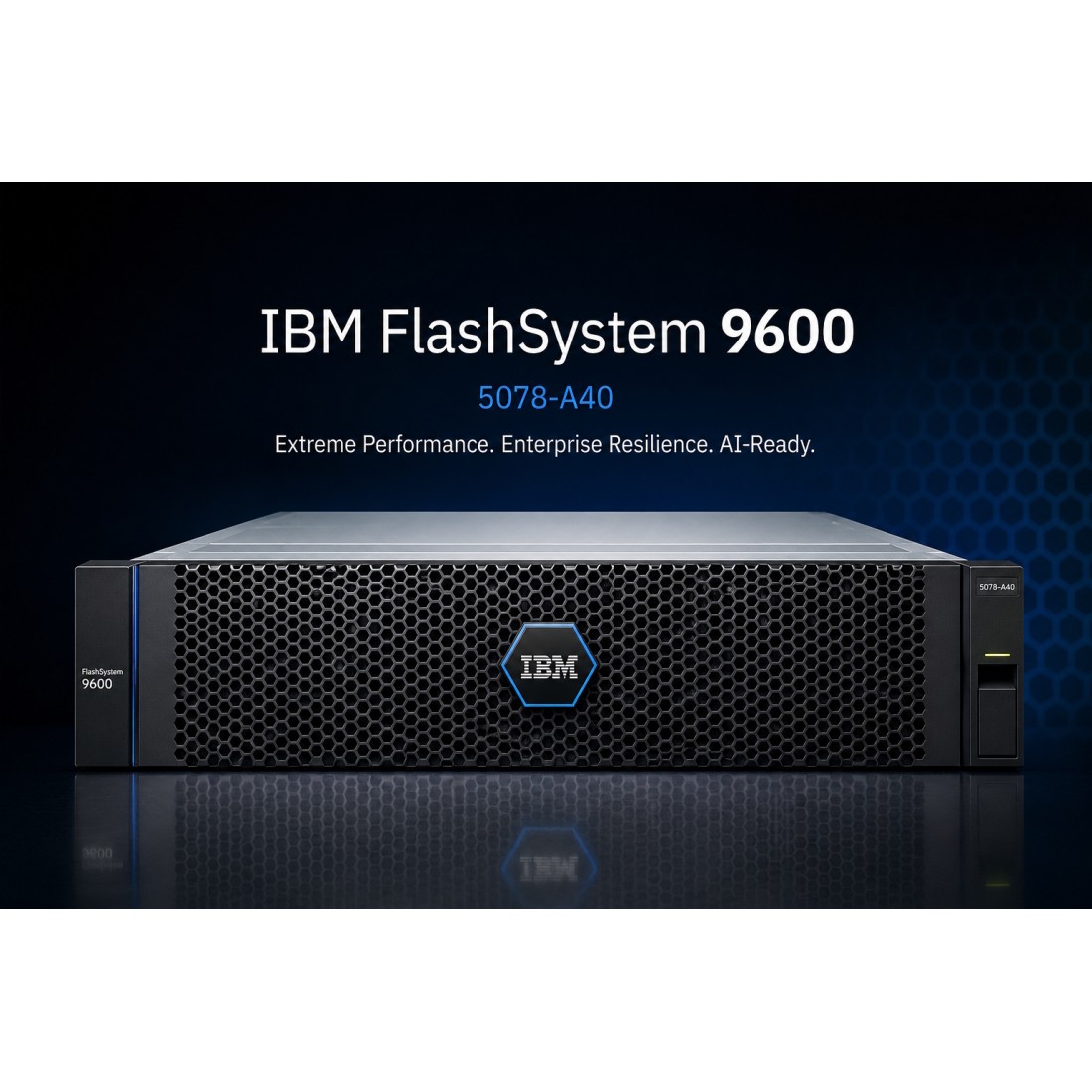

IBM 9600 FlashSystem 5078-A40 03LG971

IBM FlashSystem 9600 Machine Type 5078-A40 is IBM's highest-performance enterprise storage platform, engineered for organizations that demand extreme speed, continuous availability, and uncompromising cyber resilience. The IBM 9600 FlashSystem 5078-A40 can be purchased as a complete custom configured system, and the Control Enclosure has 03LG971 part number. The IBM 9600 FlashSystem 5078 is built on a modern 2U all-NVMe architecture, and combines IBM FlashCore technology with IBM Storage Virtualize to deliver exceptional performance, intelligent automation, and seamless scalability for today's most demanding applications. Designed for large enterprises, cloud providers, and AI-driven environments, the IBM 9600 FlashSystem consolidates mission-critical workloads onto a single storage platform while simplifying administration and reducing operational costs.

Enterprise Performance Without Compromise
Whether supporting thousands of virtual machines or powering high-volume transactional databases, the FlashSystem 9600 delivers the performance required for modern enterprise computing. The IBM FlashSystem 9600 5078-A40 is IBM's flagship enterprise NVMe storage array, engineered for the largest and most demanding business-critical workloads. It combines ultra-low latency, high throughput, AI-assisted management, integrated cyber resilience, and extreme scalability in a compact 2U platform. Built on the IBM Storage Virtualize software stack, the IBM 9600 FlashSystem is designed to consolidate large storage environments while simplifying management across on-premises and hybrid cloud infrastructures.

Key performance specifications include:

• Up to 6.3 million IOPS
• Up to 86 GB/s of read bandwidth
• Under 50 microsecond Response Times
• Up to 11.8 PB of effective capacity in a single 2U enclosure
• Up to 377 PB effective capacity in a FlashSystem Grid
• Support for 32 NVMe FlashCore Modules or enterprise NVMe SSDs
• Memory configurations from 1.5 TB to 3 TB
• Ultra-low latency for real-time applications and AI workloads
• 64 GB FC or NVMe/FC, 32 GB FC or NVMe/FC, 100/40 GB iSCSI or NVMe/TCP, 25/10 GB iSCSI or NVMe/TCP
• 32 Maximum I/O Ports
• 5:11 Data Reduction Gaurantee

Storage Supported:
IBM ADSJ 6.6TB Small FlashCore Module 5 03PM128
IBM ADSK 13.2TB Medium FlashCore Module 5 03PM131
IBM ADSL 26.4TB Large FlashCore Module 5 03PM134
IBM ADSM 52.8TB XL FlashCore Module 5 03PM137
IBM ADSN 105.6TB XXL FlashCore Module 5 03PM220
IBM ADTH 1.92TB NVMe Flash Drive 03NK549
IBM ADTJ 3.84TB NVMe Flash Drive 03NK550
IBM ADTK 7.68TB NVMe Flash Drive 03NK551

Built for Business-Critical Applications
The FlashSystem 9600 is ideal for organizations running applications where performance, reliability, and availability are essential.

Typical workloads include:

• IBM Power Systems
• Oracle Database
• Microsoft SQL Server
• IBM Db2
• SAP HANA
• VMware and Hyper-V virtualization
• Artificial Intelligence and Machine Learning
• Financial transaction processing
• Healthcare information systems
• Government and public sector applications
• Enterprise resource planning (ERP)

Its dual active-active controller architecture ensures continuous data access during planned maintenance or unexpected hardware failures, helping organizations achieve maximum uptime.

Intelligent Data Management
Every FlashSystem 9600 includes IBM Storage Virtualize, providing advanced enterprise storage services without requiring separate software platforms.

Key capabilities include:

• Storage virtualization
• Thin provisioning
• Inline compression and deduplication
• Remote replication
• Snapshots and cloning
• Transparent data migration
• Policy-based disaster recovery
• Non-disruptive hardware upgrades
• Multi-system management through IBM FlashSystem Grid

Because every modern IBM FlashSystem platform shares the same software foundation, organizations can scale storage or migrate data without changing management tools or operational procedures.

Integrated Cyber Resilience
Modern ransomware attacks require more than traditional backups. The FlashSystem 9600 incorporates multiple layers of cyber protection directly into the storage platform.

Security features include:

• AI-powered ransomware detection
• IBM FlashCore Module hardware analytics
• Immutable Safeguarded Copy snapshots
• IBM Storage Defender integration
• End-to-end encryption
• AI-driven monitoring through IBM Storage Insights
• Secure firmware validation

These capabilities help organizations detect threats quickly while enabling rapid recovery of business-critical data.

Ready for AI and Hybrid Cloud
The FlashSystem 9600 is designed to support next-generation workloads, including AI model training, analytics, hybrid cloud infrastructure, and containerized applications. Through IBM FlashSystem Grid, multiple storage systems can operate as a single intelligent storage infrastructure, allowing organizations to expand capacity, balance workloads, and migrate data without application downtime.

Why Choose IBM FlashSystem 9600?
Organizations choose the IBM FlashSystem 9600 because it delivers:

• Enterprise-class NVMe performance
• Massive scalability in a compact 2U footprint
• AI-assisted storage management
• Advanced ransomware protection
• Simplified storage administration
• Non-disruptive upgrades and migrations
• Investment protection through IBM Storage Virtualize
• Support for today's most demanding enterprise and AI workloads

Whether modernizing an existing data center, consolidating multiple storage arrays, or building a resilient hybrid cloud infrastructure, the IBM FlashSystem 9600 (5078-A40) provides the performance, intelligence, and availability needed to keep business-critical applications running at peak efficiency.

The IBM 9600 5078-A40 FlashSystem can be configured with following features and components of which can aslo be purchased separately as parts:
Enclosure for IBM 9600 FlashSystem 5078-A40 03LG971
Node canister 03MT852
128 GB memory module 078P8006
IBM ADSJ 6.6TB Small FlashCore Module 5 03PM128
IBM ADSK 13.2TB Medium FlashCore Module 5 03PM131
IBM ADSL 26.4TB Large FlashCore Module 5 03PM134
IBM ADSM 52.8TB XL FlashCore Module 5 03PM137
IBM ADSN 105.6TB XXL FlashCore Module 5 03PM220
IBM ADTH 1.92TB NVMe Flash Drive 03NK549
IBM ADTJ 3.84TB NVMe Flash Drive 03NK550
IBM ADTK 7.68TB NVMe Flash Drive 03NK551
100 GbE QSFP28 SR4 01FT706
32 Gb FC SW SFP+ transceiver 02AN347 078P5240
10 GbE SW SFP+ transceivers 031P1549
25 GbE SW SFP28 transceivers 03GH278 03GH316 78P4998
32 Gb FC LW SFP+ transceiver 03GU846
Quad-port 32 Gbps FC adapter 03JK177
Quad-port 64 Gbps FC adapter 03JK911
Dual-port 40 Gbps or 100 Gbps Ethernet adapter 03JN309
Quad-port 25 Gbps or 10 Gbps Ethernet adapter 03NK184
10 GbE SFP+ RJ45 transceivers 03JK732 03FP488
40 GbE QSFP28 transceivers 03PM465
64 Gb FC SW SFP+ transceiver 078P7709 078P7742
100 GbE QSFP28 transceivers 78P7701 78P7786
Power supply unit PSU 03NK500
CR2032 coin cell 00RY543
Node canister battery 03NK504
Fan module 3LG975
1 m OM3 Fiber Cable LC 45D4773
5 m OM3 Fiber Cable LC 45D4774
10 m OM3 Fiber Cable LC 41V2120
25m OM3 Fiber Cable LC 15R8848
1T Drive slot filler 03NK571
2T Drive slot filler 03NK572
Adapter slot filler 03PM355
Rails 03LG977
Left ear board enclosure status LEDs 03LG979
Bezel 03LG980
Cable-management arm CMA 03NK848
Power cord - C13-I/C20 39M5392
Power cord - C13-E/C14 39M5508
