ELDT IBM Linux 146GB 15k RPM SAS SFF-3 Disk Drive ELDT IBM 59FD 146GB 15k RPM SAS SFF-3 Disk Drive for Linux Power Servers IBM ELDT 146 GB 2.5-inch S.. Product #: IBM-ELDT-59FD

IBM 59FD 00FX874 00FX876 49Y7432 00FX870 00FX867

Brand:
Model Number: IBM-ELDT-59FD

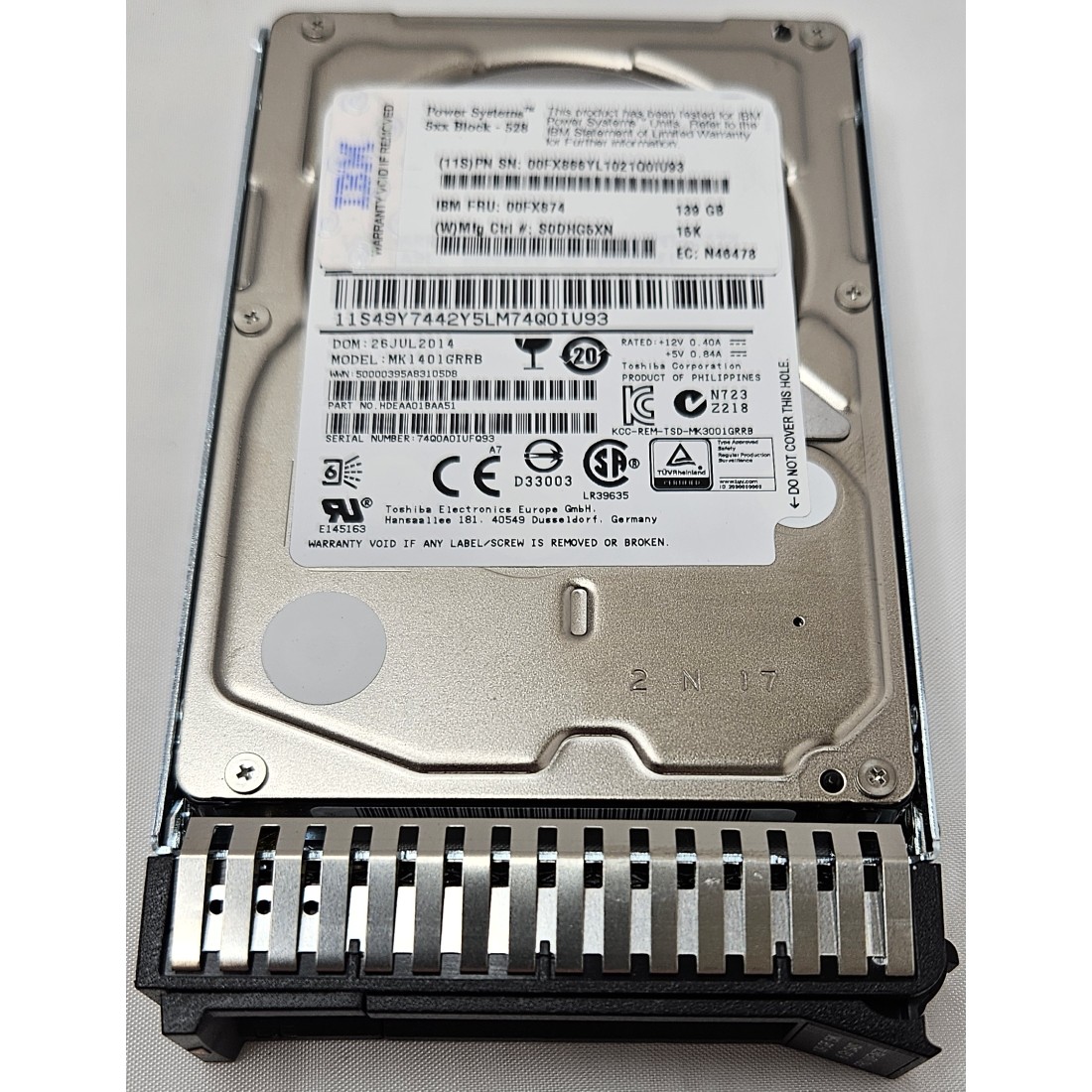

ELDT IBM 59FD 146GB 15k RPM SAS SFF-3 Disk Drive for Linux Power Servers

IBM ELDT 146 GB 2.5-inch Small Form Factor (SFF) 15k rpm SAS 59FD disk drive has a Gen 3 carrier tray and is supported in SFF-3 SAS bays of an IBM Power Server with Linux OS. The 59FD Disk is formatted for 512 byte sectors, but can be reformatted to 528 byte sectors, providing 139 GB capacity. The 59FD Disk Drive may have any of the following part numbers 00FX874 00FX876 49Y7432 00FX870 00FX867.

The IBM 59FD cannot be used in EXP24S SFF Gen2-bay Drawer because of physical difference of carrier tray. The IBM 59FD 146 GB Disk Drive requires a SFF-3 drive bay.

OS level required: IBM Red Hat Enterprise Linux or SUSE Linux Enterprise Server. Refer to Software Requirements for specific OS levels supported.
