AS400 IBM 9406 LAN WAN, #5701 PCI 1Gbps Ethernet UTP IOA

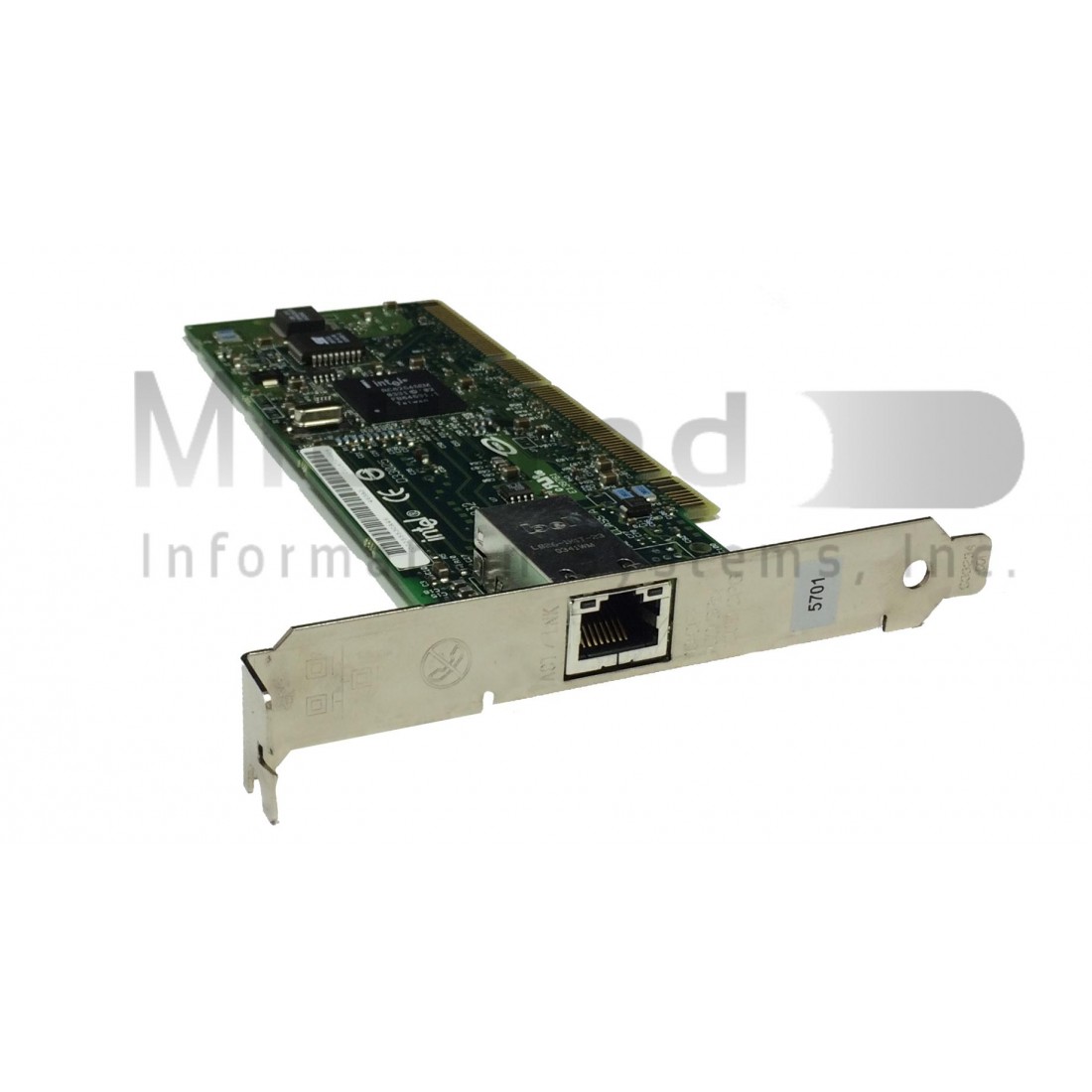

#5701 PCI 1Gbps Ethernet UTP IOA

#5701 provides PCI-X attachment to IEEE standard 802.3ab high-speed (1Gbps) Ethernet LANs. It can also be used to connect to existing 10Mbps or 100Mbps Ethernet LANs using switches with 10/100/ 1000Mbps ports. The adapter supports a UTP CAT 5 media interface, and only TCP/IP.

If #5701 is used with a #2792 or #2892, then one specify code #0226, 1Gbps Ethernet Specify, must be ordered for each #5701.

#6800 and #5700 are physically the same adapter card but have different feature numbers to indicate to IBM configurator tools that an IOP is or is not being used in the configuration.

#5701, #0621 and #6801 are physically the same adapter card but have different feature numbers to indicate to IBM configurator tools that an IOP is or is not being used in the configuration.

• Attributes provided: 1000/100/10 Ethernet LAN Interface
• Attributes required: One short or long, 3.3V or 5V PCI-X slot
• For 9409-M50: (#5701)
  • Minimum required: 0
  • Maximum allowed: 94 (Initial order maximum: 94)
  • OS level required: i5/OS V5R4 with V5R4M5 Machine Code, or later
  • Initial Order/MES/Both/Supported: Supported
  • CSU: Yes

The 10/100/1000 Base-TX Ethernet PCI-X adapter is a high-performance, highly integrated, universal Ethernet LAN adapter for PCI-X and PCI systems. The adapter provides 10/100/1000 Mbps connectivity using standard unshielded twisted pair (UTP) cable for distances of up to 100 meters. It conforms to IEEE 802.3ab 1000 Base-T standard. The adapter is designed to run in standard PCI-X V1.0a compliant systems with 32 or 64-bit PCI-X Bus Master slots at 66 or 133 MHz, and in PCI 2.2 compliant systems with 32 or 64-bit PCI bus master slots at 33 or 66 MHz. The adapter runs on 5.0 V and 3.3 V aux.

10/100/1000 Base-TX Ethernet PCI-X adapter specifications

FRU number:

    5701 is 03N6524* or 00P6130**
    1979 is 03N6525* or 80P6445**
    1959 is 03N6526* or 03N4700**
* Designed to comply with RoHS requirement.
** Not designed to comply with the RoHS requirement.

I/O bus architecture: PCI 2.2 and PCI-X V1.0a compliant

Busmaster: Yes

Maximum number: For system-specific adapter placement information, see PCI placement in the system unit or expansion unit in the PCI adapter topic.

Adapter size: PCI short form

Connector information: RJ-45

Wrap plug: RJ-45, part number 03N6070* or 00G2380**

Blind swap cassette, spacer bracket FRU number: 10N8972

For use with generation 2.5 cassettes (16R0091), or earlier

Cables: For best performance, use cables that meet Cat 5e cabling standards, or higher. Customers supply the cables.

Only available as refurbished as of May 29, 2009.
