5877-8202 - IBM Power7 E4B, 12X I/O Drawer PCIe, No Disk

IBM Power7 8202-E4B (#5877) - 12X I/O Drawer PCIe, No Disk

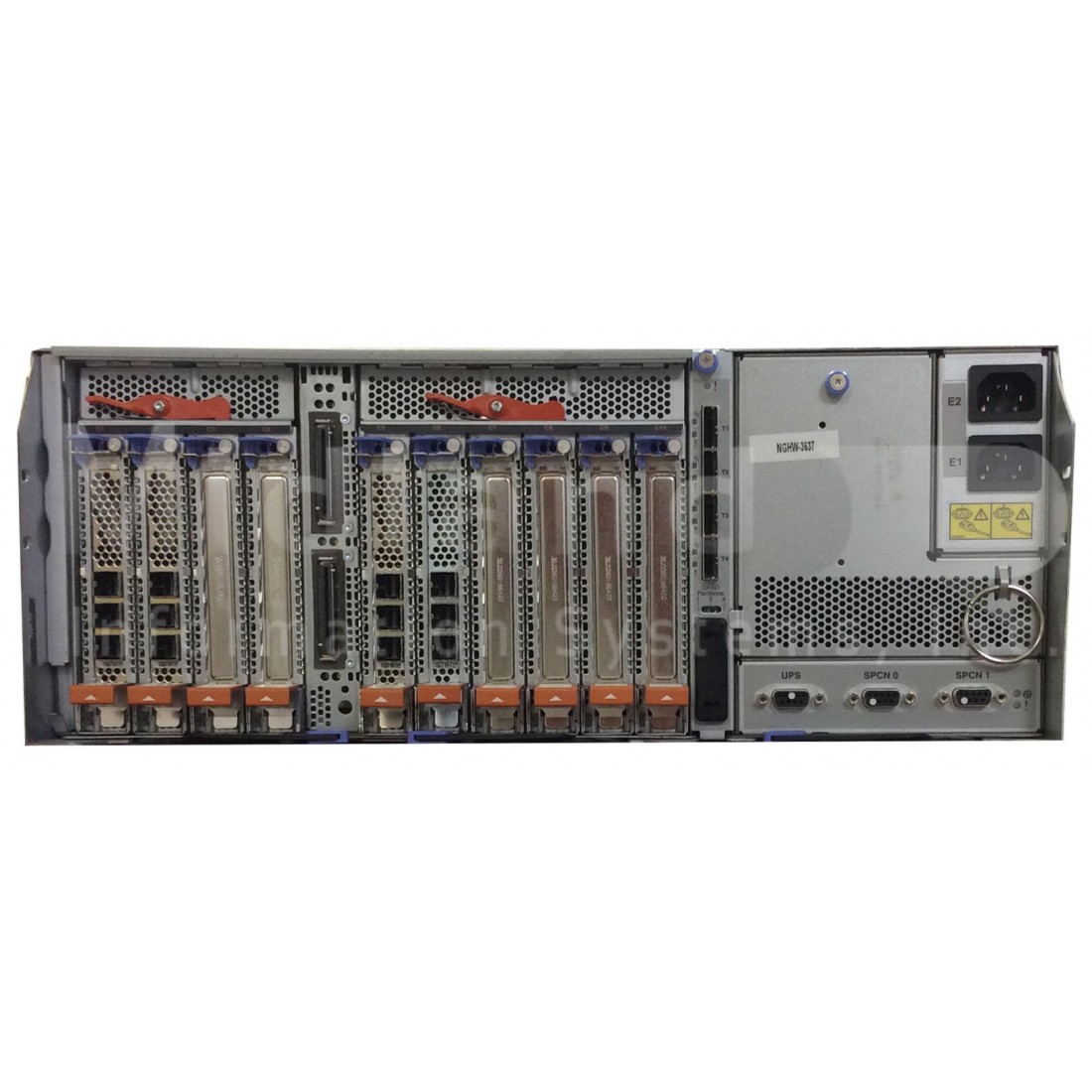

This feature provides a 4U high I/O drawer containing ten PCIe slots. This drawer attaches to the central electronics complex via 12X DDR cables (#1862, #1864 or #1865).

Attributes provided: 10 PCIe Slots

Attributes required: Available 12X connection ports.

For 8202-E4B: (#5877)

Minimum required: 0

Maximum allowed: 2 (Initial order maximum: 2)

OS level required:

AIX Version 5.3 supported

AIX Version 6.1 supported

AIX Version 7.1 supported

IBM i 6.1 supported

IBM i 7.1 supported

SUSE Linux supported

Red Hat Linux supported

Refer to Software Requirements for specific O/S levels supported

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
