5782-8202 - IBM Power7 E4B, PCI-X EXP24 Ctl-1.5GB No IOP

IBM Power7 8202-E4B (#5782) - PCI-X EXP24 Ctl-1.5GB No IOP

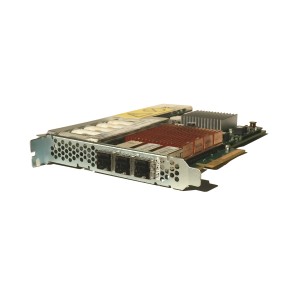

Provides an EXP24 disk controller with PCI-X DDR technology, a maximum of 1.5GB compressed write cache and a maximum 1.6GB compressed read cache. The controller supports RAID-5 and RAID-6 and mirroring is supported via IBM i. Embedded auxiliary write cache and concurrent battery maintenance are provided. The controller is implemented using two physical cards that are firmly connected and requires two adjacent PCI slots. It provides three Ultra320 SCSI ports/buses for the attachment of disk drives located in a #5786 TotalStorage EXP24 Disk Drawer or #5796 PCI-DDR 12X Expansion Drawer.

This feature includes a double-wide blind swap cassette in which the disk controller is placed. The cassette is required to locate the disk controller in a Power 570, 770, 780 system unit or #5790 I/ O drawer. #5782 indicates an IOP is not used.

Attributes provided: High-performance SCSI RAID controller in a double wide blind swap cassette.

Attributes required: Two adjacent PCI-X long card slots, in a blind swap capable system unit or expansion unit.

For 8202-E4B: (#5782)

Minimum required: 0

Maximum allowed: 8 (Initial order maximum: 0)

OS level required:

IBM i 6.1 supported

IBM i 7.1 supported

Refer to Software Requirements for specific O/S levels supported

Initial Order/MES/Both/Supported: Supported

CSU: Yes

Return parts MES: Does not apply
