Lenovo ThinkSystem SR950
Lenovo System x3950 x6
Lenovo Lenovo ThinkSystem SR850 Intelligently Designed for Value The ThinkSystem SR850 easily scales from 2 to 4 processors. The se.. Product #: SR-850

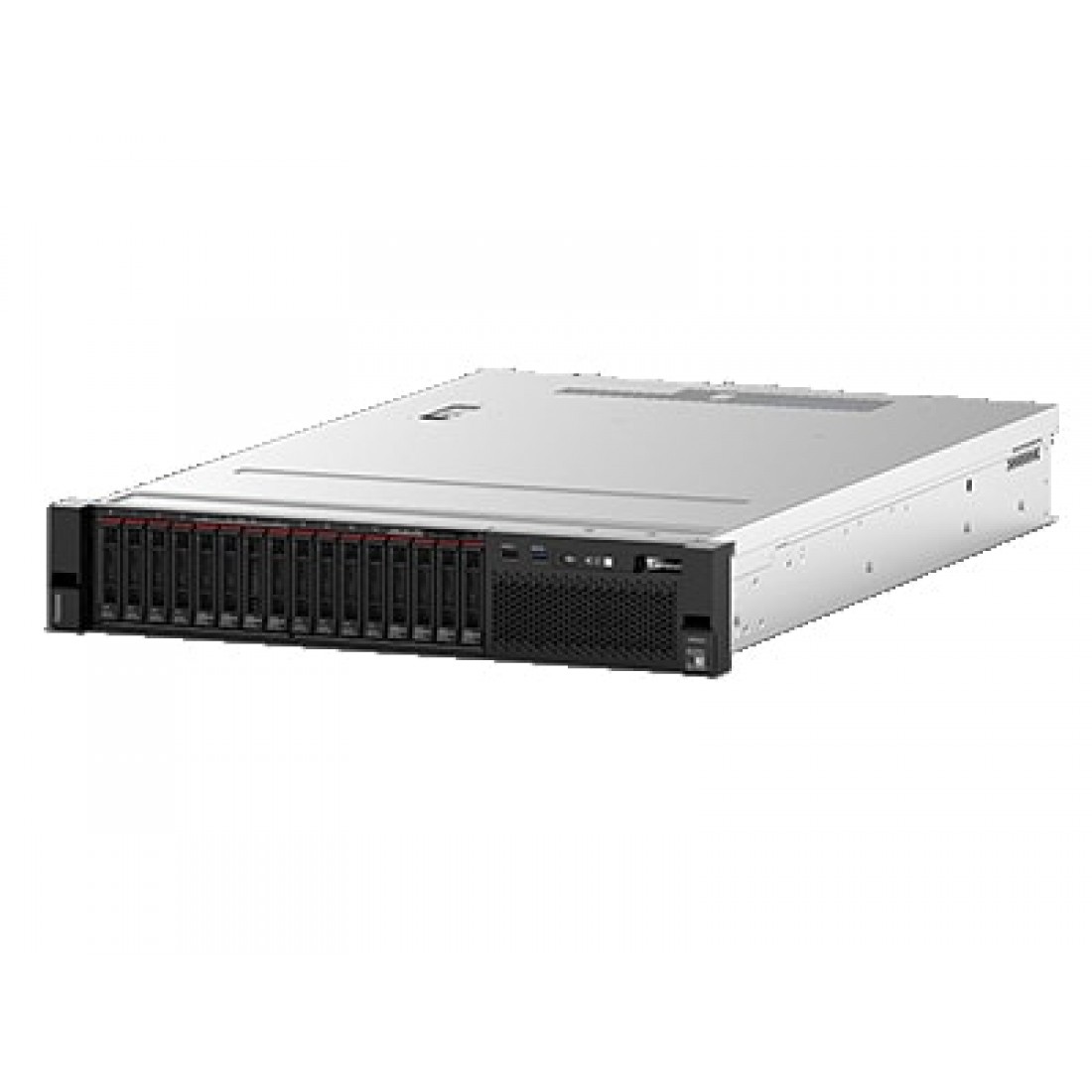

Lenovo ThinkSystem SR850

Brand: Lenovo
Model Number: SR-850

Intelligently Designed for Value

The ThinkSystem SR850 easily scales from 2 to 4 processors. The server has a large memory capacity and allows for flexible storage configurations. ThinkSystem SR850 is dependable and easy to manage with its advanced RAS features and XClarity Management.

ThinkSystem SR850

ThinkSystem SR850 is a fast, highly reliable 2 to 4-processor system with large memory and storage capacity, designed for high-growth workloads like databases and virtualization.

Cost-effective Availability and Scalability

  • The perfect balance of expandability and economics. Intelligently designed for value.
  • Designed for reliability and uptime, giving companies the confidence to run anything.
  • Engineered with the future in mind. Ready for tomorrow’s technologies.

Growth Is Inevitable

The Lenovo ThinkSystem SR850 is built to deliver the performance and reliability you require today, with the scalability and versatility you’ll need as you advance toward the “future-defined” data center.

The flexible 2U SR850 can scale from 2 to 4 powerful Intel® Xeon® processor Scalable family CPUs, with up to 233% more cores and 400% more memory than the previous-generation server*, achieving up to 76% faster performance. Built for standard workloads like general business applications and server consolidation, it can also accommodate high-growth areas such as databases and virtualization. The agile design of ThinkSystem SR850 provides rapid upgrades for processors and memory, and its large, flexible storage capacity helps you keep pace with data growth.

*Compared to Lenovo System x3750 M4.

Tech Specs

Form Factor/Height: 2U Rack Server

Processor (max): 2x or 4x Intel® Xeon® processor Scalable family CPUs, up to 165W

Memory:

  • Up to 6TB† in 48x DIMM slots; 2666MHz TruDDR4 DIMMs
  • †3TB TB at GA; 128GB DIMMs available in the near future. Available prior to GA via special bid.

Expansion Slots: Up to 9x PCIe plus 1x LOM; optional 1x ML2 slot

Drive Bays: Up to 24 HS bays (incl. 4 or 8 AnyBay): plus up to 2x mirrored M.2 boot (opt. RAID 1)

Internal Storage: Up to 16x 2.5-inch storage bays supporting SAS/SATA HDD and SSDs or up to 8x 2.5-inch NVMe SSD; plus up to 2x mirrored M.2 boot

RAID Support: Hardware RAID (up to 16 ports) with flash cache;up to 16-port HBAs

Security and Availability Features: TPM 1.2/2.0; PFA; HS/redundant drives, fans, and PSUs; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; diagnostic LCD panel

Network Interface: Multiple options with 1GbE, 10GbE, 25GbE, 32GbE, 40GbE or InfiniBand PCIe adapters; one (2-/4-port) 1GbE or 10GbE LOM card

Power Supply: 2x hot swap/redundant: 750W/1100W/1600W AC 80 PLUS Platinum

Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere. Visit lenovopress.com/osig for details.

Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, opt. service upgrades
