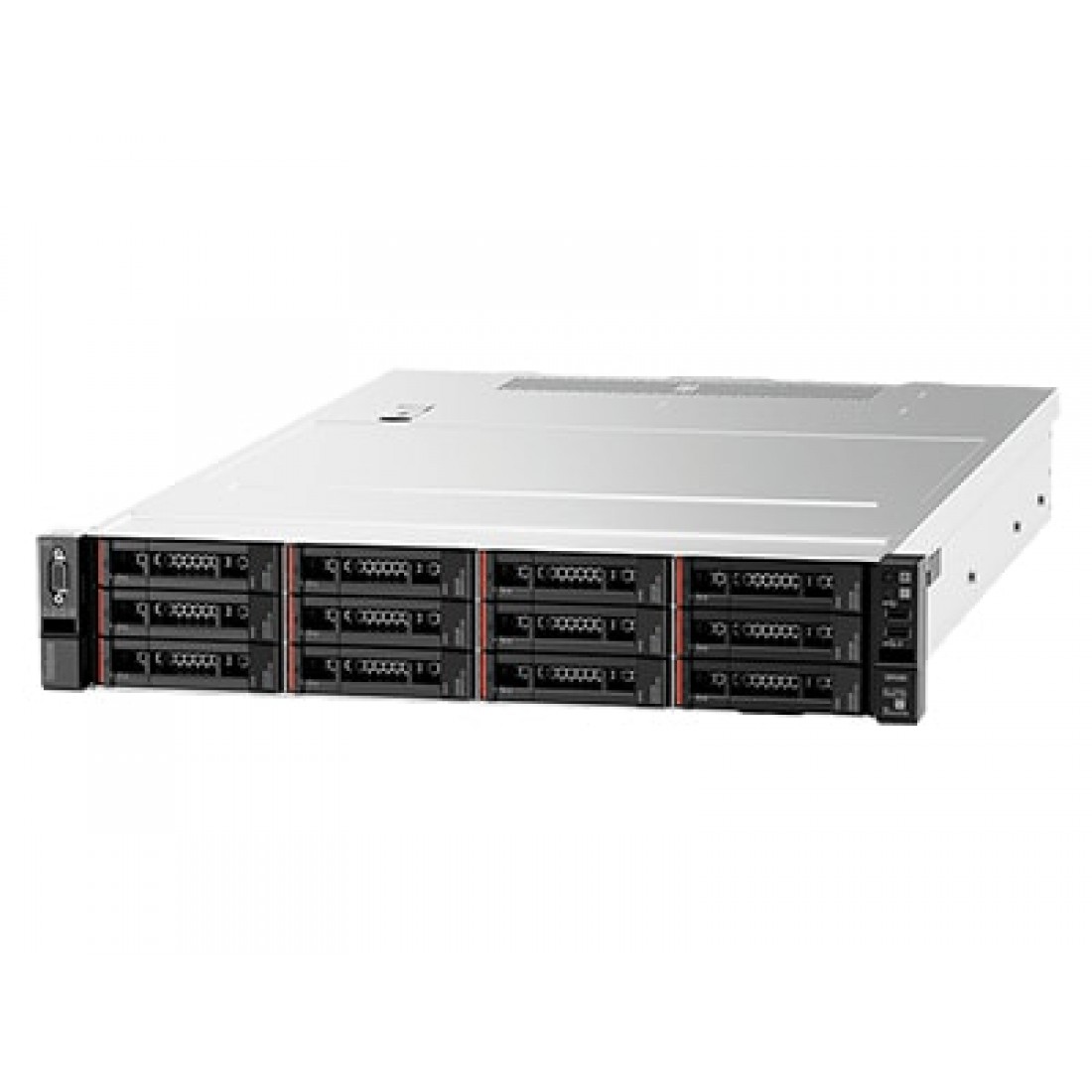

Lenovo ThinkSystem SR590 Rack Server
Choose this powerful, budget-friendly 2U rack server
Budget-friendly 2U rack server, offering high availability, high reliability, high performance, high security, easy management, and quick servicing
ThinkSystem SR590
ThinkSystem SR590 features high-performance processors and memory as well as high-performance I/O and storage, with both large storage capacity and large I/O capacity. The systems offer high reliability and are highly secure, cost-efficient, and simple to manage and service.
Feature highlights
High-performance processors and memory
- High-performance I/O and storage
- Large storage capacity
- Large I/O capacity
- High reliability, highly secure
- Cost-efficient
- Simple to manage and service
Powerful and balanced
Designed for rack environments that require peak two-socket performance and sizeable memory capacity, the Lenovo ThinkSystem SR590 can tackle cloud and Big Data environments for medium and large enterprises. The SR590 is a balanced, midrange rack server that also works well for small-scale virtualization, collaboration, and productivity applications, as well as caching and logging.
Flexible and expandable
The SR590 supports up to 16 hot-swap 2.5” or 14 hot-swap or simple-swap 3.5” drive bays. Up to four of the 2.5” or 3.5” bays can be AnyBay, capable of supporting not only SAS/ SATA drives but also direct -connect NVMe drives (which bypass the SAS bus) for the ultimate in storage performance. In addition, the SR590 supports SAS and SATA HDDs and SSDs with up to 12Gb SAS throughput, as well as up to two M.2 drives for faster, more secure OS boot. The SR590 provides storage flexibility, NIC expansion in multiple form factors, including LOM, ML2, and PCIe, and replaceable I/O riser cards for varied adapter slot configurations.
Reliable and secure
Lenovo servers have been the most reliable in the industry for several years. They were ranked No. 1, yet again, in the latest ITIC survey of x86 server reliability*. The SR590 is no exception, including many features that contribute to the reliability and security of the server and your all-important data. These features result in an ideal server for proxy caching, cloud, CRM, security, virtualization, media streaming, Big Data, databases, database-driven Web serving, mail serving, and many other workloads.
Tech specs
Form Factor/Height: 2U
Processor: Up to 2x Intel® Xeon® Platinum 150W, up to 26 cores per CPU
Memory: Up to 1TB of 2666MHz TruDDR4 memory in 16 slots
Expansion Slots: Up to 6x PCIe 3.0 on replaceable riser cards for multiple I/O configurations
Drive Bays: Up to 16x 2.5" or 14x 3.5" hot-swap or up to 8x 3.5" simple-swap; optional 4x AnyBay bays
Internal Storage: Up to: 168TB (3.5" SAS/SATA HDD); 53.8TB (3.5" SSD); 38.4TB (2.5" SAS/SATA); 122.9TB (2.5" SSD); 16TB (direct-connect 2.5" NVMe); up to 2x M.2 boot drives
Network Interface: T2 GbE ports standard; LOM interface standard; optional ML2
NIC Ports: 22x GbE standard; 1x GbE dedicated management standard; optional up to 2x 1GbE, 2x 10GBase-T, or 2x 10GBase SFP+
Power Supply: Up to 2x hot-swap/redundant 550W/750W Platinum, 750W Titanium
High Availability: Hot-swap HDDs/SSDs/NVMe, hot-swap PSUs and fans, light path diagnostics, PFA for all major components, ASHRAE A4 support (with limits), optional XClarity Pro with Call Home feature.
Security Features: Locking bezel; locking top cover; TPM 2.1 standard; optional TCM
RAID Support: Hardware RAID 0, 1, 5 standard on hot-swap models (optional hardware RAID 0, 1, 5, 50, 6, 60 for 2.5" models); Software RAID 0, 1, 5 on simple-swap 3.5" models (optional hardware RAID 0, 1, 5)
Management: XClarity Administrator; XClarity Controller (embedded hardware); optional XClarity Pro
OS Support: Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
Limited Warranty: 1- and 3-year customer replaceable unit and on-site service, next business day 9x5, optional service upgrades
