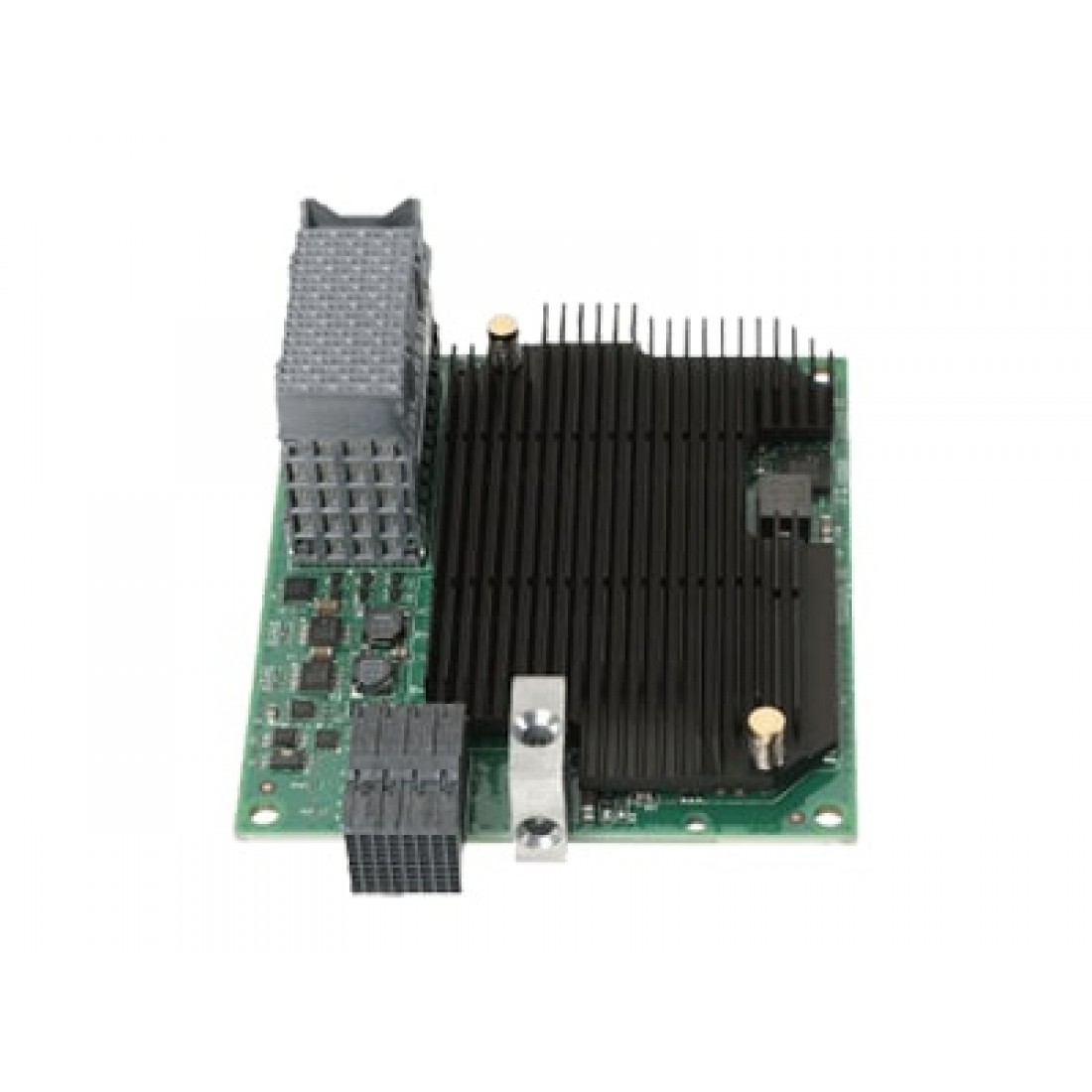

Lenovo ThinkSystem Emulex 16Gb Fiber Channel Adaptors

Brand: Lenovo
Model Number: TS-Emulex-16Gb-Fiber-CA

Scale and Protect

The Emulex 16Gb Fiber Channel Adapter family for Lenovo Flex System enables the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). These adapters are based on the proven Emulex Fiber Channel stack and work with 16 Gb Flex System Fiber Channel switch modules.

As the only 4-port HBAs for Flex System and ThinkSystem respectively, the FC5054 and LPm16004B-L provide unmatched scalability and redundancy. In addition, these two 4-port adapters have two separate ASICs with no bridge chip, so data flows directly to an independent PCIe bus for high availability without a single point of failure.

Ethernet Adaptors: ThinkSystem Emulex 16Gb Fiber Channel Adaptors

Emulex LPm16002B-L and LPm16004B-L Mezz Adapters, based on the proven Emulex Fiber Channel stack, enable the highest FC speed access to an external storage area network (SAN).

Ample Secure Bandwidth

  • Fiber Channel protocol SCSI (FCP-SCSI) and Fiber Channel Internet Protocol (FCP-IP)
  • Point-to-point fabric connection: F-Port Fabric Login
  • Fiber Channel Arbitrated Loop (FC-AL) and FCAL-2 FL-Port Login
  • Fiber Channel services class 2 and 3
  • LUN Masking, an initiator-based LUN masking for storage traffic isolation
  • N_Port Id Virtualization (NPIV) allows multiple host initiator N_Ports to share a single physical N_Port, dramatically reducing SAN hardware requirements.
  • FCP SCSI initiator and target operation
  • Full-duplex operation

Did You Know?

You can deploy faster and manage less when you combine Host Bus Adapters (HBAs) and Virtual Fabric Adapters (VFAs) that are developed by Emulex. Lenovo HBAs and VFAs use the same installation and configuration process, streamlining the effort to get your system up and running, and saving you valuable time. They also use the same Fibre Channel drivers, reducing the time to qualify and manage storage connectivity. And with the Emulex OneCommand Manager, you can manage Lenovo HBAs and VFAs that are developed by Emulex through the data center from a single console.

Tech Specs

Server Support:

  • ThinkSystem Emulex LPm16002B-L Mezz 16Gb 2-Port Fibre Channel Adapter
  • ThinkSystem Emulex LPm16004B-L Mezz 16Gb 4-Port Fibre Channel Adapter
  • Flex System FC5052 2-port 16Gb FC Adapter
  • Flex System FC5054 4-port 16Gb FC Adapter

I/O Module Support:

  • Flex System FC3171 8Gb SAN Switch
  • Flex System FC3171 8Gb SAN Pass-thru
  • Flex System FC5022 16Gb SAN Scalable Switch
  • Flex System FC5022 24-port 16Gb SAN Scalable Switch
  • Flex System FC5022 24-port 16Gb ESB SAN Scalable Switch

Operating System Support:

The ThinkSystem Emulex LPm16002B-L and LPm16004B-L Mezz 16Gb 4-Port Fibre Channel Adapter support the following operating systems:

  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2016
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • Red Hat Enterprise Linux 7
  • SUSE Linux Enterprise Server 11 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T
  • SUSE Linux Enterprise Server 12
  • SUSE Linux Enterprise Server 12 with Xen
  • VMware vSphere 6.0 (ESXi)
  • VMware vSphere 6.5 (ESXi)

The Flex System FC5052 2-port and FC5054 4-port 16Gb FC Adapters support the following operating systems:

  • Microsoft Windows Server 2008 HPC Edition
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Datacenter x64 Edition
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • Red Hat Enterprise Linux 7
  • SUSE Linux Enterprise Server 10 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T
  • SUSE Linux Enterprise Server 12
  • SUSE Linux Enterprise Server 12 with Xen
  • VMware ESX 4.1
  • VMware ESXi 4.1
  • VMware vSphere 5.0 (ESXi)
  • VMware vSphere 5.1 (ESXi)
  • VMware vSphere 5.5 (ESXi)
  • VMware vSphere 6.0 (ESXi)
  • VMware vSphere 6.5 (ESXi)

Warranty: There is a 1-year customer-replaceable unit (CRU) limited warranty. When installed in a server, these adapters assume the server's base warranty and any warranty upgrade.

Physical Specifications:

The dimensions and weight of the adapters are as follows:

  • Width: 100 mm (3.9 in.)
  • Depth: 80 mm (3.1 in.)
  • Weight: 13 g (0.3 lb)

Shipping dimensions and weight (approximate):

  • Height: 58 mm (2.3 in.)
  • Width: 229 mm (9.0 in.)
  • Depth: 208 mm (8.2 in.)
  • Weight: 0.4 kg (0.89 lb)
