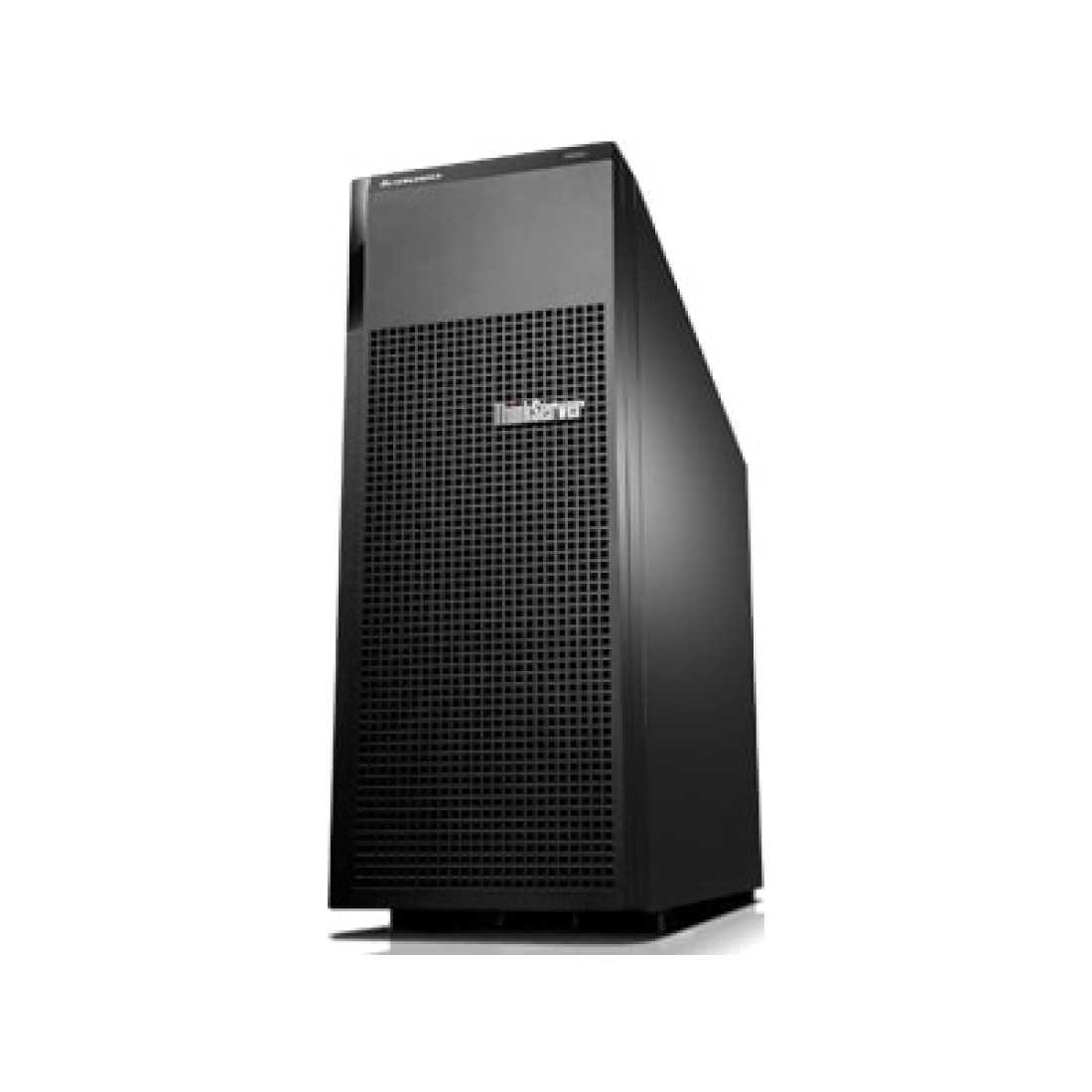

Lenovo ThinkServer TD350 Tower Server

Select the compact yet uncompromising server.

Full enterprise capacity and performance in a compact 4U dual-processor tower.

ThinkServer TD350

ThinkServer TD350 delivers  Intel® Xeon® E5 series processors with a Windows Server 2012 R2 platform. The server's compact design offers full enterprise capability and optional dual processors in an expansive, powerful, and easy-to-manage form factor.

Feature highlights

Accelerate infrastructure workloads with double the memory capacity and 16% more cores than the previous generation

• Simplify server management with Lenovo XClarity
• Gain superior performance with Intel Xeon E5-2600 v4 processors (up to 40 cores per server) and double the memory capacity of the previous generation
• Reduce data center costs with smart energy-efficient features, ASHRAE 4 Compliance, 80 PLUS® Titanium power supplies (up to 96% efficiency), up to four redundant fans, optional Lenovo XClarity Energy Manager
• Support storage-hungry workloads with enormous on-board capacity (up to 120TB)

Computing for Optimal Performance

The ThinkServer TD350 allows you to balance high performance and massive storage capacity without the need to invest in a rack infrastructure. This next-generation tower packs nearly 3 times the memory capacity of the TD340, up to 1TB DDR4, and an unprecedented storage capacity of up to 120TB. Plus, two additional enterprise-class M.2 solid-state drives (SSDs) are available as an internal option for secure booting. These features, plus powerful Intel® Xeon® E5 Series processors, deliver optimal value for your business.

Compatible with any environment

Remote access and open industry standards make the TD350 an ideal tower server for any environment—whether it’s needed in tower form for retail and office environments or rack-mounted for growing data center use. Installation and upgrade are easy with tool-less access to 95% of customer replaceable parts. Your growing business can invest in the TD350 to support simple file/print with applicable hosting and then easily scale to support more complex business analytics and large databases.

Simplified Management

Centrally automate discovery, inventory tracking, real-time monitoring, fault detection, and alert handling over the life cycle of your servers with Lenovo XClarity, a best-in-class enterprise management tool. A mobile option enables you to securely monitor your systems from Android and iOS devices. Additionally, the TD350 offers a suite of intuitive administration utilities for configuration, deployment, and power management. Lenovo XClarity Energy Manager is available for optimizing your server power consumption.

Tech specs

Form Factor/Height: 4U Tower (Rail kit optional)

Processor (max)/Cache (max): Up to two 20-core Intel® Xeon® E5-2600 v4 Series/Up to 50MB per processor

Memory (Max): Up to 1TB DDR4 – 2400 MHz via 16 slots (RDIMM/LRDIMM)

Disk Bays/Media Bays: Up to 15 x 3.5-inch or up to 32 x 2.5-inch

Maximum Internal Storage: Up to 120TB 3.5-inch chassis or up to 64TB 2.5-inch chassis; M.2 SSD and SD card options available

RAID Support:

• ThinkServer RAID 110i,510i,520i AnyRAID,(0/1/10, optional 5)
• ThinkServer RAID 720i,720ix AnyRAID Adapter (0/1/10/5/50/6/60)

Power Supply: Redundant hot-swap, 550W/750W/1100W (80 PLUS Platinum), 750W (80 PLUS Titanium)

Network Interface: 2 x Integrated Gb Ethernet + dedicated management port

Expansion Slots:

• CPU 1: PCIe 3.0 FH/FL x16, x8, x8

• CPU 2: CPU1 plus PCIe 3.0 FH/FL x8, x16, x8, x8

USB Ports/VGA Ports: 2x(USB 2.0) front, 4x(USB 3.0x 2)rear, 1x(USB 3.0) internal/1 rear

Energy Efficiency: Up to 45 ºC (ASHRAE 4 Compliant); up to 4 redundant and hot-swap fans

Systems Management: Lenovo XClarity Administrator with mobile option; Lenovo XClarity Pro software bundle; ThinkServer System Manager; ThinkServer System Manager Premium; Lenovo XClarity Energy Manager

Operating Systems Supported: Microsoft Windows Server 2012, R2 (Including Hyper-V), Microsoft Windows Multipoint Server 2012, Microsoft Windows 8, 8.1, Microsoft Windows Small Business Server 2011, SUSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, 7 Server, VMware ESXi 5.5, 6.0

Dimensions (W x H x D) and Weight:

• (251 mm x 459 mm x 686 mm) or (9.9 inches x 18.1 inches x 27.0 inches

• Starting at (22 kg) or (48.5 lbs)

Specifications may vary depending upon region.
