Lenovo Lenovo Flex System x240M5 Cost-effective Power, Security, and Scalability Flex System x240M5 is optimized for virtualization,.. Product #: FS-x240-M5

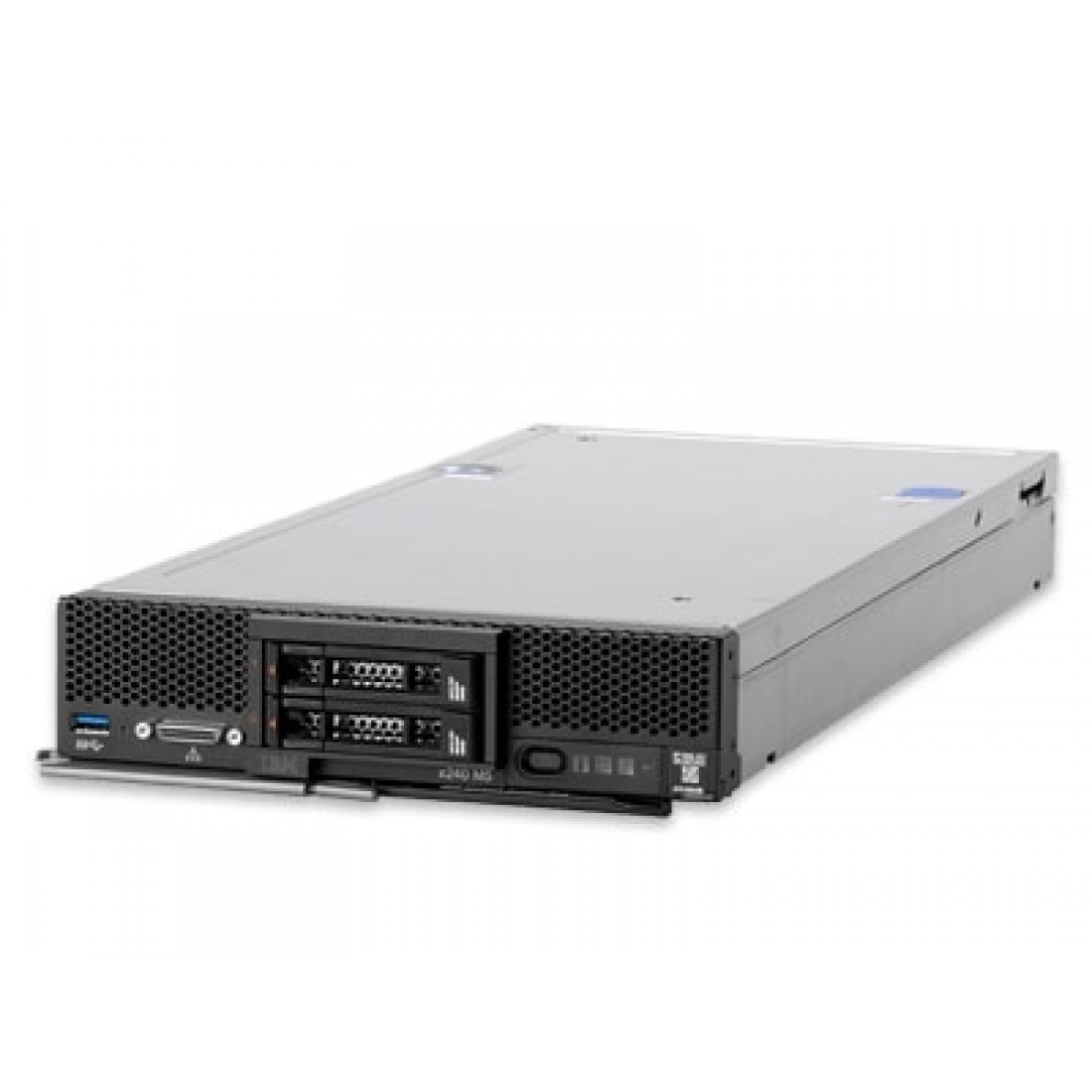

Lenovo Flex System x240M5

Brand: Lenovo
Model Number: FS-x240-M5

Cost-effective Power, Security, and Scalability

Flex System x240M5 is optimized for virtualization, performance, and networking. This compute node has simplified deployment and management. It uses virtual networking with an integrated virtual fabric. Automated power management and integrated system management contribute to ease of operation.

Flex System x240M5

Advanced blade servers, management software, and networking designed to keep operating costs down without sacrificing efficiency, reliability, or security.

Break New Ground

  • Reduce operating costs with new energy-efficient Intel® Xeon® E5-2600 v4 processors
  • Unsurpassed two-socket memory capacity, featuring TruDDR4 memory with up to 1.5TB allowing for more VDI users or VMs per node
  • Deploy new capability for virtualization, performance, and industry-leading networking flexibility
  • Ideal platform for those migrating from BladeCenter HS23 and competitive blade systems

Constant Challenges

As organizations face continued pressure to consolidate data center infrastructure, they also wrestle with the need to handle more compute-intensive workloads, which are analyzing more data faster than ever before. With all these challenges to meet, more data centers are turning to Lenovo Flex System and the Flex System x240 M5 Compute Node.

Security and Reliability

  • Boost cloud performance with greater VM density and low-latency flash storage
  • Reduce unplanned downtime by delivering industry-leading RAS design
  • Provide power savings using improved thermal and cooling design and more efficient components
  • Safeguard enterprise data with built-in System x Trusted Platform Assurance to mitigate attacks against boot firmware and management controllers

Simplify Systems Management

Simplify, automate, and modernize Day 1 provisioning and ongoing administrative tasks over the server life cycle with Lenovo XClarity.

Tech Specs

Form Factor: Lenovo Flex System standard node

Processor: Up to 2 Intel® Xeon® processors E5-2600 v4 series, up to 44 cores per node

Cache Per Processor: Up to 55MB, 2.5MB per core

Memory: 24 DDR4 LP, 1.5TB maximum with 64GB LRDIMM, all x4 DIMMs support 2DPC@2400MHz

Internal Storage: 2 x hot-swap 2.5-inch (SAS/SATA/SSD/NVMe) or 4 x hot-swap 1.8-inch SSDs

Internal RAID: Standard LSI 3004, RAID 0/1, optional ServeRAID M5215 based on LSI 3108, RAID 0/1/5 with 2GB Flash Enablement

Internal SD Flash/USB: 2 x dual-slotted SD card +1 x Front Access USB Key

Network Connectivity:

  • 2 x 10GbE (standard on select models)
  • 4 x 1GbE adapter (optional)
  • 2-port, 4-port and 8-port x 10GbE adapters (optional)
  • 2-port x 40GbE adapter (optional)
  • 2-port and 4-port x 8/16Gb Fibre Channel adapters (optional)
  • 2-port x QDR/FDR InfiniBand adapter (optional)

 Management: Lenovo XClarity, IMM 2.1, RTMM KVM Dongle

Operating Systems: Microsoft Windows Server, SUSE, RedHat Enterprise Linux, VMware

RAS Features: Chassis redundant/hot-plug power and cooling Front panel and FRU/CRU LEDs

Warranty: 3-year customer replaceable unit and on-site limited warranty, next business day 9x5, service upgrades available
