Lenovo Flex System EN4172 2-port 10Gb Ethernet Adapter
Lenovo Flex System EN2024 4-port 1Gb Ethernet Adapter
Lenovo Lenovo Flex System EN4132 2-port 10Gb Ethernet Adapter High Performance Connectivity The Flex System™ EN4132 2-port 10Gb Ethernet Adapter delivers high-ba.. Product #: FS-EN4132-2-port-EA

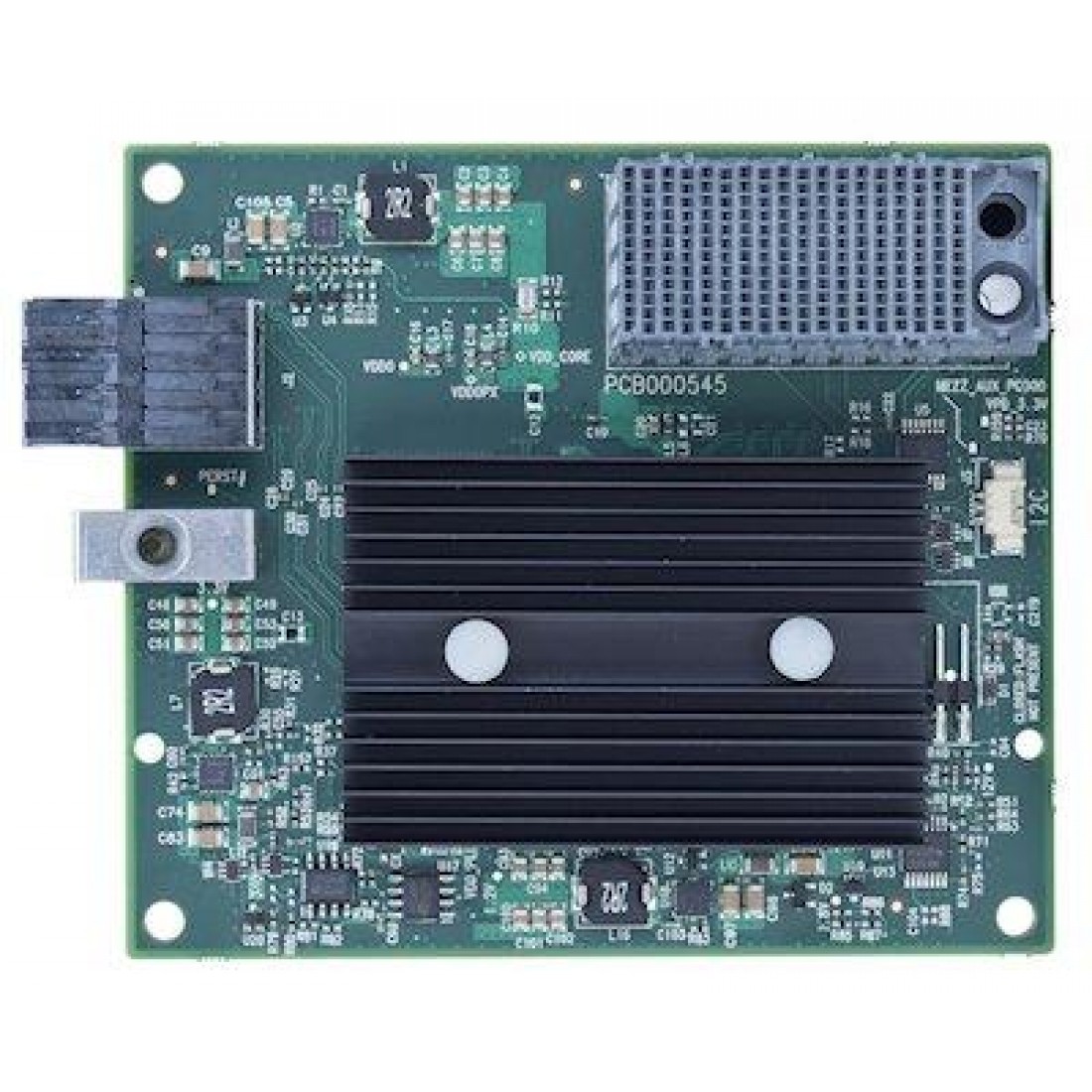

Lenovo Flex System EN4132 2-port 10Gb Ethernet Adapter

Brand: Lenovo
Model Number: FS-EN4132-2-port-EA

High Performance Connectivity

The Flex System™ EN4132 2-port 10Gb Ethernet Adapter delivers high-bandwidth and industry-leading Ethernet connectivity for performance-driven server in enterprise data centers, high-performance computing (HPC), and embedded environments. Clustered databases, web infrastructure, and high frequency trading are just a few applications that achieve significant throughput and latency improvements, resulting in faster access, real-time response, and more users per server. Based on Mellanox ConnectX-3 EN technology, this adapter improves network performance by increasing available bandwidth while decreasing the associated transport load on the processor.

Flex System EN4132 2-port 10Gb Ethernet Adapter

Supports RDMA and RoCE technologies. Helps provide application acceleration and low latency for specialized applications.

Power Advanced Applications

  • RDMA over Ethernet
  • ConnectX-3 provides efficient RDMA services, delivering low latency and high performance to bandwidth and latency sensitive applications.
  • Sockets acceleration
  • Applications using TCP/UDP/IP transport can achieve industry-leading throughput over 10 GbE.
  • The hardware-based stateless off-load and flow steering engines in ConnectX-3 reduce the processor overhead of IP packet transport, freeing more processor cycles to work on the application.
  • Sockets acceleration software further increases performance for latency sensitive applications.

Did You Know?

Mellanox networking adapters deliver industry-leading bandwidth with ultra-low, sub-microsecond latency for performance-driven server clustering applications. Combined with the Flex System Fabric EN4093 10Gb Scalable Switch, your organization can achieve efficient computing by off-loading the processor protocol processing and data movement overhead, such as RDMA and Send/Receive semantics, allowing more processor power for the application.

Target uses

  • Financial institutions using high-frequency trading or data exchange applications that require low latency fabrics. This adapter delivers low latency Sockets and RDMA solutions for the ultimate in application performance.
  • Web 2.0 and cloud service providers that need high bandwidth and processor off-loads to get the highest productivity from their data centers.

Tech Specs

Supported Servers:

  • Flex System EN4132 2-port 10Gb Ethernet Adapter

Supported I/O Modules:

1 Gb switches:

  • Flex System EN2092 1Gb Ethernet Scalable Switch

10 Gb switches:

  • Lenovo Flex System Fabric EN4093R 10Gb Scalable Switch

 + EN4093 10Gb Scalable Switch (Upgrade 1)

  • Lenovo Flex System Fabric CN4093 10Gb Converged Scalable Switch
  • Lenovo Flex System SI4091 10Gb System Interconnect Module
  • Lenovo Flex System Fabric SI4093 System Interconnect Module

 + SI4093 System Interconnect Module (Upgrade 1)

  • Flex System EN4091 10Gb Ethernet Pass-thru
  • Flex System EN4023 10Gb Scalable Switch
  • Flex System Fabric CN4093 10Gb Converged Scalable Switch
  • Flex System Fabric EN4093 10Gb Scalable Switch
  • Flex System Fabric EN4093R 10Gb Scalable Switch
  • Flex System Fabric SI4093 System Interconnect Module
  • Cisco Nexus B22 Fabric Extender for Flex System

40 Gb switches:

  • Flex System EN6131 40Gb Ethernet Switch

Supported Operating Systems:

  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Datacenter x64 Edition
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • SUSE LINUX Enterprise Server 10 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 for AMD64/EM64T
  • VMware ESX 4.1
  • VMware ESXi 4.1
  • VMware vSphere 5.0 (ESXi)
  • VMware vSphere 5.1 (ESXi)
  • VMware vSphere 5.5 (ESXi)

Physical Specifications:

The dimensions and weight of the adapter are as follows:

  • Width: 100 mm (3.9 in.)
  • Depth: 80 mm (3.1 in.)
  • Weight: 13 g (0.3 lb)

Shipping dimensions and weight (approximate):

  • Height: 58 mm (2.3 in.)
  • Width: 229 mm (9.0 in.)
  • Depth: 208 mm (8.2 in.)
  • Weight: 0.4 kg (0.89 lb)
