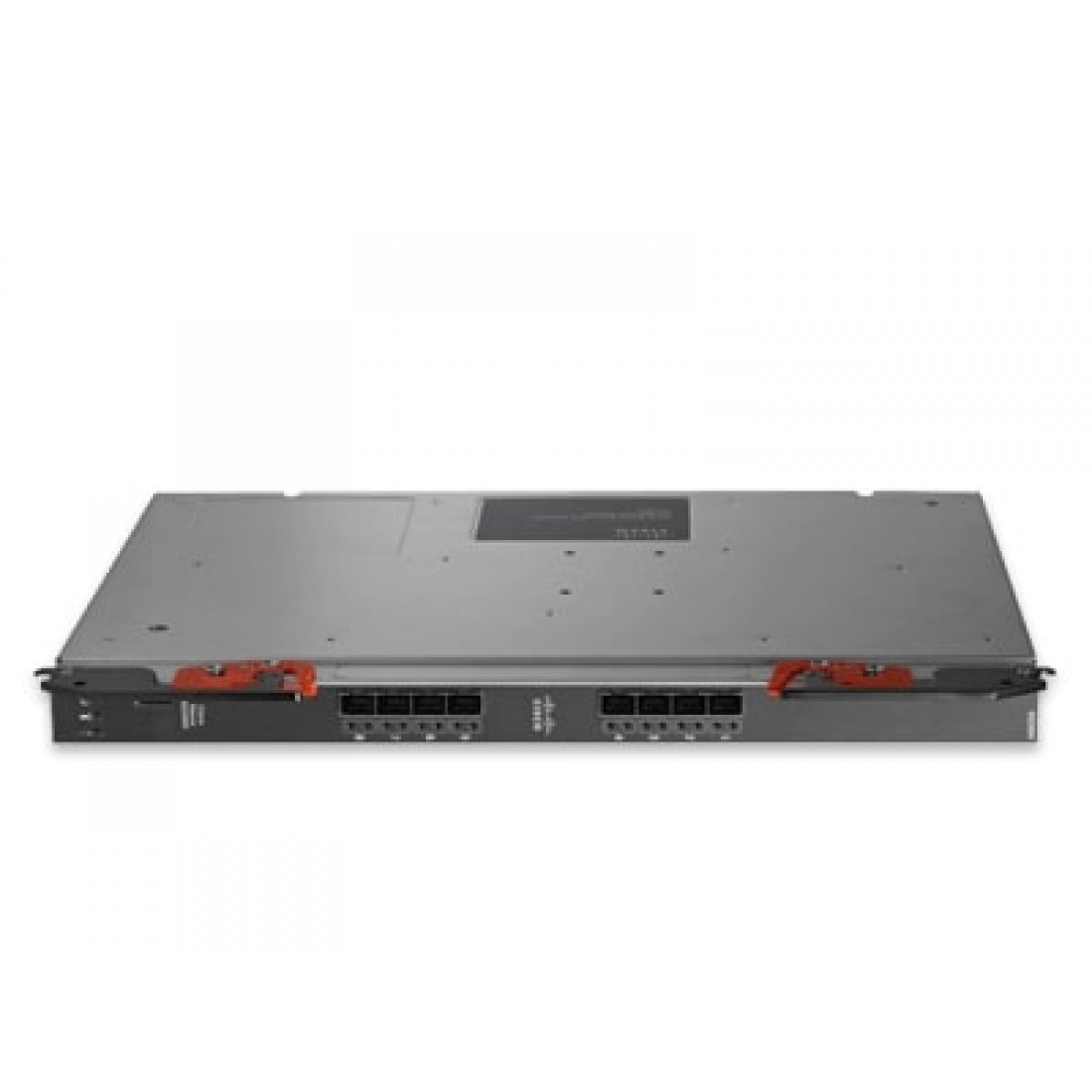

Lenovo Cisco Nexus B22 Fabric Extender for Flex System

Brand: Lenovo
Model Number: CN-B22-FE-FS

Seamless Connectivity to Cisco Nexus infrastructure

The Cisco Nexus B22 Fabric Extender for Flex System™ (Cisco Nexus model B22IBM) is designed to simplify data center server access architecture and operations. Clients looking for Cisco connectivity inside the Flex System chassis can now leverage the new module to reduce management and offer easy connectivity to existing Nexus infrastructure.

The Cisco Nexus B22 Fabric Extender eliminates the need to configure each networking device or individual ports, therefore reducing the number of management points. It provides a low latency, loop-free interface that does not rely upon Spanning Tree Protocols, therefore removing one of the greatest deployment and management complexities of a traditional switch.

Cisco Nexus B22 Fabric Extender for Flex System

Extends the Cisco Nexus fabric to the Flex System chassis. Aggregates network connections of all Flex System nodes to upstream Cisco Nexus Switch. Adds new options for Cisco-centric networking Organizations. Uses Cisco Nexus Technology and copper breakout cables.

Dependable and Scalable

  • Highly scalable, consistent access layer
  • Layer 2 dependability
  • Simplified operations and management
  • Software maintenance simplification
  • Switch feature consistency across a large number of servers
  • Cost-effective
  • Consolidation
  • Investment protection
  • Cabling reduction with unified fabric
  • The Cisco Nexus B22 supports an optimal cabling strategy that simplifies network operations and prepares for future technologies.
  • Effective bandwidth utilization
  • Reduced power and cooling

Best Choices

In today’s highly competitive, constrained economy, most companies need the flexibility to pick and choose the best combination of compute, storage, networking and management options to achieve the organization’s IT goals. When resource choices of the data center are limited, IT often cannot choose the best equipment to meet their requirements. In certain environments, a company’s corporate IT policy may require specific branded items for all network connectivity. The Cisco Nexus B22 Fabric Extender for Flex System™ offers choice for clients who require Cisco connectivity for the Lenovo® Flex System Chassis.

Cisco Nexus

The growing volume, velocity, and variety of data your data center needs to process means you demand consistency from your network access layer. The B22 Fabric Extender helps provide connectivity of the compute node to the access layer without increasing management points within the network. The Cisco Nexus B22 Fabric Extender connected to a Cisco Nexus parent switch supports 1Gb/10Gb Ethernet, FCoE and iSCSI. To help simplify operations and management, the B22 Fabric Extender serves as a remote line card for a Cisco Nexus parent switch. The device configurations are managed on the Cisco Nexus parent switch, and configuration information is downloaded to the Cisco Nexus B22 using in-band communication.

Tech Specs

Internal ports: Fourteen internal full-duplex auto-sensing 1/10 Gigabit Ethernet ports.

External ports: Eight ports for 10 Gb Ethernet SFP+ transceivers (support for 10GBASE-SR, 10GBASE-LR, or 10GBASE-ER) or SFP+ copper direct-attach cables (DAC). SFP+ modules and DACs are not included and must be purchased separately.

Scalability and Performance:

  • Wire-speed forwarding of traffic with aggregated throughput of 400 Gbps.
  • Static and EtherChannel link aggregation, up to 80 Gb (160 Gb full-duplex) of total fabric uplink bandwidth per module.
  • Support for jumbo frames (up to 9,216 bytes).
  • PortChannel on server ports.

Availability and Redundancy:

  • Redundant uplinks through Cisco EtherChannel hashing or static port pinning.
  • vPCs for dual-homed active-active connectivity across two Cisco Nexus parent switches.
  • vPCs for dual-homed straight-through NIC connectivity across two Cisco Nexus B22 Fabric Extenders.
  • In-Service Software Upgrade (ISSU).

Security:

  • Access control lists (ACLs).

Quality of Service (QoS):

  • Support for IEEE 802.1p traffic classification and processing.
  • Eight hardware queues per port.
  • Per-port QoS configuration.
  • Local traffic policing.
  • Egress strict-priority queuing.
  • Egress port-based scheduling: Weighted Round Robin (WRR).

Virtualization:

  • 802.1Q VLAN tagging support.
  • Switch Independent Virtual NIC (vNIC2): Ethernet, iSCSI, or FCoE traffic.

Converged Enhanced Ethernet:

  • Priority-Based Flow Control (PFC) (IEEE 802.1Qbb) extends 802.3x standard flow control to allow the switch to pause traffic based on the 802.1p priority value in each packet's VLAN tag.
  • Enhanced Transmission Selection (ETS) (IEEE 802.1Qaz) provides a method for allocating link bandwidth based on the 802.1p priority value in each packet's VLAN tag.
  • Data Center Bridging Capability Exchange Protocol (DCBX) (IEEE 802.1AB) allows neighboring network devices to exchange information about their capabilities.

Fiber Channel over Ethernet (FCoE):

  • FC-BB5 FCoE specification compliant.
  • FCoE transit switch operations.
  • FCoE Initialization Protocol (FIP) support.

Manageability:

  • Fabric Extender management using in-band management.
  • Simple Network Management Protocol (SNMP v1, v2, and v3).
  • XML (NETCONF) support.
  • Cisco Discovery Protocol versions 1 and 2.
  • CiscoWorks support.
  • Cisco Data Center Network Manager (DCNM); the Cisco Nexus B22 is managed through the parent Cisco Nexus switch using Cisco DCNM and standard Simple Network Management Protocol (SNMP), XML interfaces, and the command-line interface (CLI).

Monitoring:

  • Switch light-emitting diodes (LEDs) for external port status and switch module status indication.
  • Change tracking and remote logging with syslog feature.
  • Remote monitoring (RMON).
  • Cisco Switched Port Analyzer (SPAN) source on server ports.
  • Power-on self-test (POST) diagnostic tests.

Standards:

  • IEEE 802.1AB Data Center Bridging Capability Exchange Protocol (DCBX)
  • IEEE 802.1p Class of Service (CoS) prioritization
  • IEEE 802.1Q Tagged VLAN (frame tagging on all ports when VLANs are enabled)
  • IEEE 802.1Qbb Priority-Based Flow Control (PFC)
  • IEEE 802.1Qaz Enhanced Transmission Selection (ETS)
  • IEEE 802.3 Ethernet
  • IEEE 802.3ae 10GBASE-SR short range fiber optics 10 Gb Ethernet
  • IEEE 802.3ae 10GBASE-LR long range fiber optics 10 Gb Ethernet
  • IEEE 802.3ae 10GBASE-ER extended range fiber optics 10 Gb Ethernet
  • IEEE 802.3ap 10GBASE-KR backplane 10 Gb Ethernet
  • IEEE 802.3x Full-duplex Flow Control
  • SFF-8431 10GSFP+Cu SFP+ Direct Attach Cable

Supported Network Adapters:

10 Gb Ethernet

  • Embedded 10Gb Virtual Fabric Adapter (x240, x440; 2-port)*
  • Flex System CN4022 2-port 10Gb Converged Adapter
  • Flex System CN4052 2-port 10Gb Virtual Fabric Adapter
  • Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter
  • Flex System CN4054 10Gb Virtual Fabric Adapter (4-port)#
  • Flex System CN4054R 10Gb Virtual Fabric Adapter (4-port)#
  • Flex System CN4054S 10Gb Virtual Fabric Adapter (4-port)#
  • Flex System CN4058S 8-port 10Gb Virtual Fabric Adapter#
  • Flex System EN4132 2-port 10Gb Ethernet Adapter

1 Gb Ethernet

  • Embedded 1 Gb Ethernet controller (2-port)
  • Flex System EN2024 4-port 1Gb Ethernet Adapter#

*The Embedded 10Gb Virtual Fabric Adapter is included in some models of the x240 and x440.

 # With four-port or eight-port adapters, only two adapter ports can be used, and the remaining ports are not used.

Top of Rack Switches:

Cisco Nexus 7700 Series (Requires NX-OS software version 7.2(0)D1(1) or later):

  • Cisco Nexus 7718 Switch
  • Cisco Nexus 7710 Switch
  • Cisco Nexus 7706 Switch
  • Cisco Nexus 7702 Switch

Cisco Nexus 7000 Series (Requires NX-OS software version 7.2(0)D1(1) or later):

  • Cisco Nexus 7018 Switch
  • Cisco Nexus 7010 Switch
  • Cisco Nexus 7009 Switch
  • Cisco Nexus 7004 Switch

Cisco Nexus 6000 Series:

  • Cisco Nexus 6004 Switch
  • Cisco Nexus 6001 Switch

Cisco Nexus 5600 Series ◦Cisco Nexus 56128P Switch:

  • Cisco Nexus 5696Q Switch
  • Cisco Nexus 5672UP Switch
  • Cisco Nexus 5624Q Switch

Cisco Nexus 5500 Series:

  • Cisco Nexus 5596T Switch
  • Cisco Nexus 5596UP Switch
  • Cisco Nexus 5548P Switch
  • Cisco Nexus 5548UP Switch

Network Cabling Requirements:

10 Gb Ethernet:

  • Cisco Fabric Extender Transceiver, 10GBASE-SR 850 nm multimode fiber cable (50 µ or 62.5 µ) up to 100 m
  • 10GBASE-SR SFP+ Module, 10GBASE-SR, 850 nm multimode fiber cable (50 µ or 62.5 µ) up to 300 m
  • 10GBASE-LR SFP+ Module, 10GBASE-LR, 1310 nm single-mode fiber cable up to 10 km
  • 10GBASE-ER SFP+ Module, 10GBASE-ER, 1310 nm single-mode fiber cable up to 40 km
  • Direct attach cable, 10GSFP+Cu, Up to 10 m SFP+ copper DACs

Warranty: The Cisco Nexus B22 Fabric Extender for Flex System carries a 1-year, customer-replaceable unit (CRU) limited warranty. When installed in a chassis, these I/O modules assume your system's base warranty and any Lenovo warranty service upgrade. Software support for the B22 Fabric Extender is offered via a support package for the upstream Cisco Nexus switch to which the B22 Fabric Extender is connected.

Physical Specifications:

Dimensions and weight of the Cisco Nexus B22 Fabric Extender for Flex System (approximate):

  • Height: 30 mm (1.2 in.)
  • Width: 402 mm (15.8 in.)
  • Depth: 297 mm (11.7 in.)
  • Weight: 3.2 kg (7.0 lb)

Shipping dimensions and weight (approximate):

  • Height: 114 mm (4.5 in.)
  • Width: 508 mm (20.0 in.)
  • Depth: 432 mm (17.0 in.)
  • Weight: 4.1 kg (9.1 lb)
