iSeries IBM 9406, #5094 PCI-X Expansion Tower

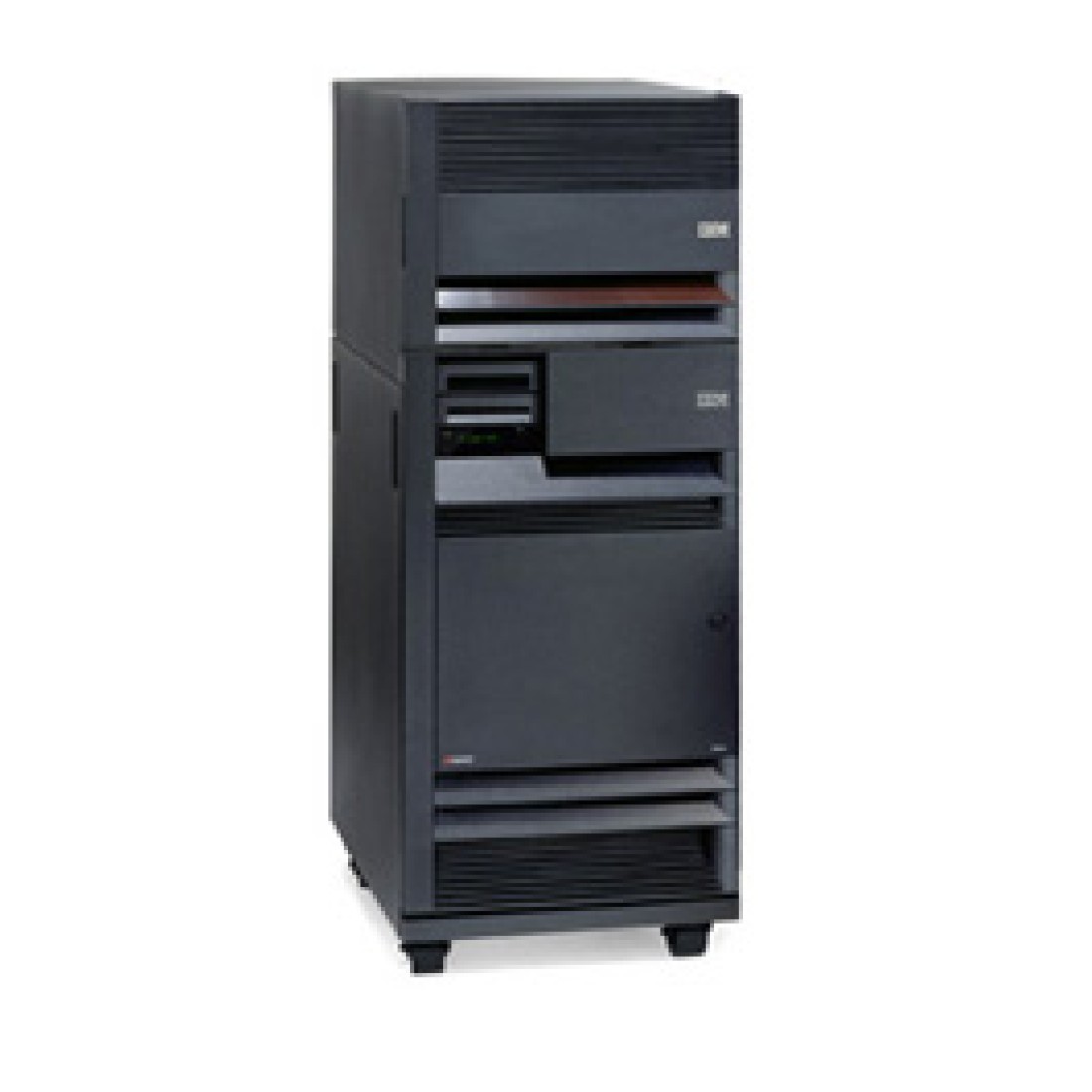

(#5094) PCI-X Expansion Tower
I/O capability for iSeries systems. The #5094 has 15 disk unit slots, with an additional 30 slots available with feature #5108. #5094 also has two removable media slots and 14 PCI-X card slots. A #9844 Base PCI IOP is included.
A bus adapter to provide the HSL interface to the system is included. Select one of the following:
#9886 - Base Optical Bus Adapter, to specify two optical HSL ports
#9887 - Base HSL-2 Bus Adapter, to specify two copper HSL-2 ports
One or two cables must be ordered to attach to the HSL or HSL-2 ports.
When ordering cables to connect to the HSL interface, optical HSL, copper HSL, copper HSL-2, or copper HSL to HSL-2 cables are required. An HSL loop uses all optical or all copper ports/cables. A copper loop can intermix I/O towers/units with copper HSL and copper HSL-2 ports. Select the appropriate cable based on the type of HSL ports to which it is being attached, and the cable length required.
Copper HSL to HSL-2 (HSL on one end and HSL-2 on the other end)
#1474 - 6m HSL to HSL-2 Cable
#1475 - 10m HSL to HSL-2 Cable
Copper HSL-2 (HSL-2 on both ends of the cable)
#1482 - 3.5m HSL-2 Cable
#1483 - 10m HSL-2 Cable
#1485 - 15m HSL-2 Cable
#1470 - 6m HSL Optical Cable
#1471 - 30m HSL Optical Cable
#1472 - 100m HSL Optical Cable
#1473 - 250m HSL Optical Cable
For each I/O tower/unit select one of the following SPCN cables:
#1463 - 2m SPCN Cable
#1464 - 6m SPCN Cable
#1465 - 15m SPCN Cable
#1466 - 30m SPCN Cable
#0369 - 100m Optical SPCN Cable
#1468 - 250m Optical SPCN Cable
Select one of the following line cords:
#1406 - 200V 16A 14-Ft TL Line Cord
#1408 - 4.3m 200V/16A Pwr Cd Italy
#1409 - 4.3m 200V/16A Pwr Cd AU/NZ
#1418 - 4.3m 200V/16A Pwr Cd S Africa
#1419 - 4.3m 200V/16A Pwr Cd Israel
#1420 - 4.3m 200V/16A Pwr Cd EU/Asia
#1421 - 4.3m 200V/16A Pwr Cd CH/DK
#1451 - 200V 6-Ft Line Cord
#1452 - 200V 14-Ft Line Cord
#1453 - 200V 6-Ft Locking Line Cord
#1454 - 200V 12A 14-Ft TL Line Cord
#1455 - 200V 6-Ft Watertight Line Cord
#1456 - 200V 14-Ft Watertight Line Cord
#1476 - 4.3m 200V/12A Pwr Cd UK
The 45 disk-unit positions are in groups of 15, each supported by a separate disk unit controller.
This feature requires OS/400 V5R2, plus updates. Refer to Informational APAR II13440 at:
Supported on the following systems: 520, 550, 570, 595, 800, 810, 820, 825, 830, 840, 870, 890
