IBM AS400 iSeries iSeries IBM 9406, #0555 iSeries 25U Rack #0555 provides a 19-inch, 1.3 meter (49-inch) high rack with 25 EIA units of total space for install.. Product #: 0555-9406

iSeries IBM 9406, #0555 iSeries 25U Rack

Brand: IBM AS400 iSeries
Model Number: 0555-9406

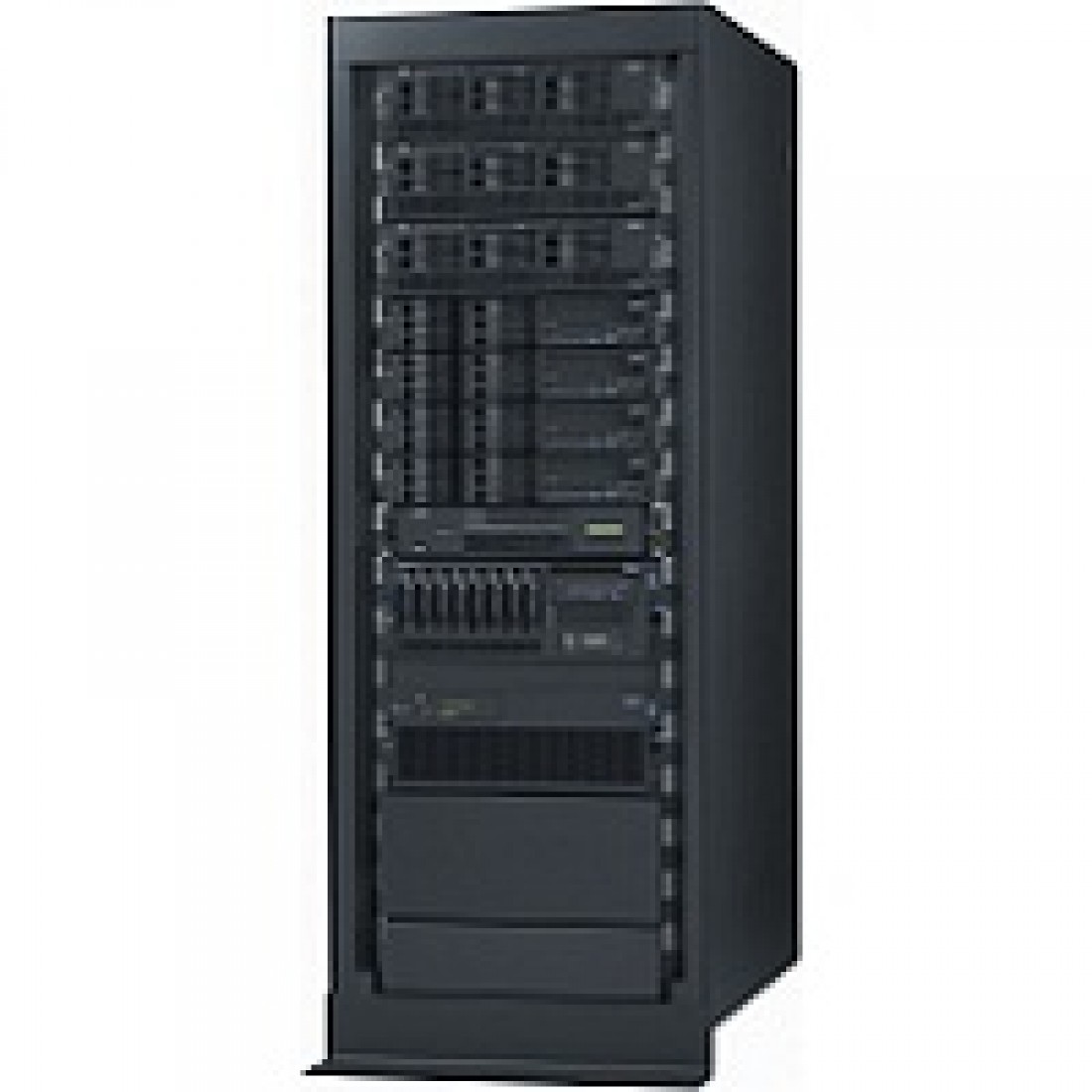

#0555 provides a 19-inch, 1.3 meter (49-inch) high rack with 25 EIA units of total space for installing rack-mounted system units and/or expansion units. The #0555 includes lockable front and rear doors. Filler panels and perforated doors are included to help provide proper airflow and cooling.

The #0555 supports up to six Power Distribution Units (PDU) that are mounted horizontally. Each PDU takes up one EIA of rack space. The following PDUs are supported:

#5160 - Power Distribution Unit 1 Phase NEMA (6 sockets)
#5161 - Power Distribution Unit 1 Phase IEC (6 sockets)
#5162 - Power Distribution Unit 2 of 3 Phase (6 sockets)
#5163 - Power Distribution Unit ? 3 Phase (6 sockets)
#7188 - Power Distribution Unit (12 sockets)

All racked units plugging into a PDU will require a PDU line cord with a C14 plug. The #7188 PDU is the replacement for the #5160, #5161, #5162 and #5163.

Supported on Models 520, 550, 570, 595, 800, 810, 825, 870, 890
