IBM S922 9009-22G EP56 4-Core AIX Server
IBM Power8 IBM iSeries 8284-21A EPXQ 4-Core P05 Processor  .. Product #: 8284-21A

IBM iSeries 8284-21A EPXQ 4-Core P05 Processor

Brand: IBM Power8
Model Number: 8284-21A

(#EPXQ) - 4-core 3.026 GHz POWER8 Processor

4-core 3.026 GHz POWER8 processor

  • Attributes provided: 4-core 3.062 GHz processor
  • Attributes required: One processor card slot.
  • Minimum required: 0
  • Maximum allowed: 1 (Initial order maximum: 1)
  • OS level required:
    • IBM i - not supported
  • Initial Order/MES/Both/Supported: Both
  • CSU: Yes
  • Return parts MES: No

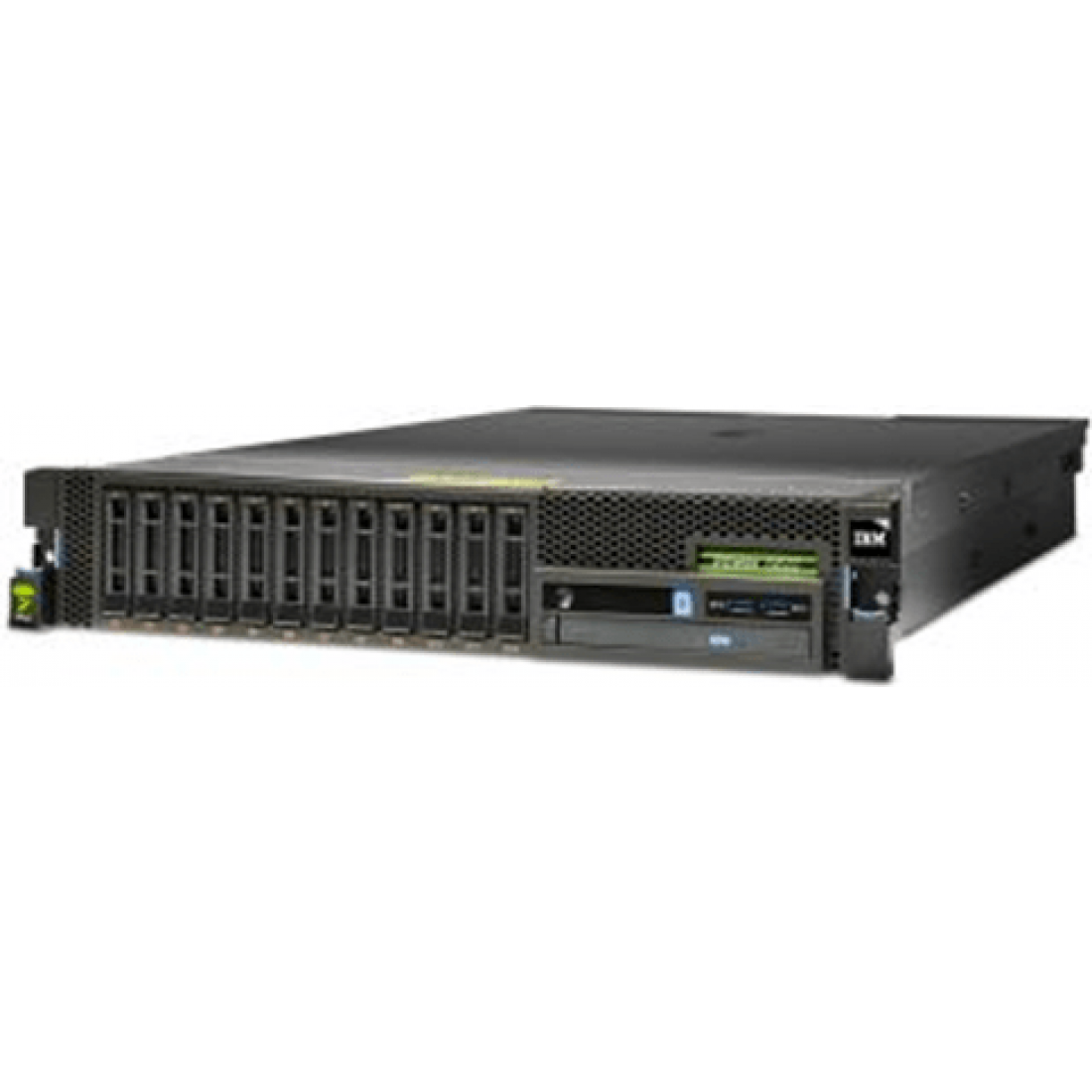

The Power System S812 server brings robust and solid business transaction processing with proven infrastructure for AIX and IBM i operating system environments. The S812 is a 1-socket, 2U system designed to meet compute demands of larger deployments, for example, in retail space and as an entry point for noncompute-intense workloads that require high reliability and stability.

This 1-socket system can be ordered with one core for IBM i (up to 25 users) and up to four cores for AIX. The S812 provides the benefits of great performance per core and per socket, utilizing the POWER8 processor. It also provides resilient I/O capabilities, internal storage, and hot-plug PCI capabilities, along with greater reliability, availability, and serviceability.

Other benefits include:

  • A foundation to core workloads in small footprints at a very competitive price point
  • Right fit for small businesses and scale-out deployments
  • Energy efficient and easy to manage by utilizing advanced energy control

The Power System S812 supports one processor socket, offering 1-core with IBM i or 4-core with AIX 3.026 GHz POWER8 configurations in a 19-inch rack-mount, 2U (EIA units) drawer configuration.

The Power S812 server supports a maximum of 64 GB DDR4 memory for IBM i workloads and a maximum of 128 GB DDR4 memory for AIX workloads. Memory features supported are 16 GB and 32 GB and run at speeds of 1600 Mbps.



System Highlights:



The IBM Power System S812 server is a powerful 1-socket server that ships with one or four activated cores and I/O configuration flexibility to meet small businesses' processing needs. The server features:

  • The IBM POWER8 processor module configurations:
    • 1-core 3.026 GHz for IBM i
    • 4-core 3.026 GHz for AIX
  • Up to 64 GB of memory for 1-core S812or up to 128 GB of memory for 4-core S812
  • Choice of integrated storage backplane features:
    • Eight SFF-3 bays, DVD bay, and dual SAS controller with write cache
    • Twelve SFF-3 bays, DVD bay, and single SAS controller
    • Twelve SFF-3 bays, DVD bay, and split backplane two SAS controllers
  • Expansion capabilities for the EXP24SX or EXP12SX Drawer for the 4-core S812
  • Six low-profile, hot-swap PCIe Gen 3 slots
  • Integrated:
    • Service processor
    • EnergyScale technology
    • Four (two front + two rear) USB 3.0 ports for general use
    • Two rear USB 2.0 ports for non-general use
    • Hot-swap and redundant cooling
    • One system port with RJ45 connector
  • Two hot-plug, redundant power supplies
  • 19-inch rack-mounting hardware (2U)
  • For IBM i, a maximum of 25 IBM i user entitlements
  •
