IBM AS400 iSeries IBM iSeries 1124 DAT160 SAS half-high tape drive 80/160 GB IBM 1124 80/160 GB DAT160 SAS tape drive is a 3.5-inch half-high, SAS tape drive that provides up to.. Product #: 1124-8231

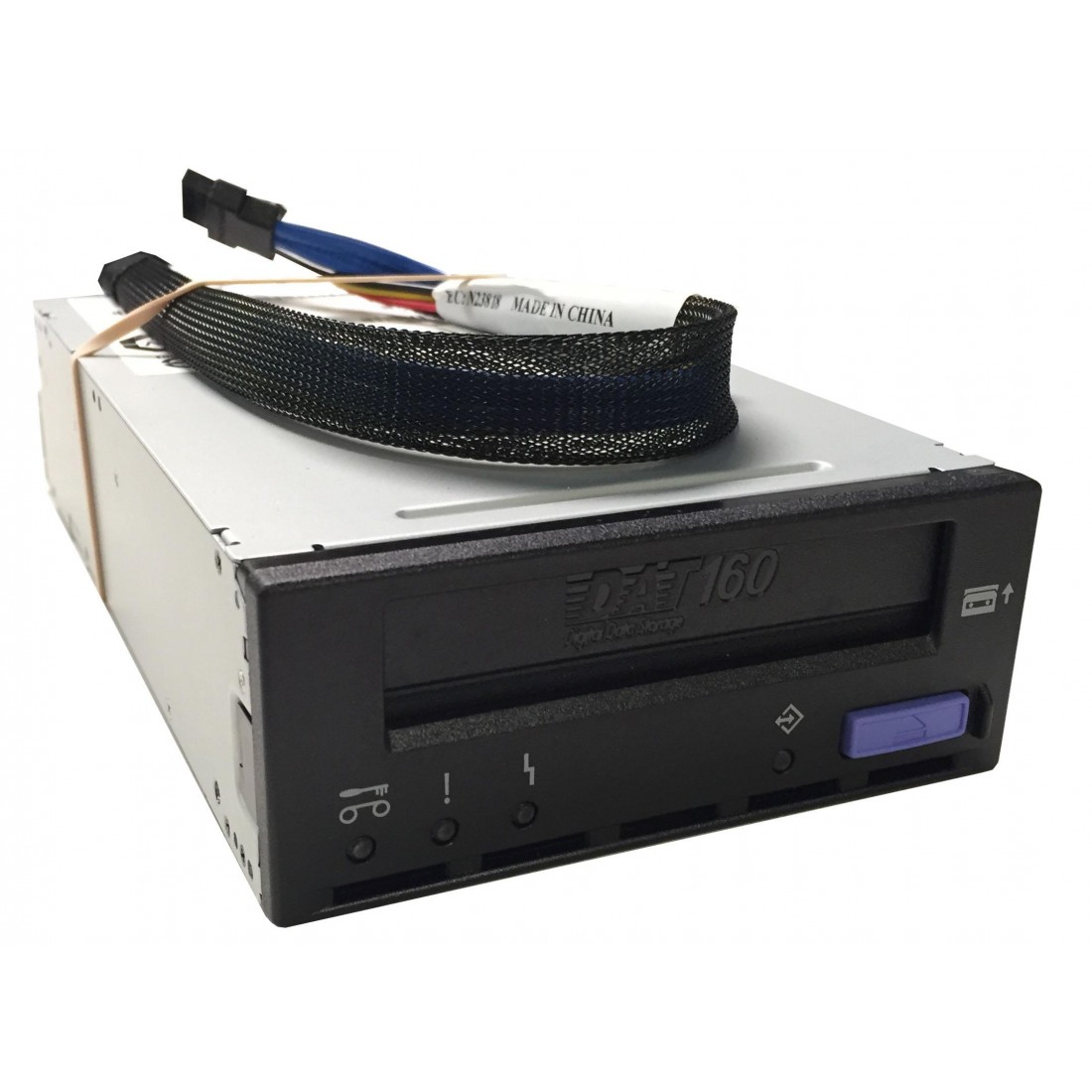

IBM iSeries 1124 DAT160 SAS half-high tape drive 80/160 GB

Brand: IBM AS400 iSeries
Model Number: 1124-8231

IBM 1124 80/160 GB DAT160 SAS tape drive is a 3.5-inch half-high, SAS tape drive that provides up to 6MBps native mode for save/restore functions on IBM Power7 & Power8 systems. The IBM 1124 tape drive uses IBM DAT160, 4 mm data cartridges and provides up to 160GB with 2:1 compression ratio. The 1124 is also referenced by IBM PN: 46C2215 or 46C2691 and CCIN: 63A0. An IBM Power system can't have both a IBM 1124 80/160 GB DAT160 SAS tape drive and 1123 USB Internal Docking Station for Removable RDX Disk Drive. One or the other can be on the system. A minimum of 1 x feature 1106 or feature 1107 must be ordered with each feature 1124 ordered. The IBM 1124 80/160 GB DAT160 SAS tape drive is only available as refurbished or used condition as of February 14, 2014.

The IBM 1124 is supported on the following Power7 & Power8 systems:  8231-E1C, 8231-E1D, 8231-E2B, 8231-E2C, 8231-E2D

IBM 1124 summary:

  • FRU part number: 46C2215 or 46C2691
  • CCIN: 63A0
  • Media part numbers: see Tape catridges
  • Capacity: 80 GB native mode, 160 GB (typical) compression mode
  • Form factor: 3.5-inch half high
  • Media: DAT160, DAT72, and DDS4 media. This tape drive uses 4 mm data cartridges for saving and restoring system data. It is designed to use only DDS (Digital Data Storage) data cartridges. The tape drive reads and writes data to tape cartridges that are in the DDS4, DAT72, or DAT160 format.
  • Technology: helical scan, rotating head
  • Operation: streaming
  • Data transfer rate: 6 MBps native mode, 12 MBps (typical) compression
  • Interface: integrated, internal SAS
  • Compatibility: DDS4 (read/write), DAT72 (read/write), and DAT160 (read/write)
  • Attributes provided: 4 mm tape capability, test cartridge, cleaning cartridge, and a data cartridge
  • Attributes required: One 1.6-inch (41 mm) half-high media bay and one integrated, internal SAS
