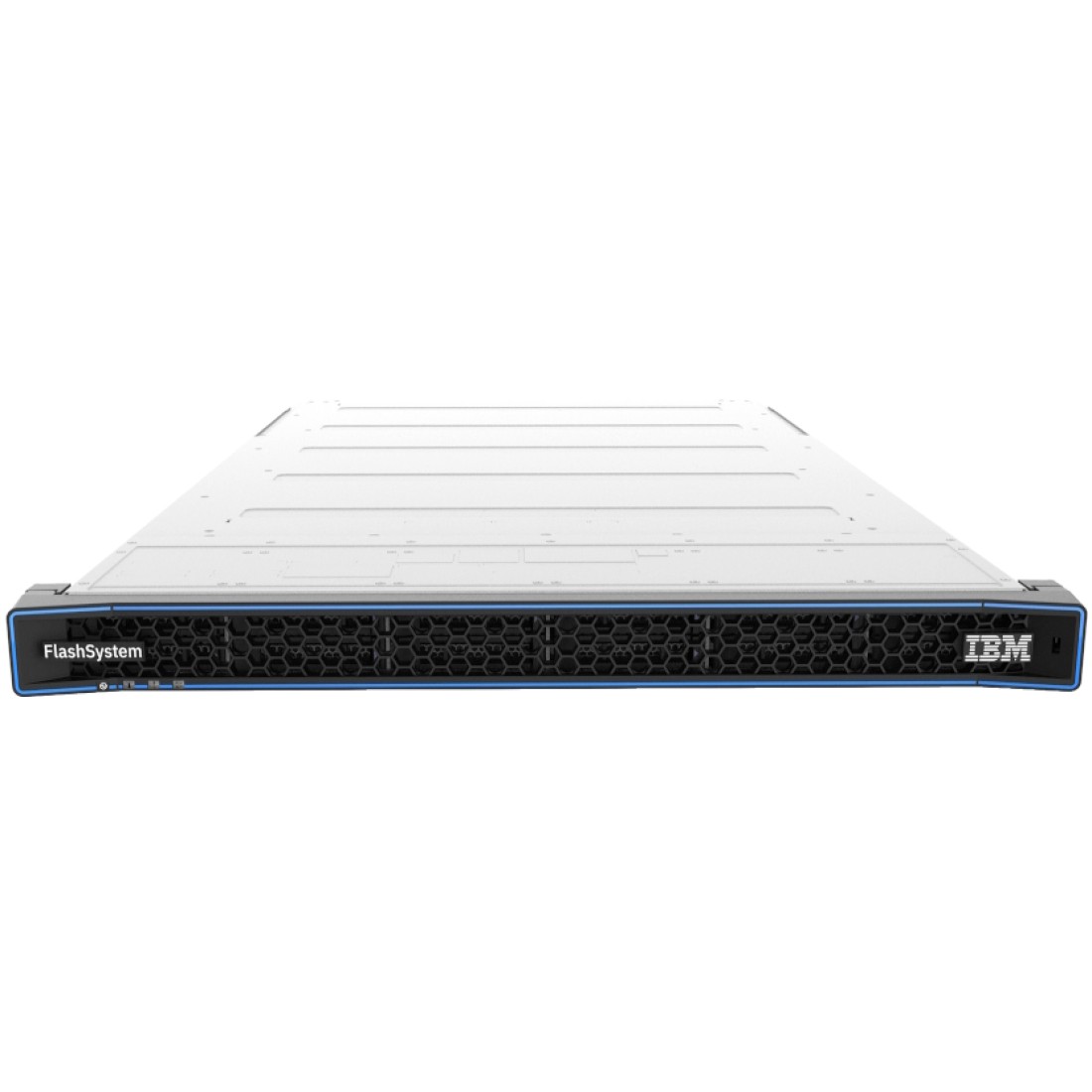

IBM FlashSystem 5300 4662-7H2 FS5300 NVMe Flash Storage

IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage is an ultra-dense, highly performance SAN that offers extreme flexibility to customers of all sizes, combining IBM Storage Virtualize, IBM FlashCore Modules, and IBM Storage Insights.

IBM Storage IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage control enclosures feature:
Two node canisters, each with a twelve-core processor
64 GB, 256 GB, and 512 GB cache options (32 GB, 128 GB, or 256 GB per canister)
On-board 25/10 Gb iSCSI ports with copper or optical connectivity options
Optional 64Gb FC, 32Gb FC, and 10 Gb iSCSI with copper or optical connectivity
Optional 12 Gb SAS ports for expansion enclosure attachment
Twelve slots for 2.5-inch SFF NVMe drives
1U, 19-inch rack mount enclosure with 100 - 240 V AC power supplies

The IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems scale up to 428 drives with the attachment of FlashSystem expansion enclosures. IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems can be clustered to improve performance, bandwidth, and scalability. A IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage clustered system can contain two IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems and up to 856 drives.

The IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage supports three 12 Gb SAS expansion enclosure models:
4662-24G FlashSystem small form factor (SFF) 2U Expansion Enclosure supports Twenty-Four 2.5-inch SAS drives
4662-12G FlashSystem large form factor (LFF) 2U Expansion Enclosure supports Twelve 3.5-inch SAS drives
4662-92G FlashSystem high-density (HD) 5U Expansion Enclosure supports Nninety-Two 3.5-Inch SAS drives
Note: Expansion enclosures can be intermixed within an IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage system.

All IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage functional capabilities are provided through IBM Storage Virtualize licensed machine code.

The IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage control enclosure features dual node canisters with a twelve-core processor and up to 512 GB cache (system total) in a compact 1U, 19-inch rack mount enclosure. 25/10 Gb iSCSI connectivity is standard, with optional 64/32 Gb FC or 10Gb iSCSI connectivity. It has twelve 2.5-inch NVMe drive slots and supports the attachment of up to twelve 2U expansion enclosures or up to four 5U expansion enclosures and two 2U expansion. This delivers support for up to 428 drives.

The IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage is an ultra-dense, highly performant primary storage solution that offers extreme flexibility to customers of all sizes combining IBM Storage Virtualize, IBM FlashCore Modules, and IBM Storage Insights. The IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage offering consists of a control enclosure and the following expansion enclosure models 4662-12G, 4662-24G and 4662-92G.

Fibre Channel, SAS, and iSCSI connectivity with intermix flexibility
IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems include four 25/10 Gb Ethernet on-board ports standard for iSCSI connectivity or replication and two 1 Gb Ethernet ports for management and service technician use. On-board ports are not supplied with optics and optional SFP28, SFP+, RJ45 can be configured or the client may supply their optics and cables (MPO FC cables, AOC, DAC, and splitters) if they are listed as supported in the product documentation.

The IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems can be configured with up to four I/O adapter cards to provide up to sixteen 32 Gb fibre channel ports, up to eight 64Gb fibre channel ports, or up to sixteen 10 Gb Ethernet ports. Select ports on IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage control enclosures support additional link speeds. The fibre channel adapters maintain backward compatibility with two previous generations (i.e. 32Gb FC is backwards compatible with 16Gb and 8Gb). The 25/10 Gb Ethernet on-board ports also support 1 Gb iSCSI with the RJ45 SFP. For a comprehensive list of supported environments, devices, and configurations, go to the IBM SSIC website.

IBM FlashCore Modules, storage-class memory, and industry-standard NVMe drive options
IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage is designed to support IBM FlashCore Modules, storage-class memory, industry-standard flash drives, or an intermix. IBM FlashCore Modules integrate IBM MicroLatency technology, advanced flash management, and reliability into a 2.5-inch SFF NVMe with built-in performance-neutral hardware compression and encryption. For improved flexibility, the IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems also support a variety of industry-standard, self-encrypting NVMe flash drives. Deployments requiring higher flexibility, scalability, density, and cost benefits of hard disk drives can take advantage of FlashSystem expansion enclosures 4662-12G, 4662-24G and 4662-92G.

The IBM FlashCore Module 4 are available on the IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage. All IBM FlashCore Modules 4 use the PCIe 4.0 interface to deliver improved transfer rates and leading edge computational storage working together with Storage Virtualize and Storage Insights to seek for ransomware threats in real-time without compromising performance by learning and analyzing workload anomalies which include, but are not limited to, changes in compression ratio, encryption level, data entropy, and various data access patterns.

IBM NVMe FlashCore Modules supported in IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage control enclosures:
IBM AGSE 4.8 TB NVMe FlashCore Module 4
IBM AGSF 9.6 TB NVMe FlashCore Module 4
IBM AGSG 19.2 TB NVMe FlashCore Module 4
IBM AGSH 38.4 TB NVMe FlashCore Module 4
Note: The IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage control enclosure supports a 1.6TB NVMe storage-class memory drive. These small capacity, ultra-low latency drives can be used in conjunction with EasyTier to further improve the overall performance of your NVMe workloads, or as a stand-alone flash storage tier with even higher performance.

IBM NVMe industry-standard drives supported in IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage control enclosures:
IBM AGT2 1.92 TB NVMe flash drive
IBM AGT3 3.84 TB NVMe flash drive
IBM AGT4 7.68 TB NVMe flash drive
IBM AGT5 15.36 TB NVMe flash drive
IBM AGT6 30.72TB NVMe Flash Drive
Note: All drives are dual-port and hot-swappable. Drives can be intermixed in the control enclosure as long as configuration rules are followed. Existing MT 4662 expansion enclosures can be intermixed behind the control enclosure.

Drive options and intermix flexibility meet a complete range of needs
IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage is designed to support a complete range of data storage requirements, from highly utilized applications to high-capacity, low usage applications with hybrid or all-flash solutions.

SAS drives supported in external enclosures 4662-12G, 4662-24G and 4662-92G:
Flash drives: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB, and 30.72 TB
High-performance, enterprise-class disk drives: 1.2 TB, 1.8 TB, and 2.4 TB 10,000 rpm
High-capacity, archival-class nearline disk drives: 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB, 18 TB, and 20 TB 7,200 rpm
All drives are dual-port and hot-swappable. Drives of the same form factor can be intermixed within an enclosure, and LFF and SFF expansion enclosures can be intermixed behind a control enclosure.

Scalable, Non-disruptive Migration with Flash Grid (A new approach to clustering):
Single point of management
Flexible, scalable federated cluster
Independent devices and failure domains
Scale to 10s (or 100s) of devices

Flexible asset utilization:
Provide applications with HA and/or DR resilience
Move “applications” (storage partitions) between devices
Manual or automated non-disruptive movement
Enables device migration and consolidation
Rebalance for capacity, performance or business needs

AIOPs with Storage Insights (move partitions non-disruptively):
Storage Insights provides a single pane of glass across all devices
Orchestrate movement of partitions between devices
Maintain separation of concerns via multiple Flash Grids

Intelligent Workload Placement:
Using AI, Storage Insights helps you understand where to best place new workloads into your environment based on device utilization and capacity prediction

Simply reliable monitoring, including proactive recommendations and alerts with IBM Storage Insights.
Under traditional scaling, IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems scale to 428 drives per system with the attachment of four FlashSystem high-density LFF expansion enclosures and two 2U SFF expansion enclosure or twelve 2U SFF expansion enclosures. IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage systems can be clustered to help deliver even greater performance, bandwidth, and storage capacity. With two- way system clustering, the maximum size of an IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage system increases to 856 drives.

Further scalability can be achieved with virtualization of external storage. When IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage virtualizes an external storage system, capacity in the external system inherits the functional richness and ease of use of IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage.

Designed for high availability
IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage is designed to offer high system and data availability with the following features:
HyperSwap and PBHA for high availability with dual-site, active-active access to a volume
Dual-active, intelligent node canisters with mirrored cache
Dual-port drives with automatic drive failure detection
Distributed RAID levels 1, 5, and 6
Redundant hardware, including power supplies and fans
Hot-swappable and client replaceable components
Automated path failover support for the data path between the server and the drives

Rich set of functional capabilities standard with every system
As a member of the FlashSystem family, IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage leverages IBM Storage Virtualize functions and management tools. The following functions are included with IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage models:
Distributed RAID 1, 5, and 6 provides the flexibility to choose the level of data protection required.
Virtualization of internal storage enables rapid, flexible provisioning and simple configuration changes.
Thin provisioning optimizes efficiency by allocating disk storage space in a flexible manner among multiple users, based on the minimum space required by each user at any given time. With thin provisioning, applications consume only the space they are actually using, not the total space that has been allocated to them.
Data reduction pools increase existing infrastructure capacity utilization by leveraging the following efficiency functions:
Automatically deallocate and reclaim capacity of thin-provisioned volumes containing deleted data and, for the first time, enable this reclaimed capacity to be reused by other volumes.
Block deduplication for increased efficiency of storage usage by utilizing pointers in duplicate blocks rather than keeping multiple copies.
Compression that improves efficiency by storing more active primary data in the same physical disk space.
Dynamic migration delivers efficiency and business value through a nondisruptive migration function.
Policy-based snapshots and replication provides simplified configuration and management for storage replication by applying a policy to a set of volumes in a volume group.
Graphical user interface delivers intuitive data management designed with point-and-click system management capabilities.

Encryption for enhanced data security
IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage supports encryption for data at rest. Encryption is performed by the control enclosure for data stored within the entire system, the IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage control enclosure, and all attached FlashSystem expansion enclosures. Encryption is enabled on IBM FlashSystem 5300 FS5300 4662-7H2 Flash Storage through the acquisition of the Encryption Enablement feature. This feature enables encryption on the entire system. The Encryption USB Flash Drives (four pack) feature or a supported Key Server is required for encryption keys management.

IBM Storage Assurance
IBM Storage Assurance Perpetual version is a new way of purchasing IBM Storage FlashSystems that allows you to subscribe to consistent modernization with budget certainty, all with the highest-level of service and support, reducing your lifecycle risks. This purchasing option includes full-system generational refreshes with non-disruptive upgrades – not just individual part replacements. This route to purchasing minimizes all storage lifecycle pain points around terminal code levels, end of support dates, maintenance extension price increases, supply challenges around capacity upgrades, disruptive data migrations and challenges with internal procurement and budget re-approvals for a new generation upgrade.

Storage Assurance Perpetual 4 year or 8 year contract options will be available for initial sale. The other features are being used for MES price calculation purposes. The IBM Storage Assurance program provides purchase protection that alleviates procurement obstacles and storage lifecycle management with a modern all flash platform engineered for non-disruptive innovation. IBM Storage Assurance is a subscription to hardware and software upgrades with premium support and quality of service across flexibile term limits.

Software upgrades with Storage Assurance
Get access to the latest advancements of IBM FlashSystem's software and monitoring features at the time of purchase and in the future as they become available.

Hardware upgrades with Storage Assurance
Experience full-system hardware refreshes if your current device cannot upgrade to the latest software, cannot add more capacity, is end of support, or does not meet stated performance commitments.
Upgrade or trade in your current system at any time out of the cycle, for an additional fee, and receive built-in trade-in credit.

Premium support with Storage Assurance
Premium-level ExpertCare.
Predictive analytics support, capacity planning, monitoring and reporting with IBM Storage Insights Pro entitlement.

Guarantees with Storage Assurance
Non-disruptive system-to-system migrations guarantee.
Price protection guarantee.
Workload performance guarantee.
End of service guarantee.
Energy efficiency guarantee.
Eight year contract full-system guarantee.
Terminal code level guarantee.
Capacity upgrade eligibility guarantee.

IBM Storage Insights
Available with an active support contract (Warranty or Expert Care), cloud-based IBM Storage Insights provides a single dashboard that gives you a clear view of all your IBM block storage. You'll be able to make better decisions by seeing trends in performance and capacity. Storage health information enables you to focus on areas needing attention and when IBM support is needed, Storage Insights simplifies uploading logs, speeds resolution with online configuration data, and provides an overview of open tickets all in one place. Storage Insights Pro is a subscription service that provides longer historical views of data, more reporting and optimization options, and supports IBM file and block storage together with EMC VNX and VMAX.

Physical specifications (Control enclosure)
Height: 4.3 cm (1.7 in.)
Width: 44.6 cm (17.5 in.) (19 in. rack standard)
Depth: 77.0 cm (30.3 in.)
Approximate weight:
Empty: 15.9kg (35.0 lb)
Fully configured: 19.5kg (43.0 lb)

Software requirements
FlashSystem 5300 requires IBM Storage Virtualize licensed machine code level 8.6.3.0, or later. IBM Storage FlashSystem 5300 model 7H2 supports external virtualization.

Feature descriptions
IBM ALB1 - 64 Gb FC 2 Port Adapter Cards (Pair)
This feature provides two 64 Gb FC I/O adapter cards with 64 Gb SFP+ transceivers. It is used to add 64 Gb FC connectivity to the control enclosure. Refer to the Technical Description - Host Interface Cables section for cable requirements.
IBM ALB2 - 32 Gb FC 4 Port Adapter Cards (Pair)
This feature provides two 32Gb FC I/O adapter cards. It is used to add 32 Gb FC connectivity to the control enclosure. Refer to the Technical Description - Host Interface Cables section for cable requirements.
IBM ALBR - 10 Gb Ethernet 4 Port Adapter Cards (Pair)
This feature provides two 10GbE I/O adapter cards. It is used to add 10 GbE connectivity to the control enclosure. Refer to the Technical Description - Host Interface Cables section for cable requirements.
IBM ALBQ - SAS Expansion Enclosure Attach Card (Pair)
This feature provides two four port 12 Gb SAS expansion enclosure attachment card. This feature is used to attach up to twenty expansion enclosures to the control enclosure. Refer to the Technical Description section for adapter configuration rules and cable requirements.
IBM AHPG - AC Power Supply (100-240v)
This feature is mandatory and indicates the base machine is configured with two Auto-ranging AC power supplies (100 - 240 volts).
IBM ALG2 - 64 GB Base Cache (FS5300)
This feature ships two 32GB DIMMs (DDR4) installed with the base system.
IBM ALG3 - 256 GB Base Cache (FS5300)
This feature ships four 64GB DIMMs (DDR4) installed with the base system.
IBM ALG4 - 256 GB Base Cache (FS5300 Model Conversion)
This feature indicates the model conversion kit will include two 64GB DIMMs (DDR4) installed in each node canister (256GB per system).
IBM ALGE - 256 GB Cache
This feature provides an additional 256 GB (4x 64GB DIMMs) of cache (128 GB for each node canister) to replace the initial 64GB cache (32GB DIMMs), or to add to the initial 256GB (64GB DIMMs).
IBM ALE0 - Encryption Enablement
This feature enables the encryption function. A single instance of this feature enables the function on the entire system (control enclosure and all attached expansion enclosures) and on externally virtualized storage subsystems. USB flash drives are required for storing the encryption master access key. See feature ACEA for additional details.
IBM ALEC - Encryption USB Flash Drives (Four Pack)
This feature provides four USB flash drives for storing the encryption master access key. Unless a supported Key Server is used for encryption keys management, a total three USB flash drives are required per FlashSystem 5200 cluster when encryption is enabled in the cluster, regardless of the number of systems in the cluster. If encryption will be used in a cluster, this feature should be ordered on one FlashSystem 5200 system, resulting in a shipment of four USB flash drives. IBM ACHP - 25 GbE SW SFP28 Transceivers (Four)
This feature provides four 25 Gb shortwave SFP28 transceivers to populate a pair of 25/10 GbE host interface cards. These transceivers are used to set the card ports to 25Gb.
IBM ACHQ - 10 GbE SW SFP+ Transceivers (Four)
This feature provides four 10 Gb shortwave SFP+ transceivers to populate a pair of 25/10 GbE host interface cards. These transceivers are used to set the card ports to 10Gb.
IBM ACJ2 - 10GbE SFP+ RJ45 Transceivers (Four)
This feature provides four 10GbE SFP+ to RJ45 transceivers.
IBM ACHV - 32 Gb FC LW SFP Transceivers (Pair)
This feature provides two 32 Gb longwave SFP transceivers for use with 32 Gb FC I/O ports.
IBM AGSE - 4.8TB FlashCore Module 4
This feature provides one NVMe FlashCore Module 4. It can be intermixed with FCM3 in an array (when doing a model conversion), and will be functionally equivalent to an FCM3 when intermixed. An all FCM4 RAID array is required for FCM4 specific functionality and increased performance.
IBM AGSF - 9.6TB FlashCore Module 4
This feature provides one NVMe FlashCore Module 4. It can be intermixed with FCM3 in an array (when doing a model conversion), and will be functionally equivalent to an FCM3 when intermixed. An all FCM4 RAID array is required for FCM4 specific functionality and increased performance.
IBM AGSG - 19.2TB FlashCore Module 4
This feature provides one NVMe FlashCore Module 4. It can be intermixed with FCM3 in an array (when doing a model conversion), and will be functionally equivalent to an FCM3 when intermixed. An all FCM4 RAID array is required for FCM4 specific functionality and increased performance.
IBM AGSH - 38.4TB FlashCore Module 4
This feature provides one NVMe FlashCore Module 4. It can be intermixed with FCM3 in an array (when doing a model conversion), and will be functionally equivalent to an FCM3 when intermixed. An all FCM4 RAID array is required for FCM4 specific functionality and increased performance.
IBM AGT2 - 1.92 TB NVMe Flash Drive
This feature provides one NVMe solid state drive.
IBM AGT3 - 3.84 TB NVMe Flash Drive
This feature provides one NVMe solid state drive.
IBM AGT4 - 7.68 TB NVMe Flash Drive
This feature provides one NVMe solid state drive.
IBM AGT5 - 15.36 TB NVMe Flash Drive
This feature provides one NVMe solid state drive.
IBM AGT6 - 30.72 TB NVMe Flash Drive
This feature provides one NVMe solid state drive.
IBM AGTF - 1.6 TB NVMe Storage Class Memory Drive
This feature provides one NVMe Storage Class Memory drive.
IBM ACSQ - 1m OM3 Fiber Cable (LC)
These features provide a 50.0/125 micrometer OM3 fiber optic cable terminated with LC Duplex connectors. They are used to connect Ethernet and FC ports to server or fabric ports.
IBM ACSR - 5m OM3 Fiber Cable (LC)
These features provide a 50.0/125 micrometer OM3 fiber optic cable terminated with LC Duplex connectors. They are used to connect Ethernet and FC ports to server or fabric ports.
IBM ACSS - 10m OM3 Fiber Cable (LC)
These features provide a 50.0/125 micrometer OM3 fiber optic cable terminated with LC Duplex connectors. They are used to connect Ethernet and FC ports to server or fabric ports.
IBM ACST - 25m OM3 Fiber Cable (LC)
These features provide a 50.0/125 micrometer OM3 fiber optic cable terminated with LC Duplex connectors. They are used to connect Ethernet and FC ports to server or fabric ports.
IBM 9730 - Power Cord - PDU Connection
IBM AHP6 - Power Cord - PDU Connection (C20)
IBM ALH0 - IBM Storage Expert Care Indicator
IBM ALH3 - Standard Config Indicator
IBM ALH4 - Indicates Utility Model
IBM AL0Q - Cyber Recovery Guarantee
IBM ALJ1 - Storage Expert Care Basic 1 Year
IBM ALJ2 - Storage Expert Care Basic 2 Year
IBM ALJ3 - Storage Expert Care Basic 3 Year
IBM ALJ4 - Storage Expert Care Basic 4 Year
IBM ALJ5 - Storage Expert Care Basic 5 Year
IBM ALK1 - #ALKZ, #ALC9 - #ALCQ) Expert Care Advanced features
IBM ALK1 - Storage Expert Care Advanced 1 Year
IBM ALK2 - Storage Expert Care Advanced 2 Year
IBM ALK3 - Storage Expert Care Advanced 3 Year
IBM ALK4 - Storage Expert Care Advanced 4 Year
IBM ALK5 - Storage Expert Care Advanced 5 Year
IBM ALK9 - Expert Care Advanced 4 hour Committed Fix 1 Year
IBM ALKA - Expert Care Advanced 6 hour Committed Fix 1 Year
IBM ALKB - Expert Care Advanced 8 hour Committed Fix 1 Year
IBM ALKC - Expert Care Advanced 12 hour Committed Fix 1 Year
IBM ALKD - Expert Care Advanced 24 hour Committed Fix 1 Year
IBM ALKE - Expert Care Advanced 48 hour Committed Fix 1 Year
IBM ALKF - Expert Care Advanced 72 hour Committed Fix 1 Year
IBM ALKJ - Expert Care Advanced 4 hour Committed Fix 2 Year
IBM ALKK - Expert Care Advanced 6 hour Committed Fix 2 Year
IBM ALKL - Expert Care Advanced 8 hour Committed Fix 2 Year
IBM ALKM - Expert Care Advanced 12 hour Committed Fix 2 Year
IBM ALKN - Expert Care Advanced 24 hour Committed Fix 2 Year
IBM ALKP - Expert Care Advanced 48 hour Committed Fix 2 Year
IBM ALKQ - Expert Care Advanced 72 hour Committed Fix 2 Year
IBM ALKT - Expert Care Advanced 4 hour Committed Fix 3 Year
IBM ALKU - Expert Care Advanced 6 hour Committed Fix 3 Year
IBM ALKV - Expert Care Advanced 8 hour Committed Fix 3 Year
IBM ALKW - Expert Care Advanced 12 hour Committed Fix 3 Year
IBM ALKX - Expert Care Advanced 24 hour Committed Fix 3 Year
IBM ALKY - Expert Care Advanced 48 hour Committed Fix 3 Year
IBM ALKZ - Expert Care Advanced 72 hour Committed Fix 3 Year
IBM ALC9 - Expert Care Advanced 4 hour Committed Fix 4 Year
IBM ALCA - Expert Care Advanced 6 hour Committed Fix 4 Year
IBM ALCB - Expert Care Advanced 8 hour Committed Fix 4 Year
IBM ALCC - Expert Care Advanced 12 hour Committed Fix 4 Year
IBM ALCD - Expert Care Advanced 24 hour Committed Fix 4 Year
IBM ALCE - Expert Care Advanced 48 hour Committed Fix 4 Year
IBM ALCF - Expert Care Advanced 72 hour Committed Fix 4 Year
IBM ALCJ - Expert Care Advanced 4 hour Committed Fix 5 Year
IBM ALCK - Expert Care Advanced 6 hour Committed Fix 5 Year
IBM ALCL - Expert Care Advanced 8 hour Committed Fix 5 Year
IBM ALCM - Expert Care Advanced 12 hour Committed Fix 5 Year
IBM ALCN - Expert Care Advanced 24 hour Committed Fix 5 Year
IBM ALCP - Expert Care Advanced 48 hour Committed Fix 5 Year
IBM ALCQ - Expert Care Advanced 72 hour Committed Fix 5 Year
IBM ALL1 - Expert Care Premium 1 Year
IBM ALL2 - Expert Care Premium 2 Year
IBM ALL3 - Expert Care Premium 3 Year
IBM ALL4 - Expert Care Premium 4 Year
IBM ALL5 - Expert Care Premium 5 Year
IBM ALL9 - Expert Care Premium 4 hour Committed Fix 1 Year
IBM ALLA - Expert Care Premium 6 hour Committed Fix 1 Year
IBM ALLB - Expert Care Premium 8 hour Committed Fix 1 Year
IBM ALLC - Expert Care Premium 12 hour Committed Fix 1 Year
IBM ALLD - Expert Care Premium 24 hour Committed Fix 1 Year
IBM ALLE - Expert Care Premium 48 hour Committed Fix 1 Year
IBM ALLF - Expert Care Premium 72 hour Committed Fix 1 Year
IBM ALLJ - Expert Care Premium 4 hour Committed Fix 2 Year
IBM ALLK - Expert Care Premium 6 hour Committed Fix 2 Year
IBM ALLL - Expert Care Premium 8 hour Committed Fix 2 Year
IBM ALLM - Expert Care Premium 12 hour Committed Fix 2 Year
IBM ALLN - Expert Care Premium 24 hour Committed Fix 2 Year
IBM ALLP - Expert Care Premium 48 hour Committed Fix 2 Year
IBM ALLQ - Expert Care Premium 72 hour Committed Fix 2 Year
IBM ALLT - Expert Care Premium 4 hour Committed Fix 3 Year
IBM ALLU - Expert Care Premium 6 hour Committed Fix 3 Year
IBM ALLV - Expert Care Premium 8 hour Committed Fix 3 Year
IBM ALLW - Expert Care Premium 12 hour Committed Fix 3 Year
IBM ALLX - Expert Care Premium 24 hour Committed Fix 3 Year
IBM ALLY - Expert Care Premium 48 hour Committed Fix 3 Year
IBM ALLZ - Expert Care Premium 72 hour Committed Fix 3 Year
IBM ALD9 - Expert Care Premium 4 hour Committed Fix 4 Year
IBM ALDA - Expert Care Premium 6 hour Committed Fix 4 Year
IBM ALDB - Expert Care Premium 8 hour Committed Fix 4 Year
IBM ALDC - Expert Care Premium 12 hour Committed Fix 4 Year
IBM ALDD - Expert Care Premium 24 hour Committed Fix 4 Year
IBM ALDE - Expert Care Premium 48 hour Committed Fix 4 Year
IBM ALDF - Expert Care Premium 72 hour Committed Fix 4 Year
IBM ALDJ - Expert Care Premium 4 hour Committed Fix 5 Year
IBM ALDK - Expert Care Premium 6 hour Committed Fix 5 Year
IBM ALDL - Expert Care Premium 8 hour Committed Fix 5 Year
IBM ALDM - Expert Care Premium 12 hour Committed Fix 5 Year
IBM ALDN - Expert Care Premium 24 hour Committed Fix 5 Year
IBM ALDP - Expert Care Premium 48 hour Committed Fix 5 Year
IBM ALDQ - Expert Care Premium 72 hour Committed Fix 5 Year
IBM ALF0 - #ALFV) IBM Storage Assurance
IBM ALF0 - IBM Storage Assurance 1 Year Upfront
IBM ALF1 - IBM Storage Assurance 2 Years Upfront
IBM ALF2 - IBM Storage Assurance 3 Years Upfront
IBM ALF3 - IBM Storage Assurance 4 Years Upfront
IBM ALF4 - IBM Storage Assurance 5 Years Upfront
IBM ALF5 - IBM Storage Assurance 6 Years Upfront
IBM ALF6 - IBM Storage Assurance 7 Years Upfront
IBM ALF7 - IBM Storage Assurance 8 Years Upfront
IBM ALF8 - IBM Storage Assurance 1 Year Annual
IBM ALF9 - IBM Storage Assurance 2 Years Annual
IBM ALFA - IBM Storage Assurance 3 Years Annual
IBM ALFB - IBM Storage Assurance 4 Years Annual
IBM ALFC - IBM Storage Assurance 5 Years Annual
IBM ALFD - IBM Storage Assurance 6 Years Annual
IBM ALFE - IBM Storage Assurance 7 Years Annual
IBM ALFF - IBM Storage Assurance 8 Years Annual
IBM ALFG - IBM Storage Assurance 1 Year Quarterly
IBM ALFH - IBM Storage Assurance 2 Years Quarterly
IBM ALFI - IBM Storage Assurance 3 Years Quarterly
IBM ALFJ - IBM Storage Assurance 4 Years Quarterly
IBM ALFK - IBM Storage Assurance 5 Years Quarterly
IBM ALFL - IBM Storage Assurance 6 Years Quarterly
IBM ALFM - IBM Storage Assurance 7 Years Quarterly
IBM ALFN - IBM Storage Assurance 8 Years Quarterly
IBM ALFO - IBM Storage Assurance 1 Year Monthly
IBM ALFP - IBM Storage Assurance 2 Years Monthly
IBM ALFQ - IBM Storage Assurance 3 Years Monthly
IBM ALFR - IBM Storage Assurance 4 Years Monthly
IBM ALFS - IBM Storage Assurance 5 Years Monthly
IBM ALFT - IBM Storage Assurance 6 Years Monthly
IBM ALFU - IBM Storage Assurance 7 Years Monthly
IBM ALFV - IBM Storage Assurance 8 Years Monthly
IBM AHZC - VersaStack Solution Indicator
This feature indicates the machine is a component within a VersaStack Solution.
IBM AHZD - All Flash Indicator
This feature indicates the machine is configured as an All Flash Solution and hard disk drives are not allowed for selection.
IBM AHZE - Hybrid Flash Indicator
This feature indicates the machine is configured as an Hybrid Flash Solution and a combination of flash and disk drives is allowed.
IBM AJGH - Red Hat OpenShift Indicator
This feature indicates the machine is a component within a RedHat OpenShift Solution.
IBM AE00 - Variable Usage 1TB/month
This feature is used to purchase the variable capacity used in the utility model. The feature provides (feature AE00: 1, AE01: 10, AE02: 100) TB of capacity beyond the base subscription on the system. Usage is based upon the average capacity used, per month. The total of the prior three months' usage should be totaled, and the corresponding number of AE00, AE01, and AE02 features ordered quarterly.
IBM AE01 - Variable Usage 10TB/month
This feature is used to purchase the variable capacity used in the utility model. The feature provides (feature AE00: 1, AE01: 10, AE02: 100) TB of capacity beyond the base subscription on the system. Usage is based upon the average capacity used, per month. The total of the prior three months' usage should be totaled, and the corresponding number of AE00, AE01, and AE02 features ordered quarterly.
IBM AE02 - Variable Usage 100TB/month
This feature is used to purchase the variable capacity used in the utility model. The feature provides (feature AE00: 1, AE01: 10, AE02: 100) TB of capacity beyond the base subscription on the system. Usage is based upon the average capacity used, per month. The total of the prior three months' usage should be totaled, and the corresponding number of AE00, AE01, and AE02 features ordered quarterly.
IBM AHY1 - Storage as a Service Indicator
This feature indicates the machine is being deployed under a Storage as a Service offering.
IBM ADN3 - Order Type 3 Indicator - FC Only
IBM B0NQ - SP Hard Drive/Media Retention - Storage 3 years
IBM B0PF - SP Hard Drive/Media Retention - Storage 5 years
IBM B0N1 - SP Basic Selection for Storage 3 years
IBM B0PK - SP Basic Selection for Storage 5 years
IBM B0SK - ServicePac Machine Setup Support for Storage
