IBM AS400 iSeries IBM EMXF PCIe Gen3 PCIe3 6-Slot Expansion Module The IBM EMXF is a PCIe3 6-slot fanout module for the IBM EMX0 PCIe3 Expansion Drawer that provides s.. Product #: EMXF-50CB-00TK674

IBM EMXF 50CB 00TK674 PCIe3 6-Slot EMX0 Fanout Module

Brand: IBM AS400 iSeries
Model Number: EMXF-50CB-00TK674
Custom Field 1 (UPC): 50CB
Custom Field 4 (MPN): 00TK674

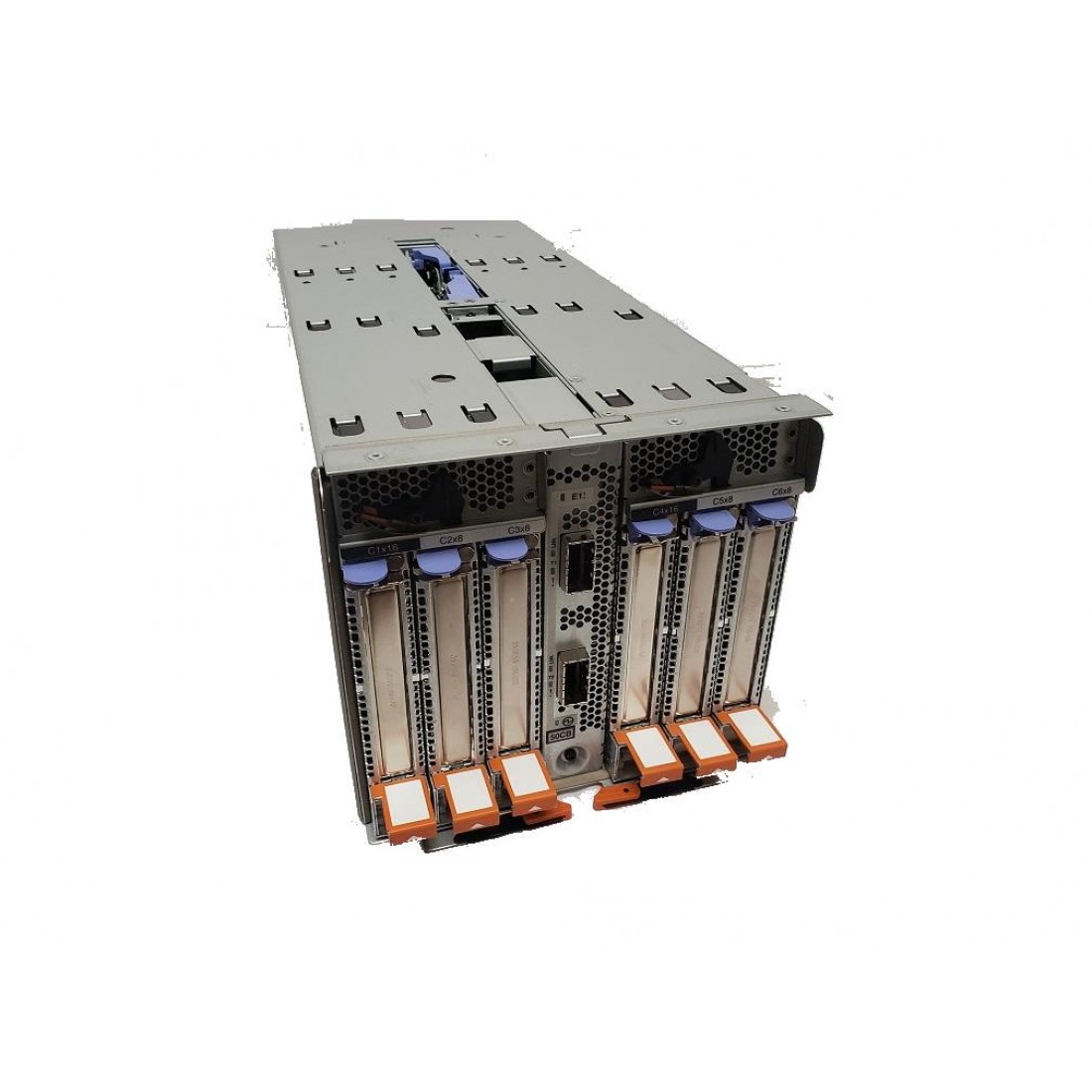

IBM EMXF PCIe3 6-Slot EMX0 Fanout Module 50CB 00TK674

The IBM EMXF is a PCIe3 6-slot fanout module for the IBM EMX0 PCIe3 Expansion Drawer that provides six full-length, regular-height, PCIe3 slots. The EMXF PCIe3 slots are compatible with generation 2 or generation 1 PCIe adapters, and use generation 3, single-wide, blind-swap cassettes. The IBM EMXF fanout module has 50CB CCIN and 00TK674 part number.

The IBM EMXG (50CD 02AE920) is the updated technology version of the original EMXF fanout module. Features EMXG and EMXF are functionally identical, but feature EMXG implements a small physical change to enable a larger set of potential PCIe adapters to be housed. Features EMXG and EMXF can be intermixed in the same drawer. There is no difference in firmware or software prerequisites for the feature EMXF and EMXG. Features EMXG and EMXF use the same BSC.

IBM Power9 and Power8 systems can have an enhanced PCIe3 6-Slot Fanout Module for PCIe 3.0 I/O Expansion Drawer (EMXG and ELMG). The IBM EMXO drawer provides six PCIe Gen3 full-high, full-length slots (2 x 16 and 4 x 8). The PCIe slots are hot-plug capable. With firmware 8.4, or later, the fanout module supports concurrent maintenance, though obviously while offline, all of its PCIe slots are also offline. Blind swap cassettes are used for the PCIe slots. The blind swap cassettes (BSC) are interchangeable with the 12X PCIe I/O Drawer BSC (5802, 5877, 5803, 5873).
The PCIe 3.0 6-Slot Fanout Module for PCIe 3.0 Expansion Drawer provides the same functionality as the previously announced Fanout Module (EMXF, ELMF), but a small physical change has been implemented to enable a larger set of potential PCIe adapters to be accommodated.

Note: IBM EMXF and EMXG CCIN 50CB PCIe3 6-slot fanout module must use the following PCIe3 cable adapters: CCIN 2B1C, 2CE2, or 6B52. The IBM EJ1R (58FF 02AE884) adapter only works with the CCIN 50CD PCIe3 6-slot fanout module.

The IBM EMX0 is supported on the following IBM Power Systems: 8286-41A, 8286-42A, 8284-22A, 8408-44E, 8408-E8E, 9009-22A, 9009-41A, 9009-42A, 9080-MHE, 9080-MME, 9119-MHE, 9119-MME, 9223-22H, 9223-42H

IBM i, AIX and Linux OS Requirements for IBM EMX0:

IBM i 7.1 with i 7.1.0 machine code: RS710-10 OS & RS710-M LIC, C4283710 + HIPER PTF Group,
IBM i 7.2 with i 7.2.0 machine code: RS720-00 OS & RS720-D LIC, C4276720 + HIPER PTF Group,
IBM i 7.2: RS720-00 OS & TR8 PTF Group (SF99717 Level 8), C8032720 + HIPER PTF Group,
IBM i 7.3: RS730-00 OS & TR4 PTF Group (SF99727 Level 4), C8025730 + HIPER PTF Group,
IBM i as a client of VIOS, IBM i 7.1: RS710-10 OS & TR9 (TR PTF Group SF99707 Level 9) with VIOS 2.2.3.4, C4283710 + HIPER PTF Group
IBM i as a client of VIOS, IBM i 7.2: RS720-00 OS & TR1 (TR PTF Group SF99717 Level 1) with VIOS 2.2.3.4, C4276720 + HIPER PTF Group
IBM i as a client of VIOS, IBM i 7.3: RS730-00 OS & TR4 PTF Group (SF99727 Level 4) with VIOS 2.2.6.21, C8025730 + HIPER PTF Group
AIX 6.1 with Technology Level 6100-09 and Service Pack 6100-09-11-1810
AIX 7.1 with Technology Level 7100-04 and Service Pack 7100-04-06-1806
AIX 7.1 with Technology Level 7100-05 and Service Pack 7100-05-02-1810
AIX 7.2 with Technology Level 7200-00 and Service Pack 7200-00-06-1806
AIX 7.2 with Technology Level 7200-01 and Service Pack 7200-01-04-1806
AIX 7.2 with Technology Level 7200-02 and Service Pack 7200-02-02-1810
HMC Firmware V8R8.2.0, MH01454
Linux / PowerVM, Red Hat Enterprise Linux 7.4 for Power LE version,
Linux / PowerVM, Red Hat Enterprise Linux for SAP with Red Hat Enterprise Linux 7 for Power LE, version 7.4
Linux / PowerVM, SUSE Linux Enterprise Server for SAP with SUSE Linux Enterprise Server 11 Service Pack 4
Linux / PowerVM, SUSE Linux Enterprise Server, SLES 12 SP 3,
Linux / PowerVM, Ubuntu Server 16.04.4,
PowerVM Virtual I/O Server, VIOS 2.2.6.21,
PowerVM Virtual I/O Server, IV63331 or later,
RHEL, Base Red Hat Enterprise Linux 6.5 or later,
Server Firmware, Base server firmware for 9119-MME and 9119-MHE FW 820.01, SC820_0xx_0xx
SLES, Base SUSE Linux Enterprisee server level for level for 9119-MME and 9119-MHE SLES 11 SP3
