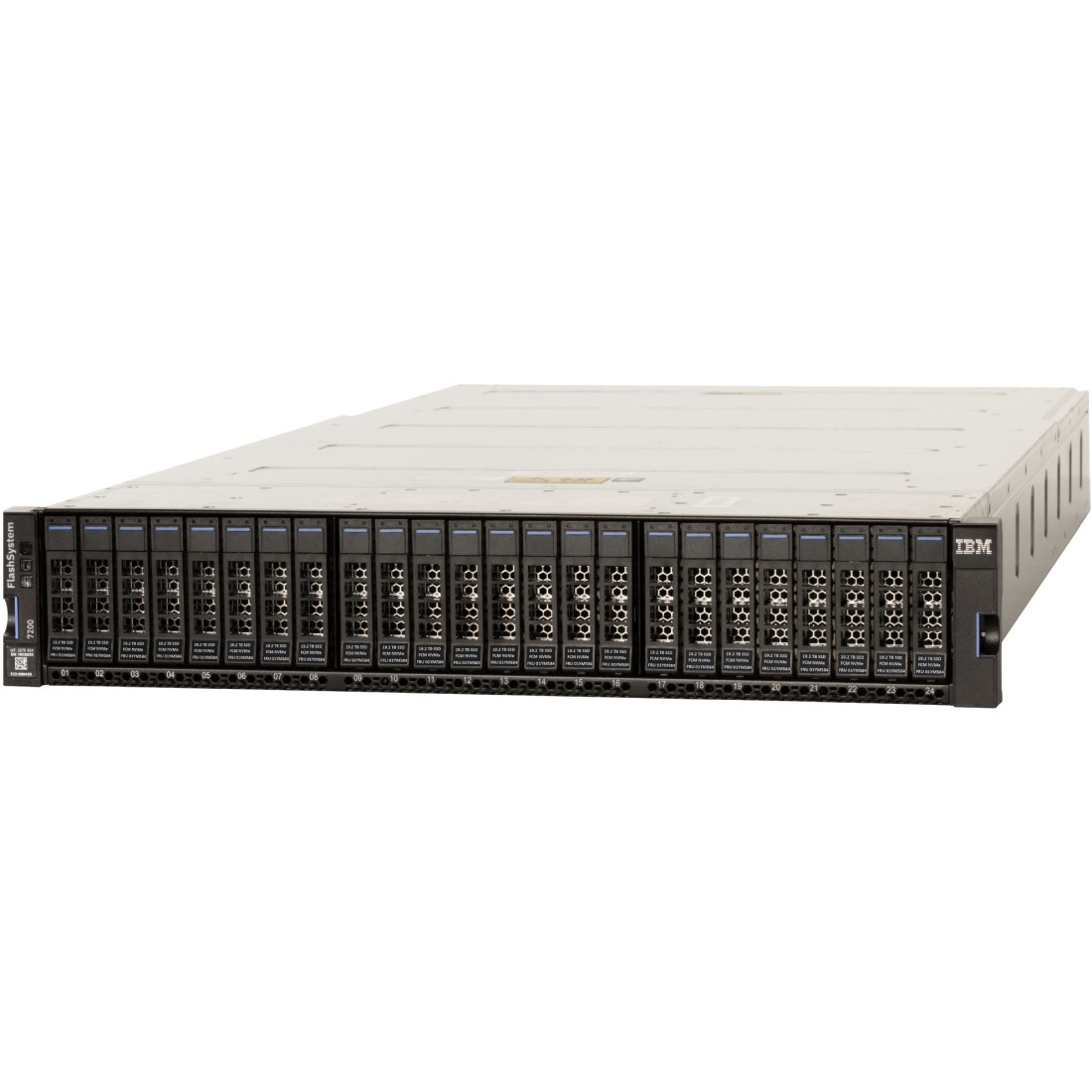

2076-724 IBM V7000 Storwize Storage System

IBM V7000 Storwize 2076-724 is a virtualized, software-defined storage system comprised of hardware components and a requisite licensed software product, IBM Spectrum Virtualize Software. All functional capabilities for the IBM V7000 Storwize 2076-724 storage system are provided through IBM Spectrum Virtualize software. Contact us via email or phone with specific configuration requirements, upgrades, IBM V7000 used replacement parts and pricing.

128 GB-1,125 GB Cache, 4,608 GB Cache Clustered
19.6 GB/s 256Kb read mis, 78 GB/s Bandwidth
3.5 Million IOPS 4K read hit per system, 4.8 Million Clustered
1.2 Million IOPS, 4.8 Million Clustered
50 microseconds latency
24 I/O Ports
461TB per enclosure, 32 PB Clustered
116 TB FlashCore Modules
760 drives per system or 3,040 drives Clustered
NVMe FlashCore Modules FCM 2.5-inch: 4.8 TB, 9.6 TB and 19.2 TB
NVMe Storage Class Memory SCM 3.5-inch: 375 GB, 750 GB, 800 GB and 1.6 TB
NVMe Industry Standard 2.5-inch: 800 GB, 1.6 TB, 1.92 TB, 3.84 TB, 7.68 TB and 15.36
SSD SAS 2.5-inch flash drives supported: 800 GB, 1.6 TB, 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB, and 30.72TB
15K SAS 2.5-inch HDD supported: 600 GB and 900 GB
10K SAS 2.5-inch disk drives supported: 600 GB, 900 GB, 1.2 TB, 1.8 TB and 2.4 TB
7.2K nearline SAS HDD supported: 2 TB
3.5-inch disk drives supported: 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, and 14 TB
All drives are dual-port and hot-swappable. Drives can be intermixed where applicable. Expansion enclosures can be intermixed behind the SFF control enclosure.

The 7026-724 is a third-generation IBM V7000 SAN that is only available in refurbished or used condition, and includes warranty and support during normal business hours. Other IBM V7000 generation models include second generation 7026-624 and 7026-524, and first generation 7026-324 7026-312 7026-124 and 7026-112. The 7026-92F, 7026-24F and 7026-12F expansion enclosures are also supported with the newer IBM 7026 IBM V7000 SFF Control Enclosure models.

IBM V7000 Storwize 2076-724 consists of:
Two node canisters, each with two 8-core processors and integrated hardware-assisted compression acceleration
128 GB cache (64 GB per canister) standard with options from 256 GB to 1.15 TB cache (per system)
Eight 10 Gb Ethernet ports standard for iSCSI connectivity
16 Gb FC connectivity options with FC-NVMe support
25 Gb Ethernet connectivity options with iSCSI and iSER (RoCe V2 and iWARP) support
12 Gb SAS ports for expansion enclosure attachment
Twenty-four slots for 2.5-inch NVMe flash drives
2U, 19-inch rack mount enclosure with AC power supplies

Existing IBM V7000 Storwize 2076 expansion enclosure models 2076-12F, 2076-24F and 2076-92F can be attached to an IBM V7000 Storwize 2076-724 or 2076-U7B.

IBM V7000 Storwize 2076-92F HD LFF Expansion Enclosure includes:
Two expansion canisters
12 Gb SAS ports for control enclosure and expansion enclosure attachment
Ninety-two slots for SAS drives in a 3.5-inch carrier
5U, 19-inch rack-mount enclosure with AC power supplies
FC and Ethernet connectivity with intermix flexibility

IBM V7000 Storwize 2076-24F SFF Expansion Enclosure includes:
Two expansion canisters
12 Gb SAS ports for control enclosure and expansion enclosure attachment
Twenty-four slots for 2.5-inch SAS drives
2U, 19-inch rack-mount enclosure with AC power supplies

IBM V7000 Storwize 2076-12F LFF Expansion Enclosure includes:
Two expansion canisters
12 Gb SAS ports for control enclosure and expansion enclosure attachment
Twelve slots for 3.5-inch SAS drives
2U, 19-inch rack-mount enclosure with AC power supplies

Large Form Factor LFF 3.5-Inch SAS Drives Supported
IBM AH70 600GB 15K 3.5 Inch HDD 01LJ061
IBM AH71 900GB 15K 3.5 Inch HDD 01LJ062
IBM AH73 1.2TB 10K 3.5 Inch HDD 01LJ062
IBM AH74 1.8TB 10K 3.5 Inch HDD 01LJ063 01NN111
IBM AH75 2.4TB 10K 3.5 Inch HDD 01YM178 01YM164 01YM166
IBM AH77 6TB 7.2K 3.5 Inch Nearline HDD 01LJ064 01LK200 01LK198
IBM AH78 8TB 7.2K 3.5 Inch Nearline HDD 01LJ065 01LK203 01LK205
IBM AH79 10TB 7.2K 3.5 Inch Nearline HDD 01LJ066 01LJ333 01LJ494
IBM AH7A 12TB 7.2K 3.5 Inch Nearline HDD 01YM177 01YM179
IBM AH7B 14TB 7.2K 3.5 Inch Nearline HDD 03JK435
IBM AH7D 1.6TB 3.5 Inch Flash Drive 01LJ067
IBM AH7E 3.2TB 3.5 Inch Flash Drive 01LJ068
IBM AH7J 1.92TB 3.5 Inch Flash Drive 01LJ069
IBM AH7K 3.84TB 3.5 Inch Flash Drive 01LJ070
IBM AH7L 7.68TB 3.5 Inch Flash Drive 01LJ071
IBM AH7M 15.36TB 3.5 Inch Flash Drive 01LJ072
IBM AH7N 30.72TB 3.5 Inch Flash Drive 02PX471
IBM AHD1 2TB 7.2K 3.5 Inch Nearline HDD 00AR320 00AR415 00AR485
IBM AHD2 3TB 7.2K 3.5 Inch Nearline HDD 00AR321 00AR418 00AR496 00NC515
IBM AHD3 4TB 7.2K 3.5 Inch Nearline HDD 00AR322 00AR421
IBM AHD4 6TB 7.2K 3.5 Inch Nearline HDD 00RX911
IBM AHD5 8TB 7.2K 3.5 Inch Nearline HDD 01LJ065 00WK782 00WK785 00WK867 00WK880 00WK897
IBM AHD6 10TB 7.2K 3.5 Inch Nearline HDD 01EJ990 01LJ390 01LJ502 01KP828
IBM AHD7 12TB 7.2K 3.5 Inch Nearline HDD 01YM177 01YM157 01YM159
IBM AHD8 14TB 7.2K 3.5 Inch Nearline HDD

Small Form Factor SFF 2.5-Inch SAS Drives Supported:
IBM AHE1 300GB 15K 2.5 Inch HDD 00AR324 00AR388 00MJ309
IBM AHE2 600GB 15K 2.5 Inch HDD 00AR323 00AR391
IBM AHE3 900GB 15K 2.5 Inch HDD 01LJ830 01LJ832 01LJ835
IBM AHF1 600GB 10K 2.5 Inch HDD 00AR325 00AR394 00AR478
IBM AHF2 900GB 10K 2.5 Inch HDD 00AR326 00AR397 01LJ786 01LJ791 01LJ793
IBM AHF3 1.2TB 10K 2.5 Inch HDD 00AR327 00AR400 00AR480
IBM AHF4 1.8TB 10K 2.5 Inch HDD 00RX908 00RY111 01NN110 01NN124
IBM AHF5 2.4TB 10K 2.5 Inch HDD 01YM176 00VN497 01YM150 01YM152
IBM AHG1 1TB 7.2K 2.5 Inch Nearline HDD 00AR328 00AR403 00AR481
IBM AHG2 2TB 7.2K 2.5 Inch Nearline HDD 00WK780 00WK781 01LT077
IBM AHH1 200GB 2.5 Inch Flash Drive 00AR329 00AR482 00FG708
IBM AHH2 400GB 2.5 Inch Flash Drive 00AR330 00AR483 00AR409
IBM AHH3 800GB 2.5 Inch Flash Drive 00AR331 00AR412 00AR484
IBM AHH4 1.6TB 2.5 Inch Flash Drive 00RX913 00FG711 00WC016 00RY120
IBM AHH5 3.2TB 2.5 Inch Flash Drive 01AC342 00VN232 00VN226 01EJ978 01AC409
IBM AHH9 800GB 3DWPD 2.5 Inch Flash Drive 02JE800
IBM AHHA 1.92TB 2.5 Inch Read Intensive Flash Drive 01EJ594 01EJ796 02PX339 02PX347 AHHG
IBM AHHB 3.84TB 2.5 Inch Read Intensive Flash Drive 01EJ596 01EJ952 01EJ594 02PX340 02PX350 02PX352 AHHH
IBM AHHC 7.68TB 2.5 Inch Flash Drive 01EJ993 01YM647 01YM651 01YM909 00VN246 00VN330 00VN343 01LJ399 01LJ498 02PX355 AHHJ
IBM AHHD 15.36TB 2.5 Inch Flash Drive 01EJ994 00VN248 AHHK
IBM AHHG 1.92TB 2.5 Inch Read Intensive Flash Drive 01EJ594 01EJ796 02PX339 02PX347 AHHA
IBM AHHH 3.84TB 2.5 Inch Read Intensive Flash Drive 01EJ596 01EJ952 01EJ594 02PX340 02PX350 02PX352 AHHB
IBM AHHJ 7.68TB 2.5 Inch Flash Drive 01EJ993 01YM647 01YM651 01YM909 00VN246 00VN330 00VN343 01LJ399 01LJ498 02PX355 AHHC
IBM AHHK 15.36TB 2.5 Inch Flash Drive 01EJ994 00VN248 AHHD
IBM AHHL 30.72TB 2.5 Inch Flash Drive

A single IBM V7000 Storwize 2076-724 control enclosure can support up to 20 Storwize V7000 expansion enclosures with a maximum of 760 drives per system. Expansion enclosures are designed to be dynamically added with no downtime, helping to quickly and seamlessly respond to growing capacity demands. With four-way clustering of IBM V7000 Storwize 2076-724 systems, the size of the system can be increased to a maximum of 3,040 drives. Storwize V7000 Model 724 systems can be added into existing Storwize V7000 clustered systems that include previous generation Storwize V7000 systems.

Further scalability can be achieved with virtualization of external storage. When Storwize V7000 virtualizes an external system, capacity in that external system inherits the functional richness and ease of use of Storwize 7000.

Storwize V7000 Model 724 supports encryption for data at rest. Encryption is performed by the Storwize V7000 control enclosure for data stored within the Storwize V7000 system (Storwize V7000 control enclosure and all attached Storwize V7000 expansion enclosures) and for data stored in externally virtualized storage subsystems. Encryption is enabled on Storwize V7000 through the acquisition of the Encryption Enablement feature. This feature enables encryption on the entire Storwize V7000 system (Storwize V7000 control enclosure and all attached Storwize V7000 expansion enclosures) and externally virtualized storage subsystems. The Encryption USB Flash Drives (Four Pack) feature or IBM Security Key Manager (SKLM) are required for encryption keys management.

IBM Spectrum Virtualize combines a variety of IBM technologies, including deduplication, compression, thin provisioning, and SCSI Unmap, HyperSwap (high-availability solution), Easy Tier (automatic and dynamic data tiering), encryption of internal and external virtualized storage, FlashCopy (snapshot), and remote data replication. These technologies are designed to enable Storwize V7000 to offer a rich set of functional capabilities and deliver extraordinary levels of storage efficiency when used together.

Storwize V7000 functional capabilities are provided through IBM Spectrum Virtualize Software for Storwize 7000. For additional information about Storwize V7000 functional capabilities and software, see the materials listed in the Reference Information section.

IBM Storage Insights is included, provides a single dashboard that gives you a clear view of all your IBM block storage. You'll be able to make better decisions by seeing trends in performance and capacity. Storage health information enables you to focus on areas needing attention and when IBM support is needed, Storage Insights simplifies uploading logs, speeds resolution with online configuration data, and provides an overview of open tickets all in one place. Storage Insights Pro is a subscription service that provides longer historical views of data, more reporting and optimization options, and supports IBM file and block storage together with EMC VNX and VMAX. There is no ordering required. For registration and installation information, see the IBM Storage Insights Enrollment website.

Flash wear guarantee
IBM Storwize V7000 is backed by a flash wear guarantee through the applicable warranty period, plus up to six years of optional post- warranty hardware maintenance. Should flash drives fail because of flash wear while under warranty or a hardware maintenance agreement, IBM will replace the affected drives at no additional charge.
