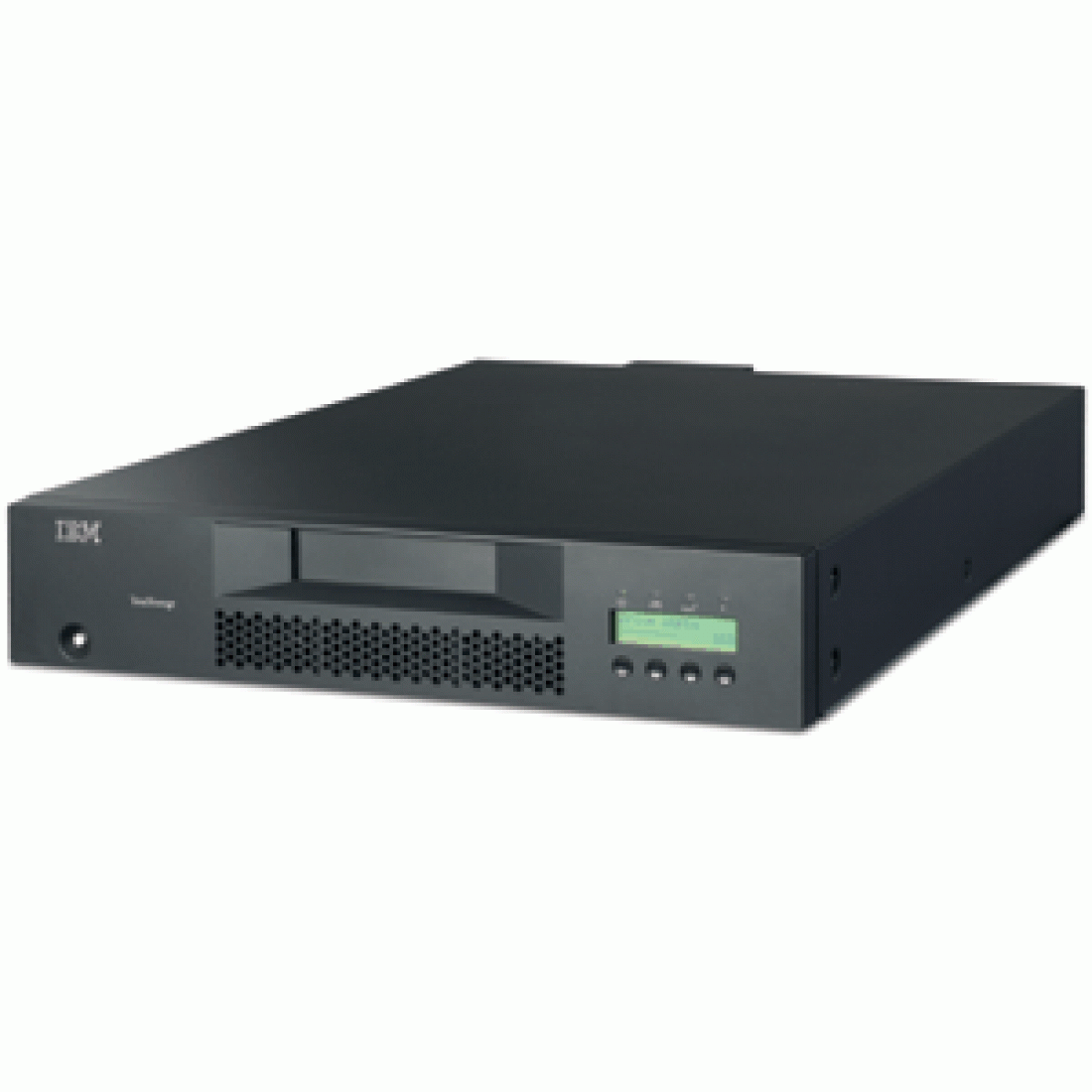

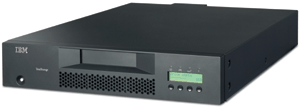

IBM 3581 F38 Ultrium 3 2Gbps Fibre 8 Slot Autoloader

The IBM 3581 Tape Autoloader Model F38 has 8 cartridge slots, a 400 GB native data capacity, 800 GB data capacity with compression, 1 Ultrium 3 tape drive, Native Switched Fabric 2Gbps Fibre channel attachment, and language support.

Maximum data transfer rates are  80 MB/Sec Native and up to 160MB/Sec if 2:1 compression is achieved.

Additional options for this model are;

• Bar Code Reader (Feature Code 7004)
• Remote Management Unit (RMU) (Feature Code 1660)
• Rack Mount Kit (Feature Code 7003)

• LTO3 400/800GB Data Cartridges
• LTO Cleaning Cartridges

The IBM 3581-F38 is supported by the following operating systems;

• OS/400 V5R2, or later
• AIX 5L V5.1, V5.2, V5.3, or later
• Sun Solaris 8, 9
• Microsoft Windows 2000 (build 2195, or greater)
• Microsoft Windows 2003 (build 3790, or greater)
• HP-UX 11.0 and HP-UX 11i (64-bit). HP-UX patches may be required.
• Linux distributions: Red Hat Enterprise Linux version 3, SUSE LINUX Enterprise Server 8

The Model F38 has a Fibre Channel interface. The 3581 Tape Autoloader can be attached to the IBM eServer i5 and iSeries, IBM eServer p5 and pSeries, IBM eServer xSeries, AS/400, RS/6000, RS/6000 SP systems, Netfinity, and non-IBM servers, workstations, and personal computers that support those interface specifications.

Weight & Dimensions

• Width: Rack mount 19 in, stand-alone 16.6 in
• Depth: Rack mount 34 in, stand-along 26.2 in
• Height: Rack mount 3.5 in, stand-alone 3.4 in
• Maximum weight: 12.5 lb without rack mount, Aproximate weight with rack mount kit is 19 lbs.
