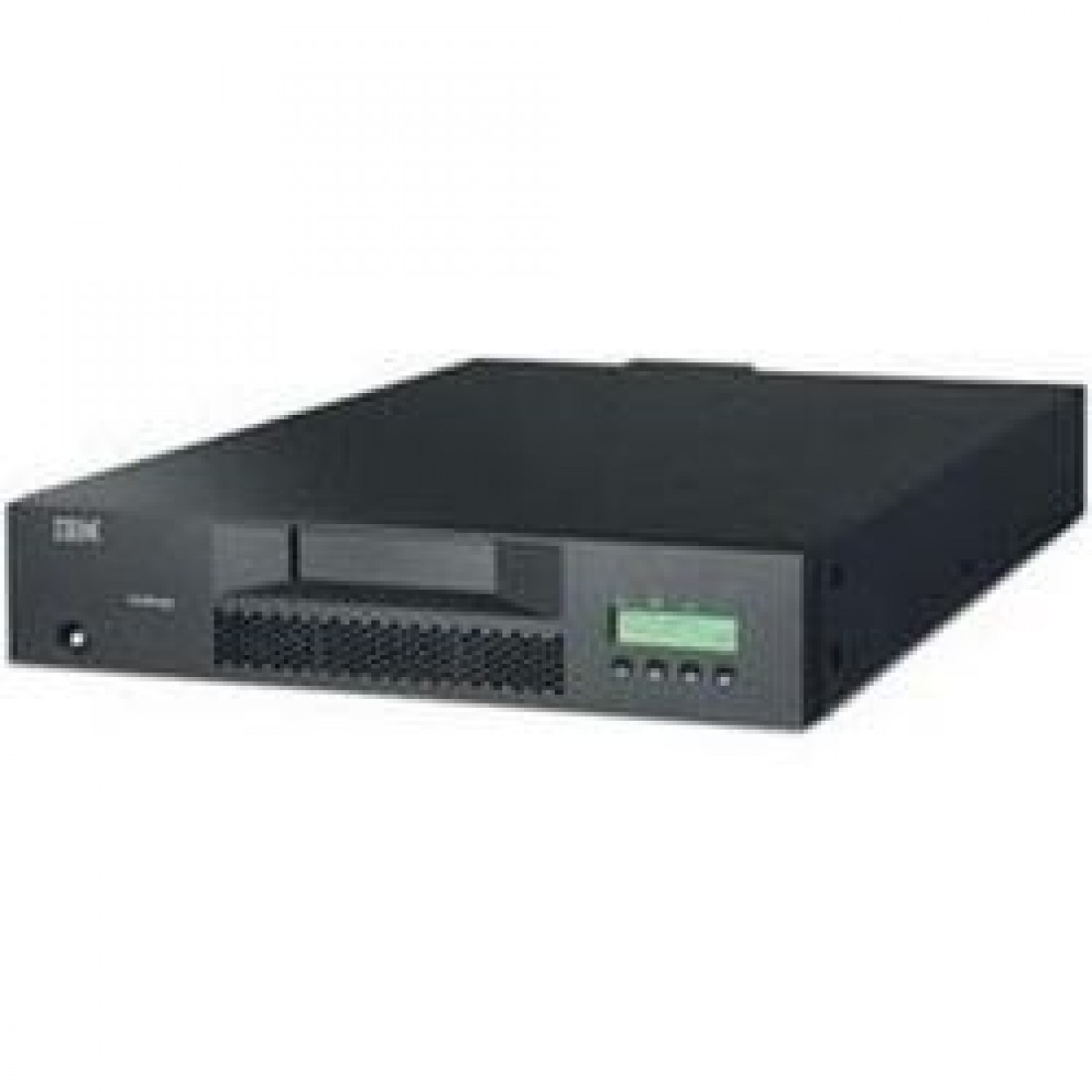

IBM 3581 F28 Ultrium 2 2Gbps Fibre 8 Slot Autoloader

The IBM 3581 Model F28 features a single LTO2 tape drive with an 8 cartridge autoloader carousel. The IBM 3581 Model F28 comes with a Native Switched Fabric Fibre Channel attachment. Each LTO2 Cartridge is capable of storing 200GB Native and up to 400GB assuming 2:1 compression.

Maximum data transfer rates are 35MB/Sec native and up to 70MB/Sec if 2:1 compression is achieved.


Additional options for this model are;

• Bar Code Reader (Feature Code 7004)
• Remote Management Unit (RMU) (Feature Code 1660)
• Rack Mount Kit (Feature Code 7003)
• LTO2 200/400GB Data Cartridges
• LTO Cleaning Cartridges
• LC-LC Fibre Channel Cables in 13m and 25m lengths.

The IBM 3581-F28 is supported by the following operating systems;

• OS/400 V5R1, or later
• AIX 5L V5.1, V5.2, V5.3, or later
• Sun Solaris 7, 8, 9
• Microsoft Windows 2000 (build 2195, or greater)
• Microsoft Windows 2003 (build 3790, or greater)
• HP-UX 11.0 and HP-UX 11i (64-bit).
• Linux distributions:

•      Red Hat Enterprise Linux 3

•      United Linux 1.0, which includes the following distributions:

          o SuSE Linux Enterprise Server 8 (SLES 8)
          o Turbolinux Enterprise Server 8 (TLES 8)
          o Connectiva Linux Enterprise Edition Powered by United    Linux


The Ultrium Tape 2U Autoloader 3581 can be attached to the iSeries, pSeries, xSeries, AS/400, RS/6000, RS/6000 SP systems, Netfinity, and non-IBM servers, SAN switches, workstations, and personal computers that support 2Gbps Fibre Channel interface specifications.

Weight & Dimensions

• Width: Rack mount 19 in, stand-alone 16.6 in
• Depth: Rack mount 34 in, stand-along 26.2 in
• Height: Rack mount 3.5 in, stand-alone 3.4 in
• Maximum weight: 12.5 lb without rack mount, Aproximate weight with rack mount kit is 19 lbs.

Units ship with 5 Meter LC/LC Fibre Channel cable and power cord unless otherwise specified.
