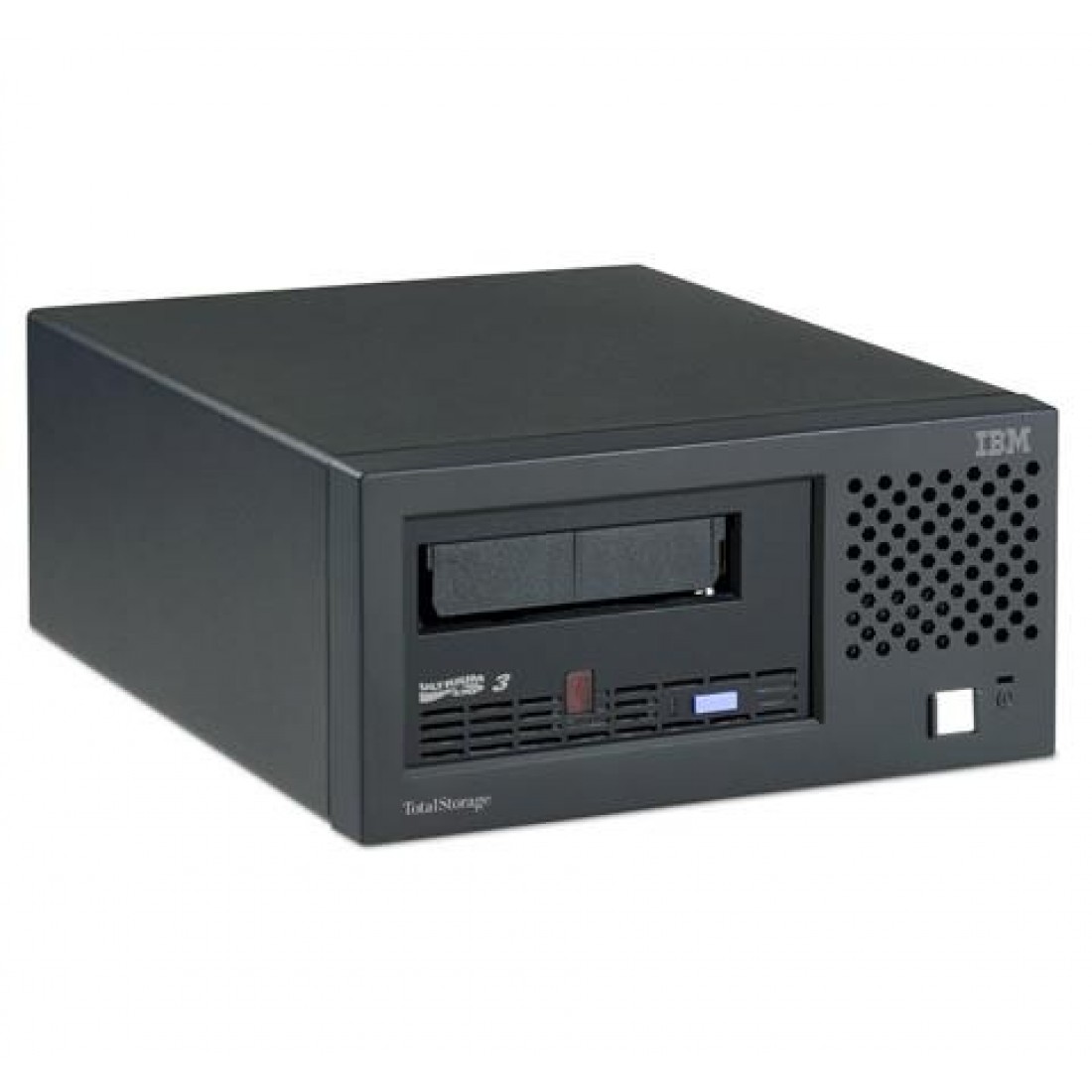

IBM 3580 L33 Ultrium 3 Single External LVD SCSI Tape Drive
The IBM 3580 Ultrium 3 Tape Drive Model L33 incorporates the Linear Tape-Open (LTO) IBM TotalStorage Ultrium 3 Tape Drive, which more than doubles maximum tape drive throughput data rate performance over the LTO generation 2 Tape Drive (Ultrium 2), up to 80 MB/sec native data transfer rate. In addition, with the use of the IBM TotalStorage LTO Ultrium 400 GB Data Cartridge the Ultrium 3 Tape Drive doubles the tape cartridge capacity up to 400 GB native physical capacity (800 GB with 2:1 compression). IBM Ultrium 3 Tape Drives can read and write LTO Ultrium 2 Data Cartridges and read LTO Ultrium 1 Data Cartridges. The Model L33 comes with a SCSI Ultra160 LVD attachment, for connection to a wide spectrum of open system servers.
Maximum data transfer rates are 80MB/Sec Native and 140MB/Sec if 2:1 compression is achieved.
Additional options for this model are;
- Feature 7003 Rack Mount Shelf for 3580
- LTO3 400/800GB Data Cartridges
- LTO Cleaning Cartridges
- VHDCI-HD68 LVD SCSI Cables in 4.5m, 10.0m, & 25.0m Lengths
The 3580-L33 is supported by the following operating systems;
- OS/400 V5R2, or later
- i5/OS V5R3, or later
- AIX V5.1, V5.2, V5.3, or later
- Sun Solaris 8, 9, 10
- Microsoft Windows 2000 (build 2195, or greater)
- Microsoft Windows 2003 (build 3790, or greater)
- HP-UX 11.0 and HP-UX 11.i. HP-UX 11.23 PI
- Linux distributions: Red Hat Enterprise Linux 4, SUSE Linux Enterprise Server 9, Asianux 2.0
The Model L33 has an Ultra160 SCSI Low Voltage Differential (LVD) interface. Similar to previous models, the 3580 Tape Drive can be attached to the IBM System i and i5, IBM System p and p5, xSeries, and non-IBM servers, workstations, and personal computers that support those interface specifications.
Weight & Dimensions
- Width: 9.85 in.
- Depth: 11.5 in.
- Height: 4.75 in.
- Maximum Weight: 14.2 lbs.
