IBM 3584-D32 Library Expansion Frame
IBM 3576-E9U TS3310 Tape Library Expansion Module
IBM AS400 iSeries IBM 3573-L3S TS3100 Tape Library Express Model 3573-L3S - TS3100 Tape Library with Feature 8043 IBM Ultrium 3 tape drive, LVD Ultra160 SCSI attach,.. Product #: 3573 L3S

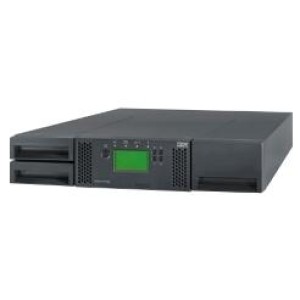

IBM 3573-L3S TS3100 Tape Library Express Model

Brand: IBM AS400 iSeries
Model Number: 3573 L3S

3573-L3S - TS3100 Tape Library with Feature 8043 IBM Ultrium 3 tape drive, LVD Ultra160 SCSI attach, rack mount kit, US/CAN 110V
power cord, and rack to PDU line cord. The 3573 TS3100 Tape Library Model L2U is an external 2U stand-alone or rack-mountable unit that is designed for the heavy demands of backup tape storage. The TS3100 Supports 24 cartridge slots, includes a standard one-
cartridge I/O station, remote management unit, and bar code reader as base features. The TS3100 is sold under several other express
ship model codes as well. The express models are simply pre-configured 3573-L2Us by IBM. Midland can configure the any TS3100 to the same specs as a particular express model or to suit your specific requirements.

Maximum data transfer rate for LTO3 SCSI is 80MB/Sec Native and 140MB/Sec assuming 2:1 compression.

The TS3100 Tape Library is supported on the following operating systems at the minimum levels indicated:

  • iSeries with OS/400, V5R3, V5R3M5, V5R4
  • AIX 5L V5.1, V5.2, or V5.3
  • Sun Solaris 8, 9, and 10
  • Microsoft Windows 2003 (build 3790, or later)
  • 64-bit HP-UX 11iv1 and 11iv2
  • Linux distributions: Red Hat Enterprise Linux (RHEL) Version 4 and 5, Novell SUSE Linux Enterprise Server 9 (SLES 9), Novell SUSE
  • Linux Enterprise Server 10 (SLES 10), or Asianux 2.0


Please contact Midland Information Systems for questions regarding SCSI Controller Card/Host Bus Adapter compatibility for your environment.

Additional Available Features

  • FC 9703 - 2.5 Meter  VHDCI/HD68 SCSI Cable
  • FC 5602 - 2.5 Meter  VHDCI/HD68 SCSI Cable
  • FC 5604 - 4.5 Meter  VHDCI/HD68 SCSI Cable
  • FC 5610 - 10  Meter  VHDCI/HD68 SCSI Cable
  • FC 5620 - 20  Meter  VHDCI/HD68 SCSI Cablet
  • FC 5625 - 25  Meter  VHDCI/HD68 SCSI Cable
  • FC 7002 - Rack Mount Kit requires 2 E1A units in a standard 19 inch rack.
  • LTO3 Ultrium 400/800GB Tape Cartridge
  • LTO Ultrium Universal Cleaning Cartridge




Weight & Dimensions.

  • Width: Rack mount 17.6 in, stand-alone 17.6 in
  • Depth: Rack mount 29.13 in, stand-alone 31.9 in
  • Height: Rack mount 3.44 in, stand-alone 3.84 in
  • Maximum weight: 33 lb without rack mount, 45 lbs with rack mount
