IBM AS400 iSeries 6593-9406 IBM iSeries 4-Disk Slot Expansion The IBM 6593-9406 iSeries 4-Disk Slot Expansion provides an enclosure that can contain up to 4 Ultra.. Product #: 6593-9406

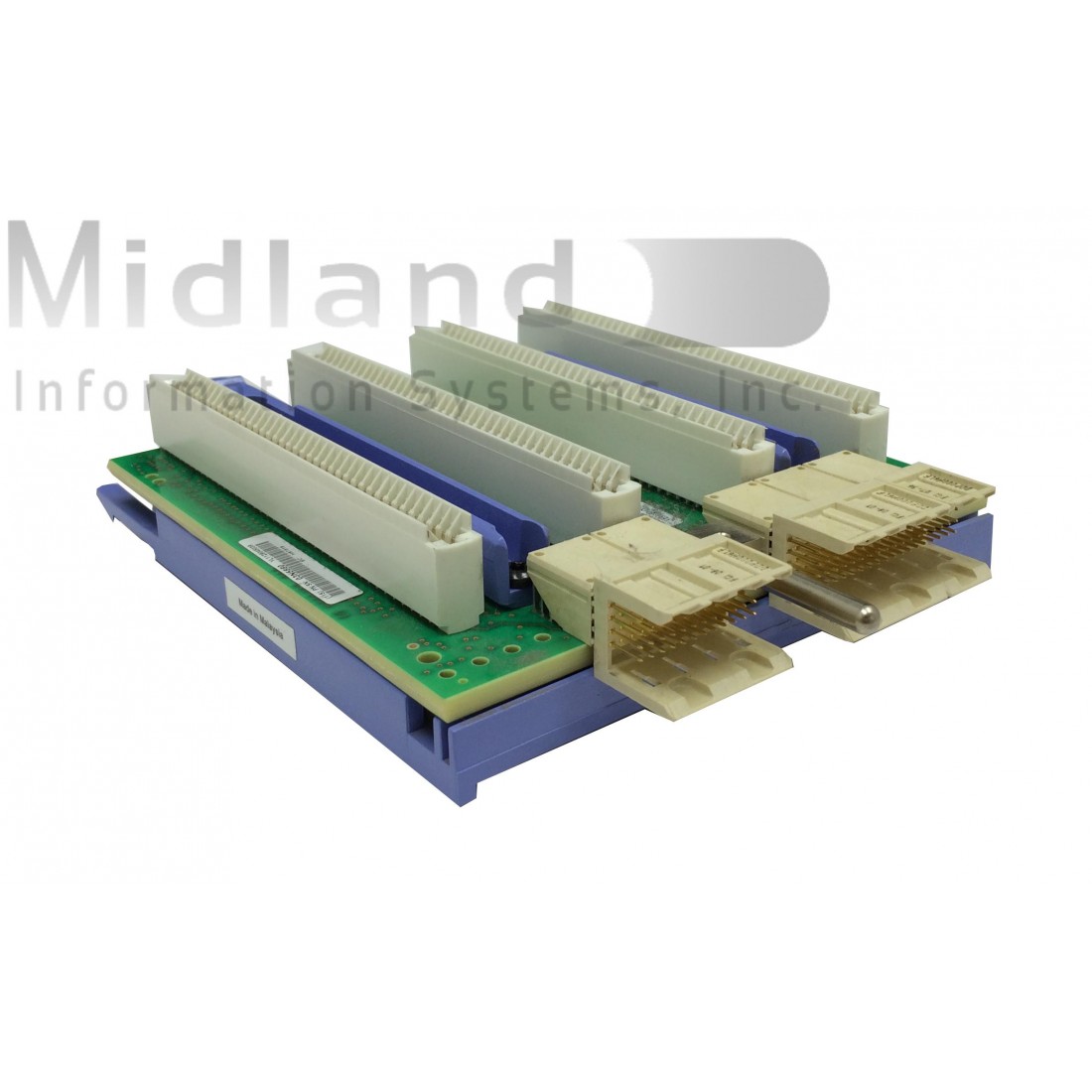

6593-9406 IBM iSeries 4-Disk Slot Expansion

Brand: IBM AS400 iSeries
Model Number: 6593-9406

The IBM 6593-9406 iSeries 4-Disk Slot Expansion provides an enclosure that can contain up to 4 Ultra320 SCSI disk drives for 9406 Systems. The IBM 6593 is driven by a disk controller in a PCI slot of the iSeries 9406 system unit, requiring either a 5715 PCI-X Tape/DASD Controller or 5703 PCI-X RAID Disk Unit Ctlr. The 6593 cannot be controlled by the integrated base disk controller or by a 5709 disk controller. The IBM 6593 repositions the SCSI cable connector so that a long card can be placed in card slot 4 of the iSeries and forces card slot 5 to be a short card. The 6593 can be used for disk mirroring protection.

When IBM 6593 is in a Power AIX system, it requires a 5712 PCI-X Dual Channel Ultra320 SCSI Adaptor, 5703 PCI-X Dual Channel Ultra320 SCSI RAID Adapter, 4267 or 4274 PCI-X adapter to hot-swap disk enclosure cable.

The IBM 6593 is only available in used/refurbished condition as of 2009.

6593 Required OS level:

iSeries V5R3 or later
AIX 5L or V5.2 or later
Red Hat Enterprise Linux AS for POWER V3 or later (Refer to http://www.ibm.com/servers/eserver/pseries/hardware/factsfeatures.html)
SUSE LINUX Enterprise Server 9 for POWER or later (Refer to http://www.ibm.com/servers/eserver/pseries/hardware/factsfeatures.html)
