IBM AS400 iSeries 5796-8203 - IBM Power6 E4A PCI-DDR 12X Expansion Drawer The IBM 5796 PCI-DDR 12X Expansion Unit Drawer for IBM Power7, Power6 and Power5 systems&n.. Product #: 5796-8203

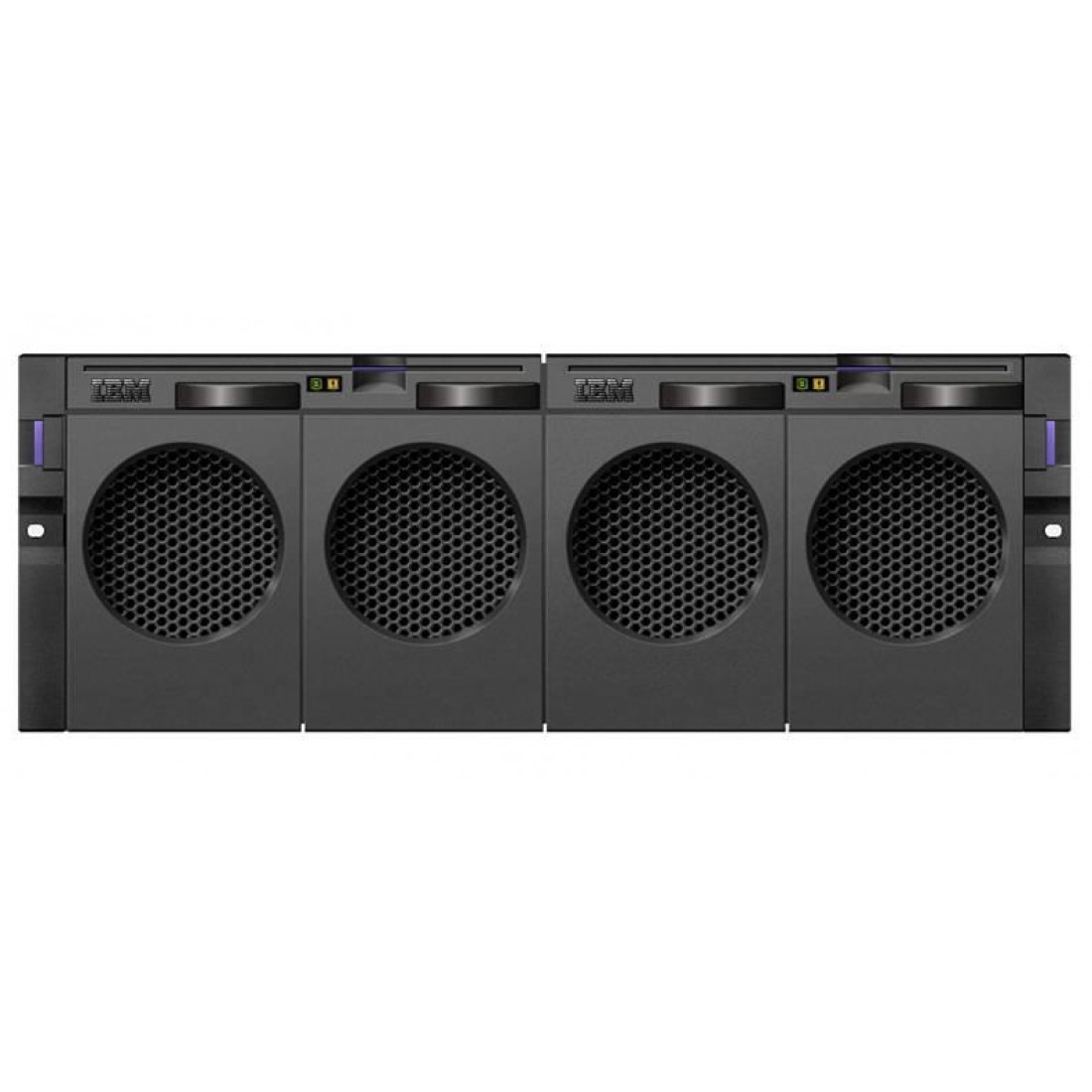

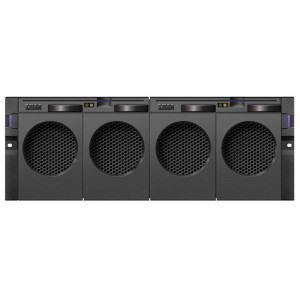

5796-8203 - IBM Power6 E4A PCI-DDR 12X Expansion Drawer

Brand: IBM AS400 iSeries
Model Number: 5796-8203

The IBM 5796 PCI-DDR 12X Expansion Unit Drawer for IBM Power7, Power6 and Power5 systems is an I/O expansion drawer providing 6 PCI-X DDR slots. The IBM 5796 Expansion Drawer includes redundant hot-swap power and cooling.The IBM 5796 Expansion Unit I/O drawer is attached to a system using a GX Dual Port 12X Channel Attach adpater in a 12X loop. Either a 12X Short Run adapter (6446) or 12X Long Run adapter (6457) must be selected on each IBM 5796. Up to 4 IBM 5796's can be attached on the same 12X loop using a mixture of Short Run and Long Run adapters. If you need assistance or have any questions about the installation or configuration, please contact our Support staff.

The IBM 5796 is Supported on the following Power Systems:  8202-E4B, 8202-E4C, 8202-E4D, 8205-E6B, 8205-E6C, 8205-E6D, 8233-E8B, 9117-MMB, 9117-MMC, 9117-MMD, 9179-MHB, 9179-MHC, 9179-MHD.

The blind swap PCI mechanism allows for PCI card concurrent maintenance without removing the I/O expansion drawer. The #5796 mounts in a 19-inch rack using a #7314 I/O Drawer Mounting Enclosure. Two #5796 drawers can be mounted side by side in a single #7314 using a total of four EIA. The #5796 are not required to be attached to the same system. Each #5796 requires two power cords. Blind swap cassettes are used to insert or remove the PCI-X cards.

When the IBM 5796 is placed in an iSeries partition, the PCI-X DDR slots support only smart IOAs and do not support an IOP or an IOA which requires an IOP.

The 5796 provides: 6 PCI-X DDR slots for blind swap I/O adapters

The 5796 requires: Rack space in a #7314 I/O Drawer Mounting Enclusure. 12X cable(s). 12X Short Run or Long Run card, and SPCN cable(s).

For the IBM Power6 8203-E4A, the maximum IBM 5796 Expansions is 8.

OS level required: IBM i V5R4 with V5R4M5 Machine Code, or later. AIX 5.3 with the 5300-07 Technology Level or later. AIX 6.1 or later. SUSE LINUX Enterprise Server 10 SP1 for POWER Systems, or later. Red Hat Enterprise LInux for POWER, version 4.5, or later. Red Hat Enterprise Linux for POWER, version 5.1, or later.
