5702-8203 - PCI-X Ultra Tape Controller
Brand:
IBM AS400 iSeries
Model Number:
5702-8203

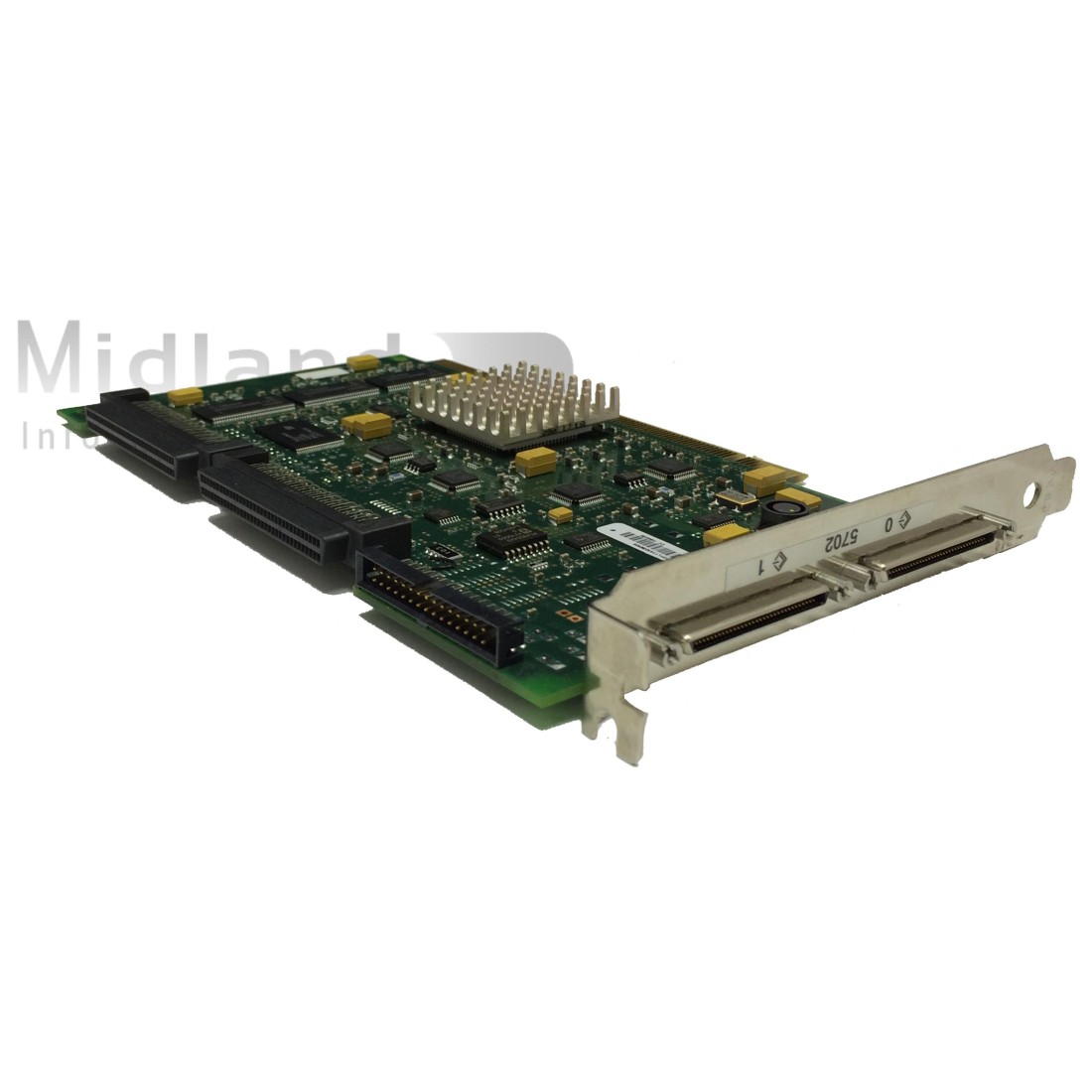

The IBM Power6 8203-E4A (#5702) PCI-X Ultra Tape Controller
#5702 provides two SCSI busses for PCI-X attachment of external tape devices and external removable media devices. #5702 has two ports with VHDCI connectors.
Attributes provided: Two SCSI VHDCI ports
Attributes required: One PCI or PCI-X slot
For 8203-E4A: The IBM Power6 8203-E4A (#5702)
Minimum required: 0
Maximum allowed: 36 (Initial order maximum: 0)
OS level required: IBM i V5R4 with V5R4M5 Machine Code, or later.
Initial Order/MES/Both/Supported: Supported
CSU: Yes
Return parts MES: Does not apply
Note: Not supported in CEC. System maximum of 36 under IBM i. Not supported under AIX or Linux.
