5646-8203 - Blind Swap Type III Cassette-PCIe, Short Slot
5623-8203 - Dual Port 1Gb Integrated Virtual Ethernet Daughter C
IBM AS400 iSeries 5624-8203 - 4-Port 1Gb Integrated Virtual Ethernet Daughter Card The IBM Power6 8203-E4A (#5624) 4-Port 1Gb Integrated Virtual Ethernet Daughter CardIntegrated I/O c.. Product #: 5624-8203

5624-8203 - 4-Port 1Gb Integrated Virtual Ethernet Daughter Card

Brand: IBM AS400 iSeries
Model Number: 5624-8203

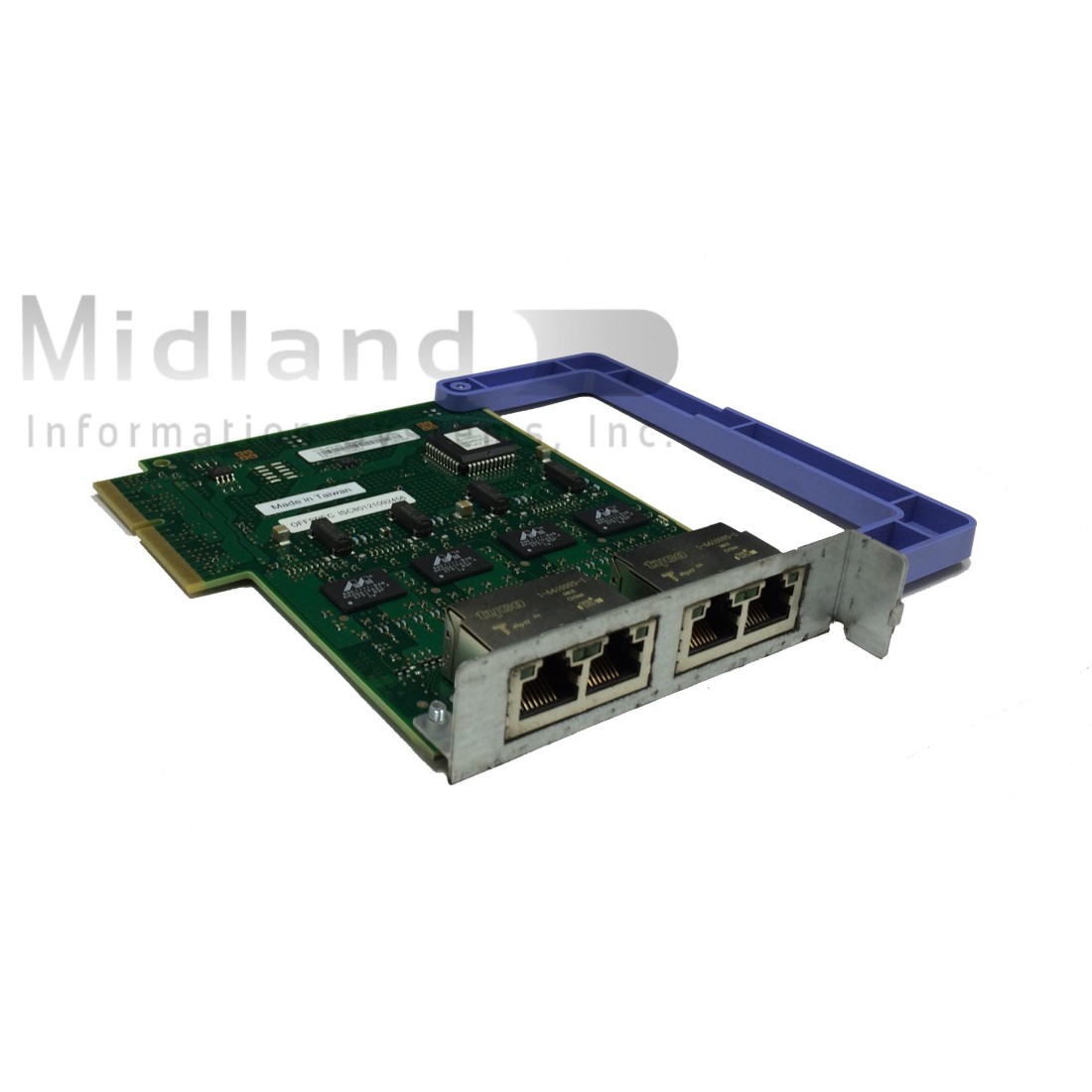

The IBM Power6 8203-E4A (#5624) 4-Port 1Gb Integrated Virtual Ethernet Daughter Card

Integrated I/O connectors for a CEC enclosure. Provides four 1 Gb Short Range Ethernet connections (RJ-45) that can be Virtualized into the system LPARs. All of the connectors are on the rear bulkhead of the CEC enclosure.

One of the features #5623, #5613 and #5624 may be mixed in multi enclosure systems

Attributes provided: Four 1Gb Integrated Virtual Ethernet Connections

Attributes required: None

For 8203-E4A: The IBM Power6 8203-E4A (#5624)

Minimum required: 0

Maximum allowed: 1 (Initial order maximum: 1)

OS level required: AIX 5.3 with the 5300-07 Technology Level or later. AIX 6.1 or later. IBM i V5R4 with V5R4M5 machine code, or later. SUSE Linux Enterprise Server 10 SP1 for POWER Systems, or later. Red Hat Enterprise Linux for POWER, version 4.5, or later. Red Hat Enterprise Linux for POWER, version 5.1, or later.

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
