IBM AS400 iSeries 3693-8203 - IBM Power6 E4A SAS Cable (YO-8203) Adapter to SAS E The IBM Power6 8203-E4A (#3693) SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path.. Product #: 3693-8203

3693-8203 - IBM Power6 E4A SAS Cable (YO-8203) Adapter to SAS E

Brand: IBM AS400 iSeries
Model Number: 3693-8203

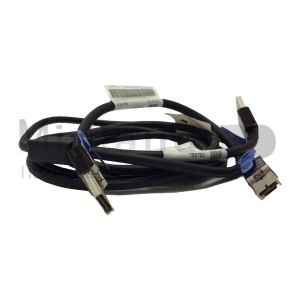

The IBM Power6 8203-E4A (#3693) SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 6M

This SAS cable (YO) connects a remote SAS drawer to a SAS controller adapter. This cable supports single controller/dual path attach between the SAS controller adapter and the SAS disk drawer. This cable has one Mini SAS 4X plug connector on the adapter end keyed for an END DEVICE, wired in 4x mode and two Mini SAS 4X plug connectors on the drawer end keyed for ENCLOSURE DOWN Arrow, both are wired in 2x mode. Follow the directions on the connector labels when attaching the connectors on this cable. This cable is 6 meters long, choose the SAS (YO) cable length that matches the distance between the adapter and the SAS disk drawer.

Attributes provided: connection between SAS controller adapter and a SAS disk drawer

Attributes required: SAS controller adapter and a SAS disk drawer

For 8203-E4A: The IBM Power6 8203-E4A (#3693)

Minimum required: 0

Maximum allowed: No max (Initial order maximum: No max)

OS level required: None

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
