3691-8202 - IBM Power7 E4B, SAS Cable (YO) Adapter to SAS Enclos

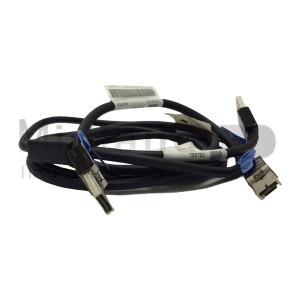

IBM Power7 8202-E4B (#3691) SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 1.5 M
This SAS cable (YO) connects a remote SAS drawer to a SAS controller adapter. This cable supports single controller/dual path attach between the SAS controller adapter and the SAS disk drawer. This cable has one Mini SAS 4X plug connector on the adapter end keyed for an END DEVICE, wired in 4x mode and two Mini SAS 4X plug connectors on the drawer end keyed for ENCLOSURE DOWN Arrow, both are wired in 2x mode. Follow the directions on the connector labels when attaching the connectors on this cable. This cable is 1.5 meters long, choose the SAS (YO) cable length that matches the distance between the adapter and the SAS disk drawer.
Attributes provided: connection between SAS controller adapter and a SAS disk drawer
Attributes required: none
For 8202-E4B: (#3691)
Minimum required: 0
Maximum allowed: 9999 (Initial order maximum: 250)
OS level required: None
Initial Order/MES/Both/Supported: Both
CSU: Yes
Return parts MES: No
