3687-8203 - IBM Power6 E4A SAS Cable (YI-8203) System to SAS En

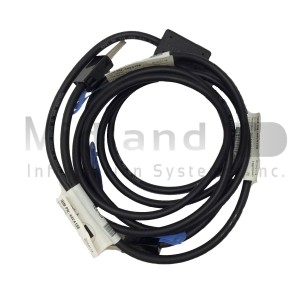

The IBM Power6 8203-E4A (#3687) SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 3M

This SAS cable (YI) connects a single remote SAS drawer to a host system that contains an integrated SAS controller connection. There are a limited number of Power System severs that can support this configuration. This cable supports single controller/dual path attach between the SAS controller and the SAS disk drawer. This cable has one Mini SAS 4X plug connector on the host end keyed as ENCLOSURE UP Arrow, wired in 4x mode and two Mini SAS 4X plug connector on the drawer end keyed as ENCLOSURE UP Arrow both wired in 2x mode. Follow the directions on the connector labels when attaching the connectors on this cable. This cable is 3 meters long, choose the SAS (YI) cable length that matches the distance between the host system and the SAS disk drawer.

Attributes provided: Connection between host system native SAS connector and a remote SAS drawer

Attributes required: Host system with native SAS connector

For 8203-E4A: The IBM Power6 8203-E4A (#3687)

Minimum required: 0

Maximum allowed: No max (Initial order maximum: No max)

OS level required: None

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
