3685-8202 - IBM Power7 E4B, SAS Cable (AE) Adapter to Enclosure,

IBM Power7 8202-E4B (#3685) SAS Cable (AE) Adapter to Enclosure, single controller/single path 6M

This adapter-to-enclosure (AE) SAS cable most commonly connects a SAS controller to a media expansion drawer.

For the AIX and Linux operating systems, this cable can also be used to connect two SAS adapters to a SAS disk drawer in a specific dual controller HA two system JBOD configuration using two #5912 controllers. Single controller/single path connections are supported with this cable only for this specific JBOD configuration, and, as such, two #5912 SAS controllers and two (AE style) cables are required for a supported configuration. The two SAS adapters must be in different host systems/partitions.

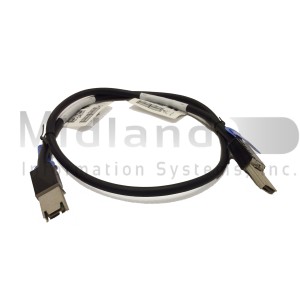

This cable has one mini SAS 4X plug connector on the adapter end wired in 4x mode and one mini SAS 4X plug connector on the drawer end, wired in 4x mode. Follow the directions on the connector labels when attaching the connectors on this cable. This cable is three meters long. Select the SAS (AE) cable length that best matches the distance between the host system and the remote SAS drawer being attached.

Attributes provided: Connection between a SAS controller and a media expansion drawer or for AIX and Linux connection between #5912 SAS controller and a SAS disk drawer in a dual controller HA two system JBOD configuration only

Attributes required: none

For 8202-E4B: (#3685)

Minimum required: 0

Maximum allowed: 9999 (Initial order maximum: 250)

OS level required: None

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
