3654-8202 - IBM Power7 E4B, SAS Cable (EE) Drawer to Drawer 6M

IBM Power7 8202-E4B (#3654) - SAS Cable (EE) Drawer to Drawer 6M

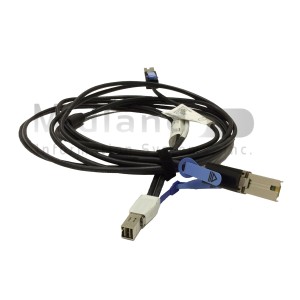

SAS Cable (EE), connects a second SAS disk drawer to a primary SAS disk drawer attached to a SAS controller adapter. This cable has one Mini SAS 4x cable plug connector on each end. Both connectors must be attached to an ENCLOSURE UP Arrow port on the ESM module of the attaching drawers. Follow the directions on the connector labels when attaching the connectors on this cable. This cable supports both Single and Dual path configurations. All supported configurations require two of this feature to attach a secondary disk drawer to the primary disk drawer. The length of this cable is 6 meter. Choose the SAS (EE) cable length to match the distance between the two SAS drawers.

Attributes provided: SAS Disk drawer to SAS Disk drawer attach cable

Attributes required: none

For 8202-E4B: (#3654)

Minimum required: 0

Maximum allowed: 9999 (Initial order maximum: 250)

OS level required: None

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
