IBM AS400 iSeries #3451 - IBM POWER8 SAS YO Cable 3m - HD 6Gb Adapter to Enclosure (#3451) - SAS YO Cable 3m - HD 6Gb Adapter to Enclosure This 6 meter SAS cable connects a SAS ada.. Product #: 3451

#3451 - IBM POWER8 SAS YO Cable 3m - HD 6Gb Adapter to Enclosure

Brand: IBM AS400 iSeries
Model Number: 3451

(#3451) - SAS YO Cable 3m - HD 6Gb Adapter to Enclosure

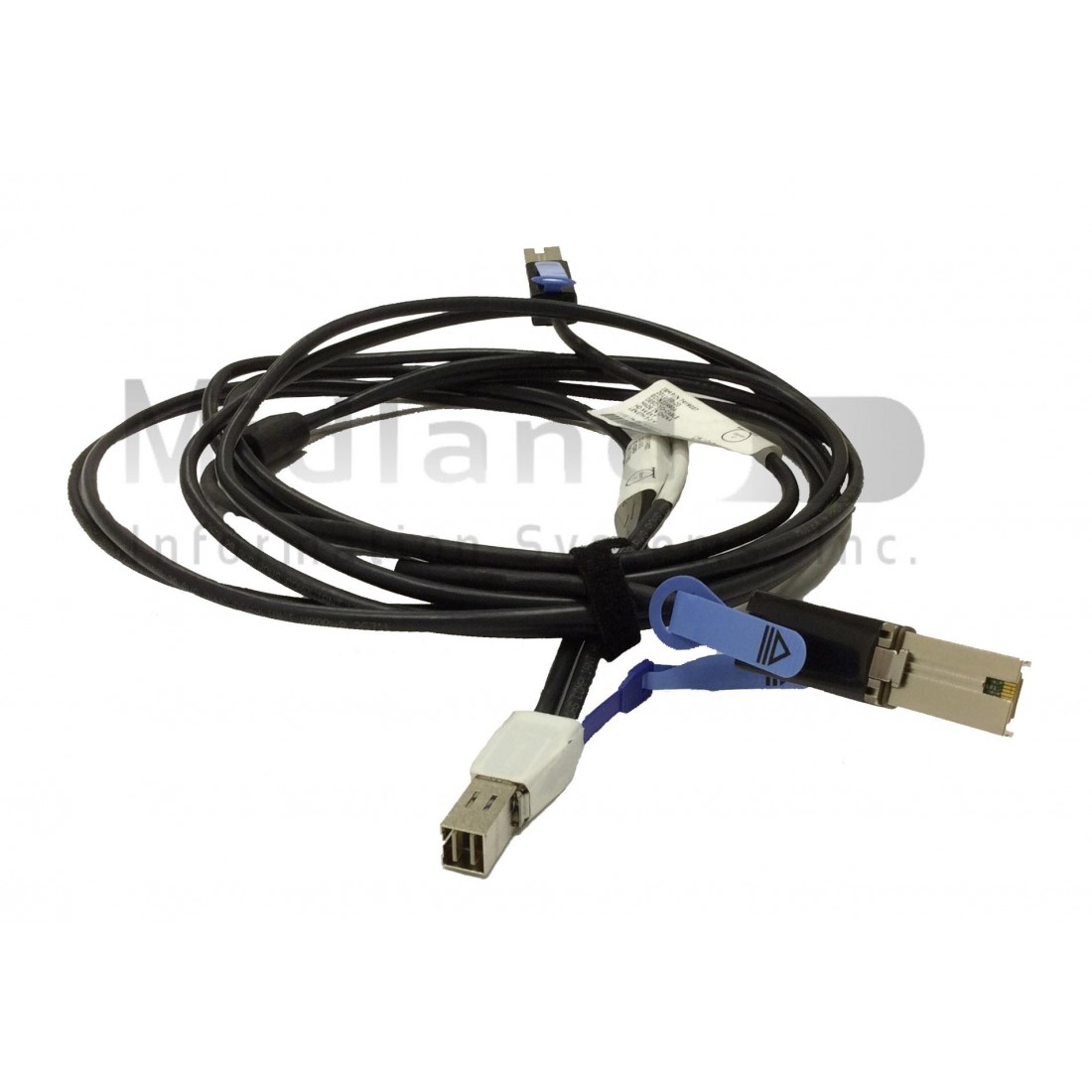

This 6 meter SAS cable connects a SAS adapter to a SAS I/O enclosure. This YO cable has three connectors, one Mini-SAS HD (High Density)connector and two Mini SAS connectors. The Mini-SAS HD connector attaches to a SAS adapter such as the #5913 1.8GB RAID SAS Adapter. Both Mini SAS connectors attach to the same I/O drawer (enclosure) such as a #5887 EXP24S SAS I/O drawer. This cable can support up to 6Gb throughput.

Multiple cable length feature codes are available. Choose the cable length that best matches the distance between the adapter and the SAS I/O drawer.

  • Attributes provided: connection between SAS adapter with Mini-SAS HD connectors and a SAS I/O drawer with Mini SAS connectors
  • Attributes required: available connectors on SAS controller and SAS I/O drawer
  • For 9119-MME: (#3451)
    • Minimum required: 0
    • Maximum allowed: 9999 (Initial order maximum: 250)
    • OS level required: None
    • Initial Order/MES/Both/Supported: Both
    • CSU: Yes
    • Return parts MES: No
    •
    •
