2849-8204 - IBM i Model E8A POWER GXT135P Graphics Accelerator w
4801-8204 - IBM i Model E8A PCI Crypto Coprocessor
IBM AS400 iSeries 2847-8204 - IBM i Model E8A PCI IOP for SAN Load Source IBM i Power 6, 8204 (#2847) PCI IOP for SAN Load Source(Refurbished Condition Only as of July 30, 20.. Product #: 2847-8204

2847-8204 - IBM i Model E8A PCI IOP for SAN Load Source

Brand: IBM AS400 iSeries
Model Number: 2847-8204

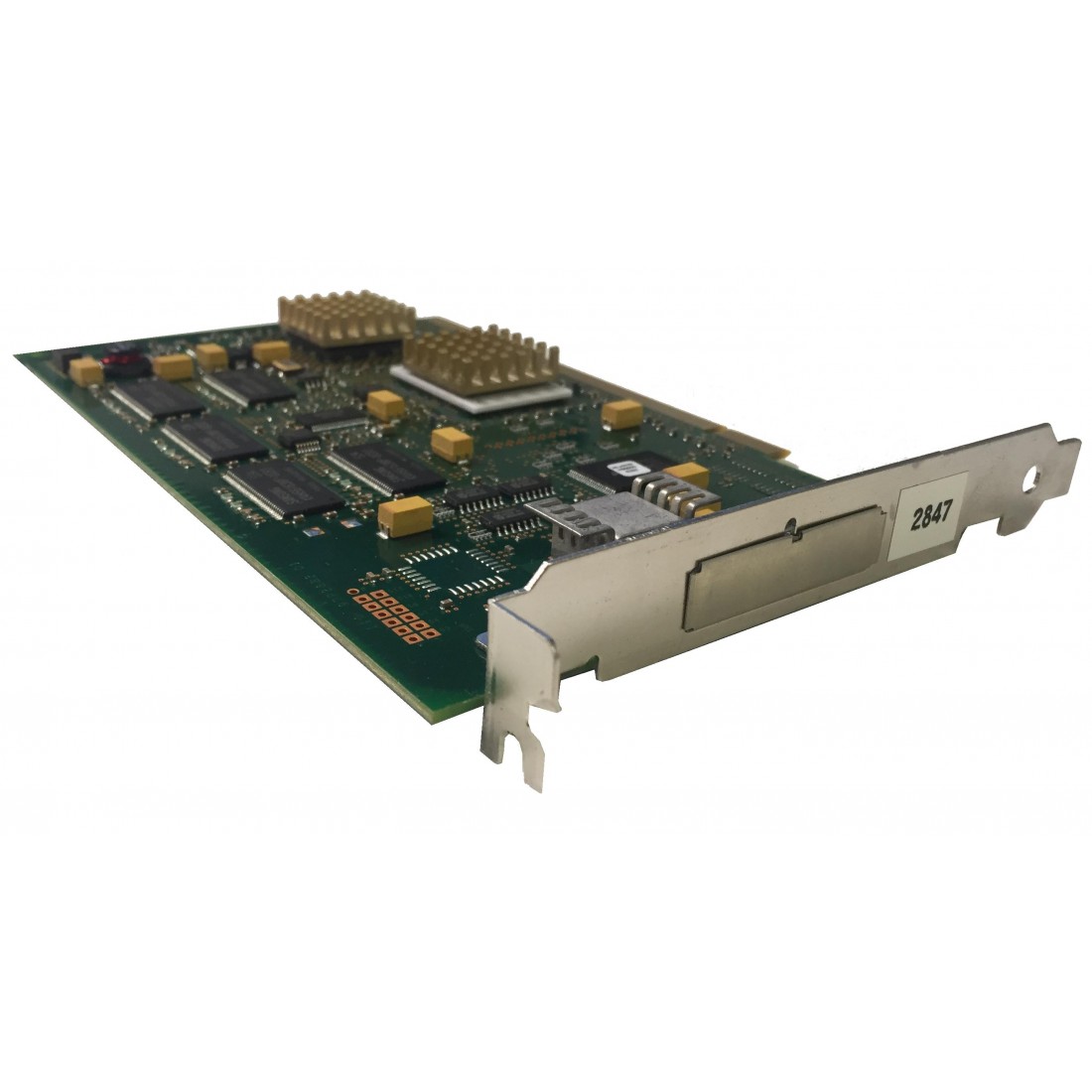

IBM i Power 6, 8204 (#2847) PCI IOP for SAN Load Source

(Refurbished Condition Only as of July 30, 2010)

Provides the specialized function required to attach IBM i operating system load source via a fibre channel adapter and boot from that load source. With IBM i 6.1, #2847 PCI IOP for SAN Load Source supports multipath for the i5/OS load source disk unit, along with supporting multipath for all other logical units (LUNs) attached to this IOP. A minimum of two IOPs are required for enabling redundancy. See the Redbook, "iSeries and TotalStorage: A Guide to Implementing external disk on IBM eServer i5 -SG24-7120", for more information.

Attributes provided: Load source support via fiber channel.

Attributes required: #0531 V5R3M5 Machine Code or later

For 8204-E8A: IBM i Power 6, 8204 (#2847)

Minimum required: 0

Maximum allowed: 72 (Initial order maximum: 72)

OS level required: IBM i V5R4 with V5R4M5 Machine Code, or later.

Initial Order/MES/Both/Supported: Both

CSU: Yes

Return parts MES: No
